Purpose & Primary Use

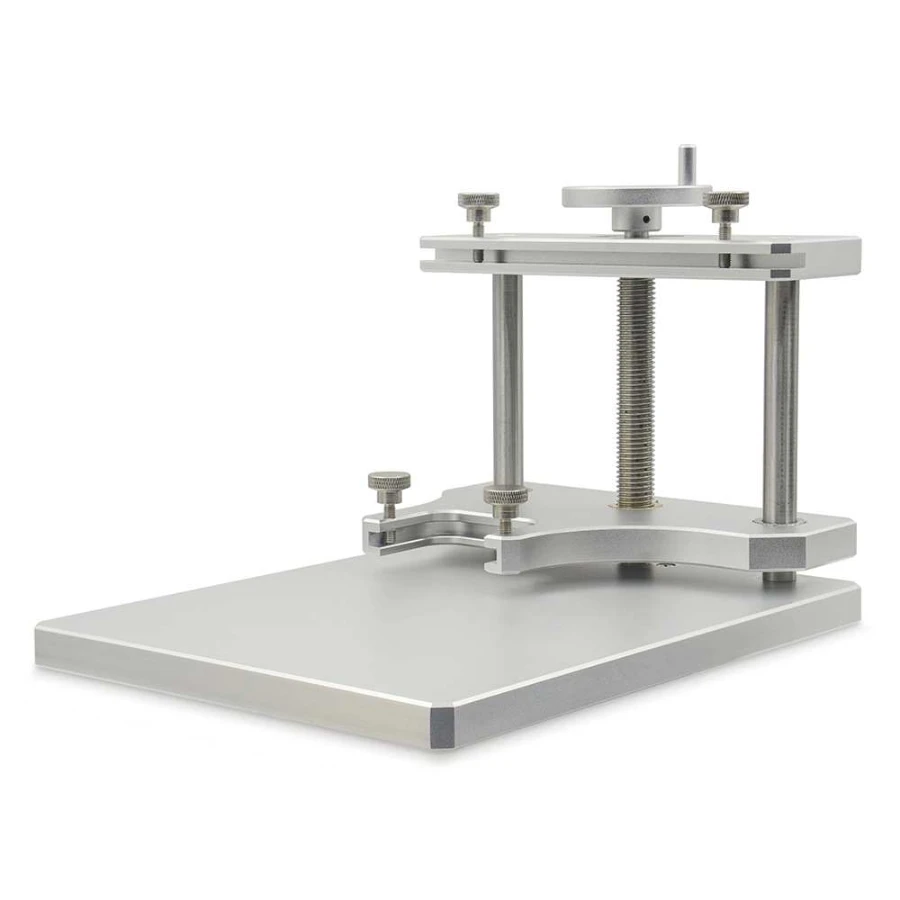

The primary function of this frame is to provide a stable, hands-free interface between a tuning tool and an opened ECU. It is used for specialized "Bench" or "Boot" mode operations where technicians must access the circuit board directly to read or write firmware.

Key Professional Applications

• Safe ECU Remapping: Facilitates engine control unit updates and modifications (ECM tuning) without the risk of shaky manual connections.

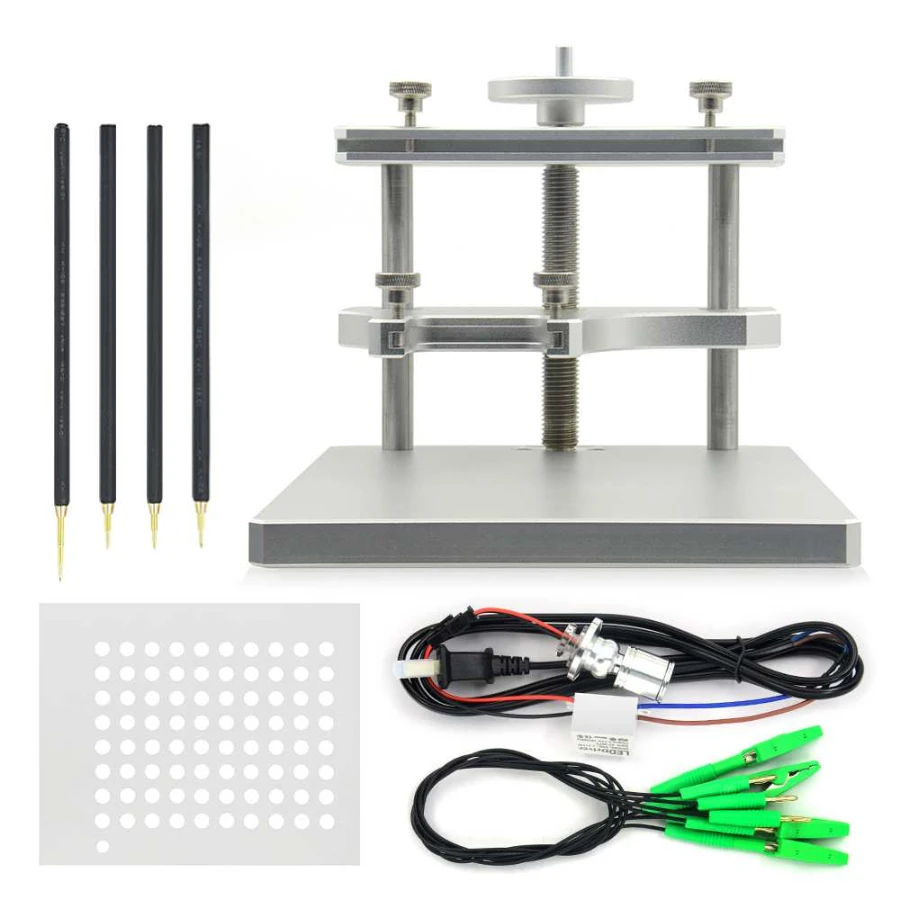

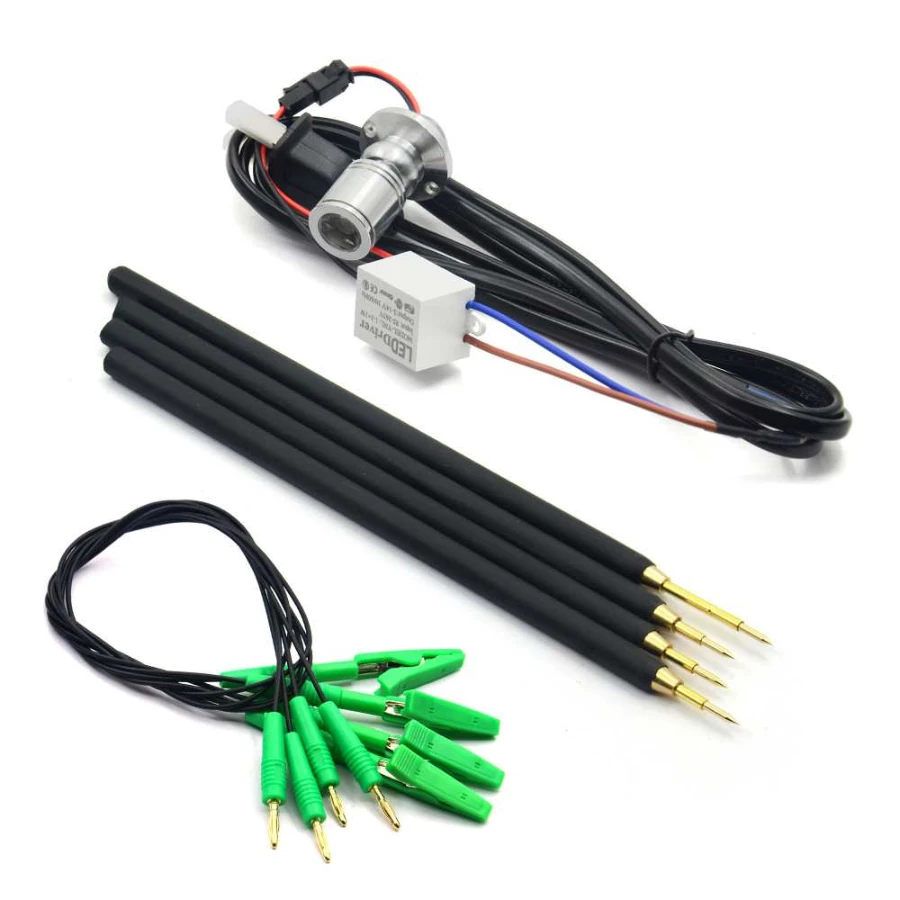

• Soldering-Free Programming: The included 4 spring-loaded probe pens allow for precise contact with tiny BDM test points on the circuit board, eliminating the need to solder wires directly to sensitive components.

• Firmware Cloning & Recovery: Ideal for backing up ECU data or restoring a "bricked" unit where the OBD port is no longer accessible.

• Component Identification: The high-strength steel frame features a built-in LED lighting system (12V) that illuminates the board, making it easier to identify small chips and serial numbers in a dark workshop environment.

Comprehensive Hardware Compatibility

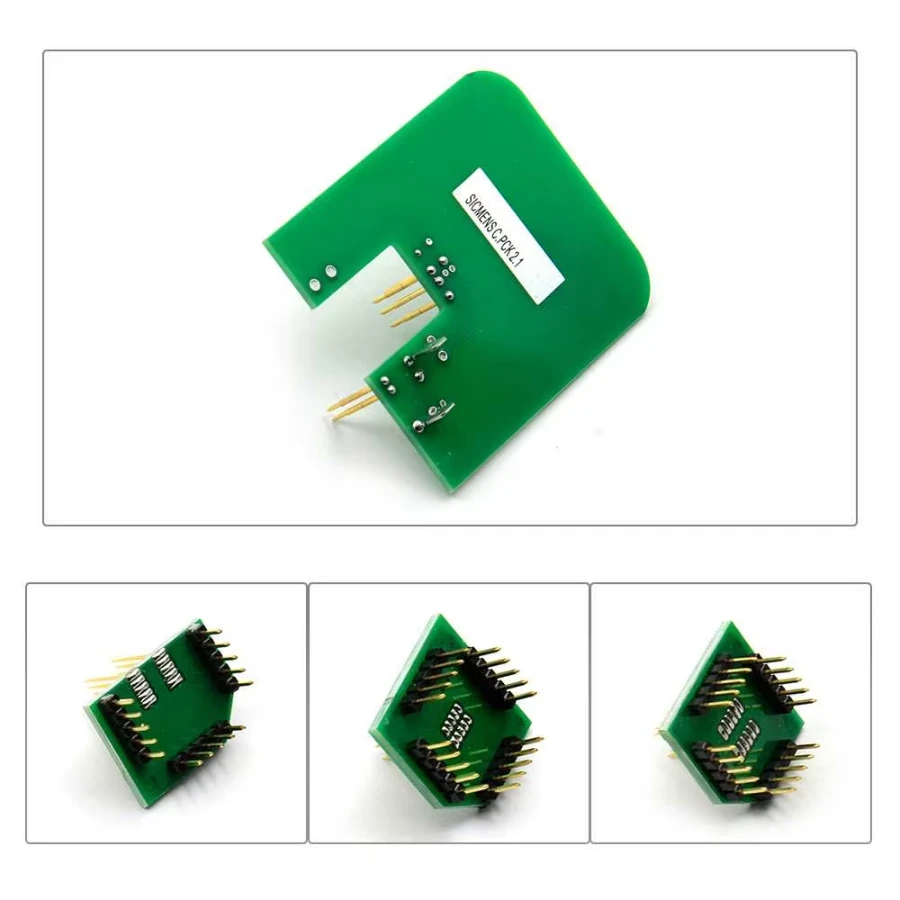

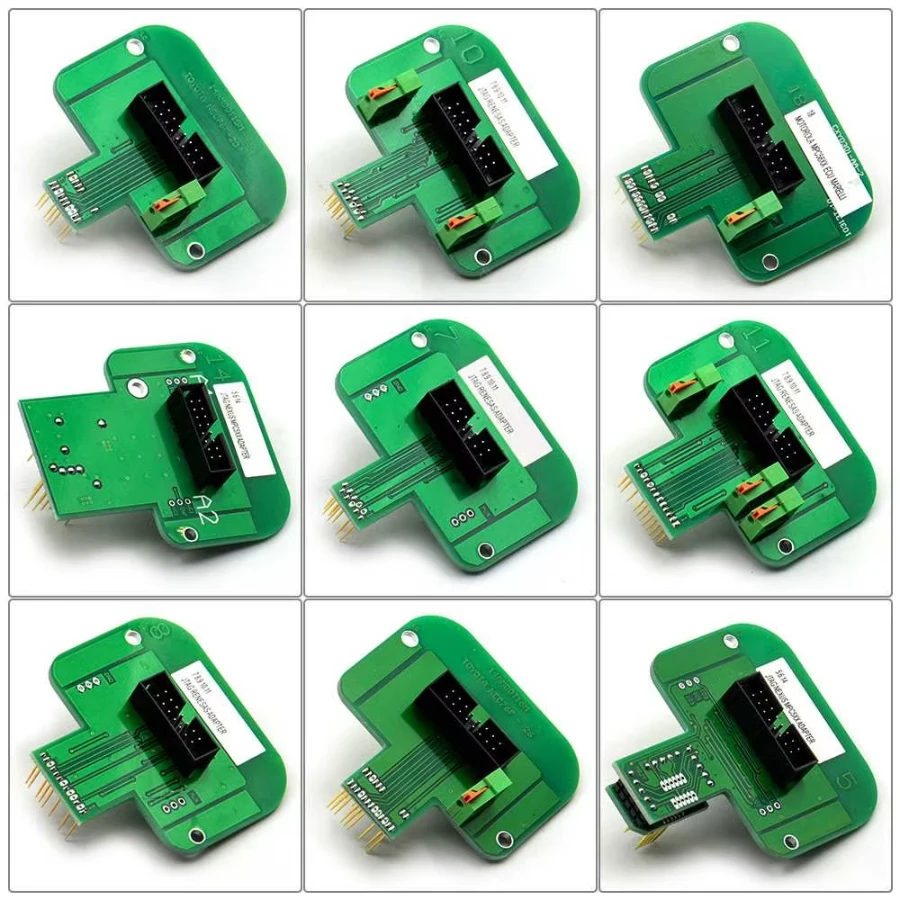

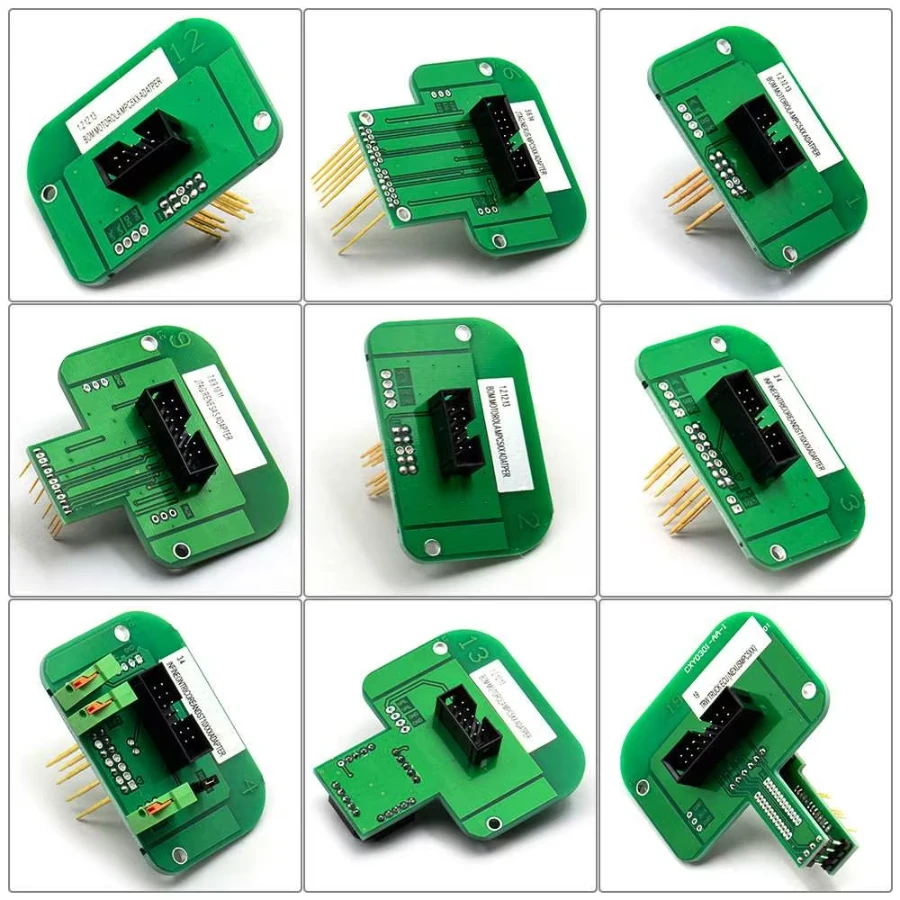

• Universal 22-Adapter Set: Includes a full set of precision-machined adapters (60mm width) designed for major ECU brands such as Bosch, Marelli, Delphi, and Siemens.

• Multi-Tool Support: Seamlessly integrates with mainstream tuning devices including KESS V2, KTAG V7.020, KTM100, BDM100, and Dimsport Trasdata.

• Adjustable Precision: Each of the 4 probe pens is fully adjustable, allowing technicians to reach specific pins on differently sized PCBs (Printed Circuit Boards).

Technical Highlights

• Durable Construction: Built from premium stainless steel and acrylic, offering a heat-resistant and stable platform that won't lose alignment over time.

• Standardized Dimensions: Designed with a 60mm adapter track to fit original and high-quality BDM probes.

• Safe Operation: Features electrical shielding and stable grounding to ensure data integrity during extended programming sessions.
