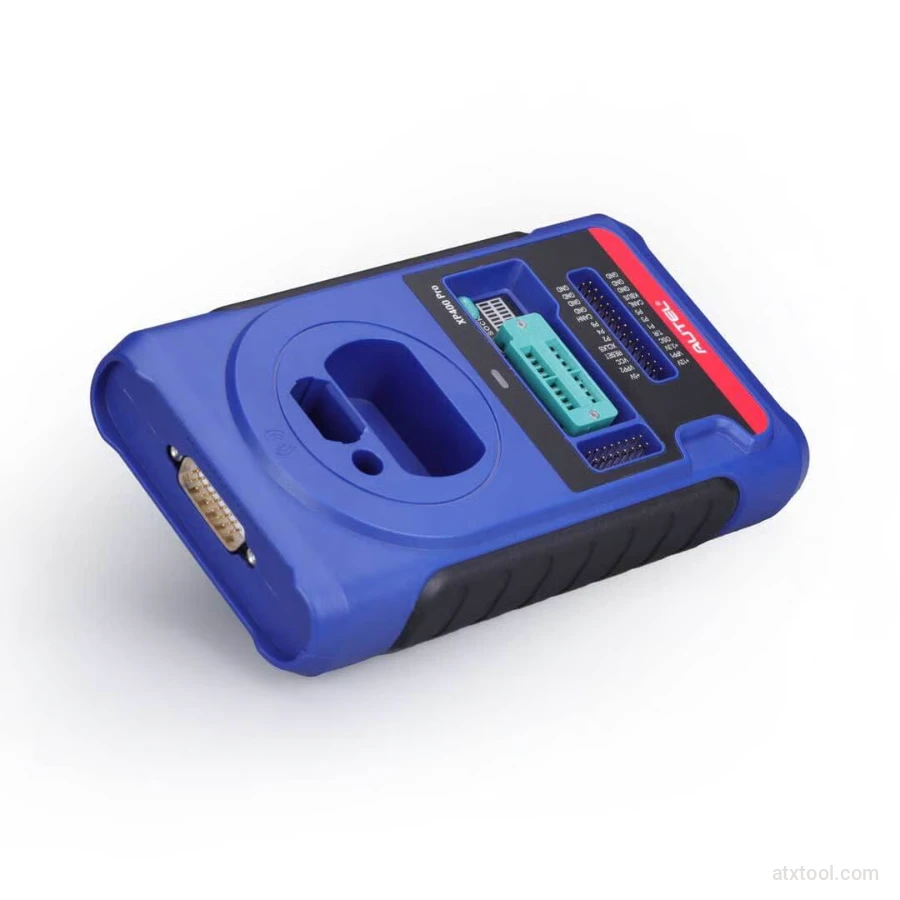

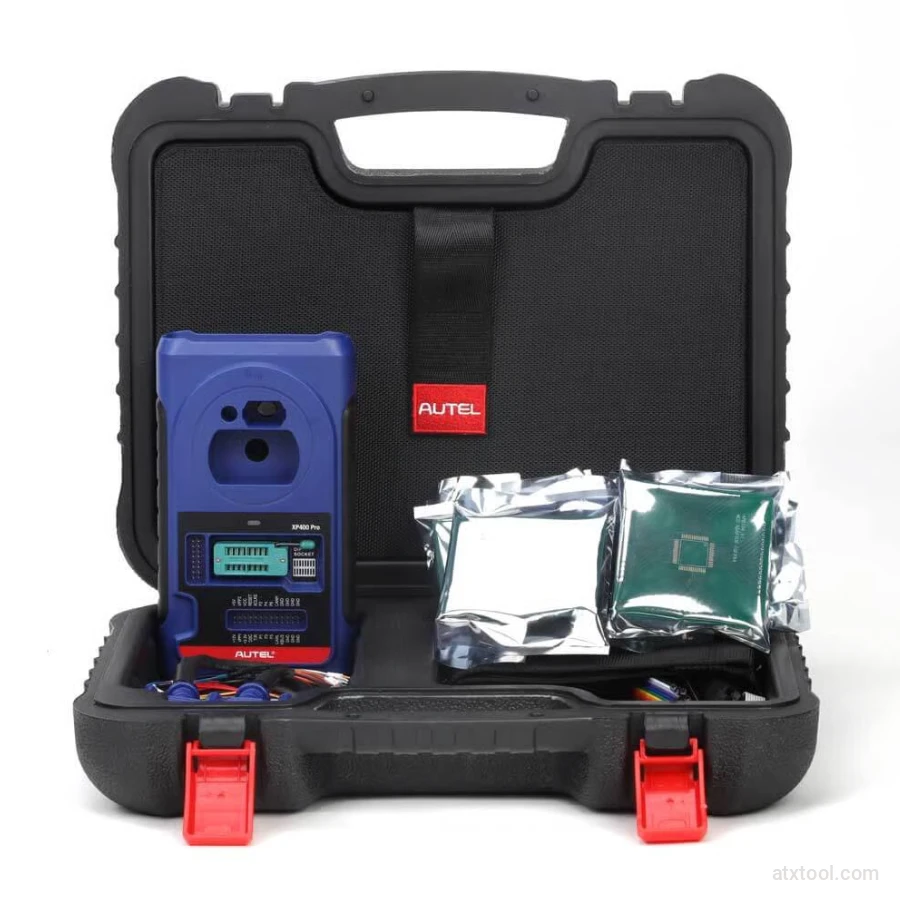

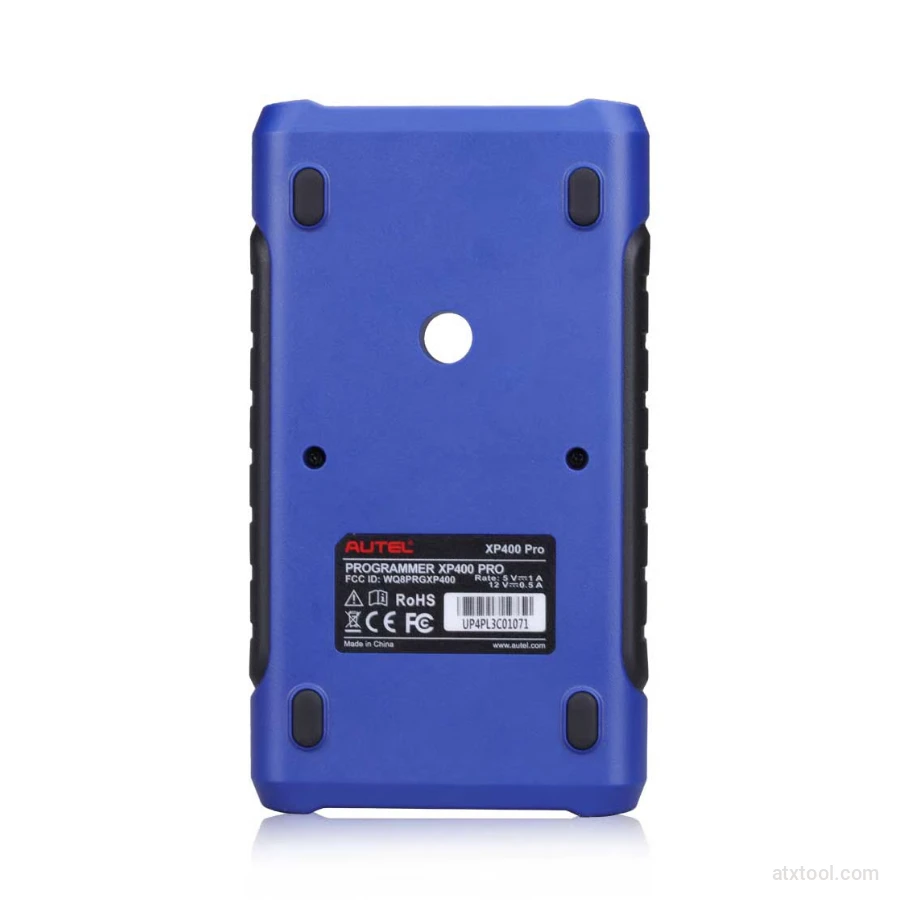

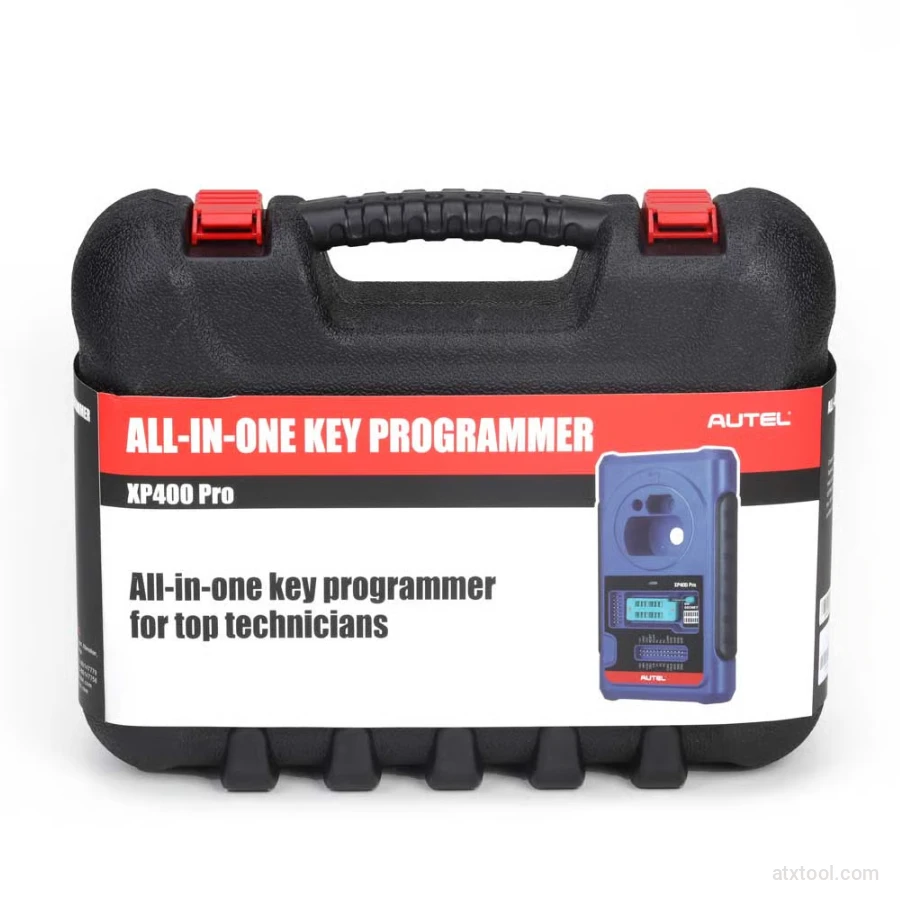

The Autel XP400 PRO is an advanced, all-in-one key and chip programmer designed to work as a powerful hardware extension for the Autel MaxiIM series, including the IM508, IM508S, IM608, and IM608 PRO II. It is specifically engineered to read, write, and learn vehicle keys, including advanced infrared keys for Mercedes-Benz and IC chips on late-model Hyundai and KIA vehicles.

Key Product Highlights

• Advanced Key Programming: Supports reading and writing of key data, transponder data, and infrared keys for high-end vehicle brands.

• Expanded Chip Support: Adds support for over 11 types of adapter boards and over 2,500 types of components, including EEPROM, MCU, and ECU read/write functions.

• Enhanced Compatibility: Works seamlessly with the IM508S and IM608 PRO II to perform the most complex IMMO tasks.

• Mercedes-Benz Specialized: Optimized for Mercedes-Benz infrared key reading and writing, as well as remote frequency detection.

• Professional Data Access: Provides expert-level access to read, write, and erase data for various vehicle modules, including instrument clusters and airbags.

Core Functions and Features

• Transponder Programming: Capable of detecting, reading, and writing transponder data and key chips for a wide range of vehicles.

• Remote Frequency Detection: Supports detection of remote control frequencies to ensure proper programming and functionality.

• EEPROM/MCU Data Extraction: Allows for the extraction and repair of data from encrypted automotive chips found in modern vehicle ECUs.

• IMMO ECU Operations: Supports critical maintenance tasks such as IMMO ECU reset, adaptation, refresh, and coding.

• Specialized Adapter Support: Compatible with a wide range of professional adapters, including APB113 (PCF79XX), APB114 (EWS3), and APB118 (NEC ELV).

Technical Specifications

• Connectivity: Connects via high-speed USB to the MaxiIM tablet or a PC for stable data transmission.

• Memory Device Support: Features extensive read/write support for specialized memory devices like M35080/D80 and various AM29FXXX series adapter boards.

• MQB System Coverage: Supports specialized chip models, including D70F3532 and D70F3525, required for VAG MQB systems.

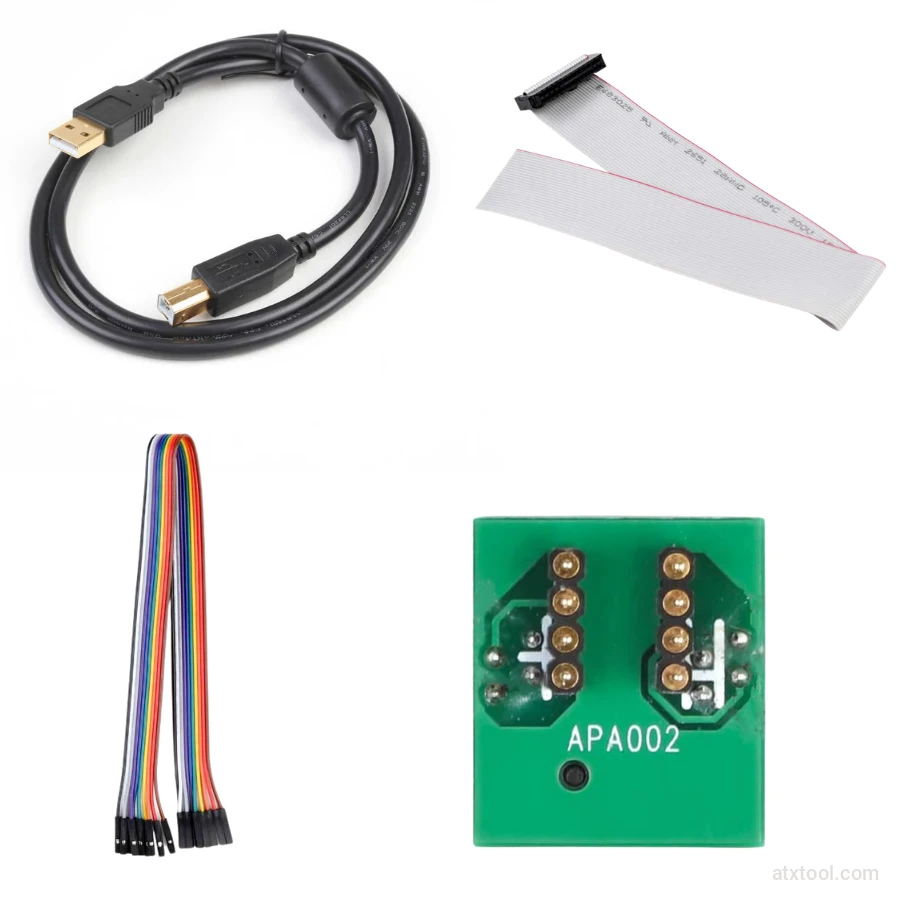

Included Adapter Support

The XP400 PRO package includes support for several specialized adapter boards, such as:

• APB113: PCF79XX adapter board.

• APB114: EWS3 adapter board.

• APB115: NEC Adapter board.

• APB118: NEC ELV adapter board.

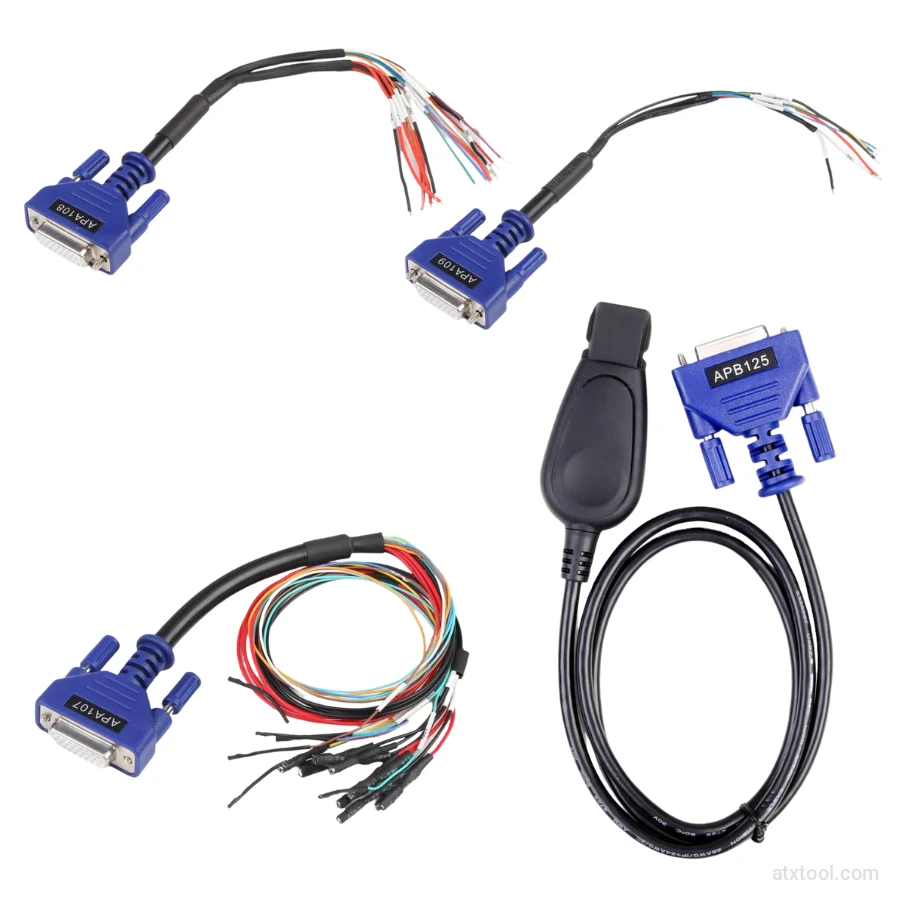

• APB125: Mercedes Infrared Collector.

• APB126: M35080/D80 adapter board.
