The JTAG Power Box is a specialized hardware interface designed to facilitate stable "on-the-bench" and "boot mode" programming for vehicle Electronic Control Units (ECUs). It acts as a bridge between the ECU and J2534 passthrough devices (like Openport 2.0, Scanmatik 2 PRO, or KTAG), providing the necessary power and signal management to read and write firmware safely.

This Full Kit version is essential for technicians who need to bypass standard OBDII limitations to perform ECU cloning, remapping, or data recovery. It features built-in protection against current spikes and is equipped with multi-mode switches for manual or automatic control of BOOT and RESET signals.

Checkable Modules & Functionality Details

The JTAG Power Box is used to interface with the following specialized modules:

• Engine Control Units (ECUs):

  • Read/Write Operations: Allows full access to the ECU's internal memory (Flash and EEPROM) for performance tuning or cloning.

  • Password Reading: Specifically designed to extract security passwords from encrypted ECUs (such as Bosch ME17/EDC17) before data can be accessed.

  • Boot Mode Programming: Supports BOOT-OEM12 and L-Line protocols for deep-level firmware repairs.

• Processor Families (MCU):

  • Tricore with GPT: Optimized for modern Infineon Tricore processors, including GPT1 and GPT2 signals required for high-security ECUs.

  • Renesas CPUs: Provides specialized power and signal shaping for reprogramming Renesas microcontrollers.

  • ST10 & C16X Families: Built-in current limiting resistors are optimized for safe communication with these older but common processor types.

• Transmission Control Units (TCU):

  • While often used with "Flash" tools, it can provide the power and communication bridge for reading and writing gearbox data in bench mode.

Full Kit & Hardware Specifications

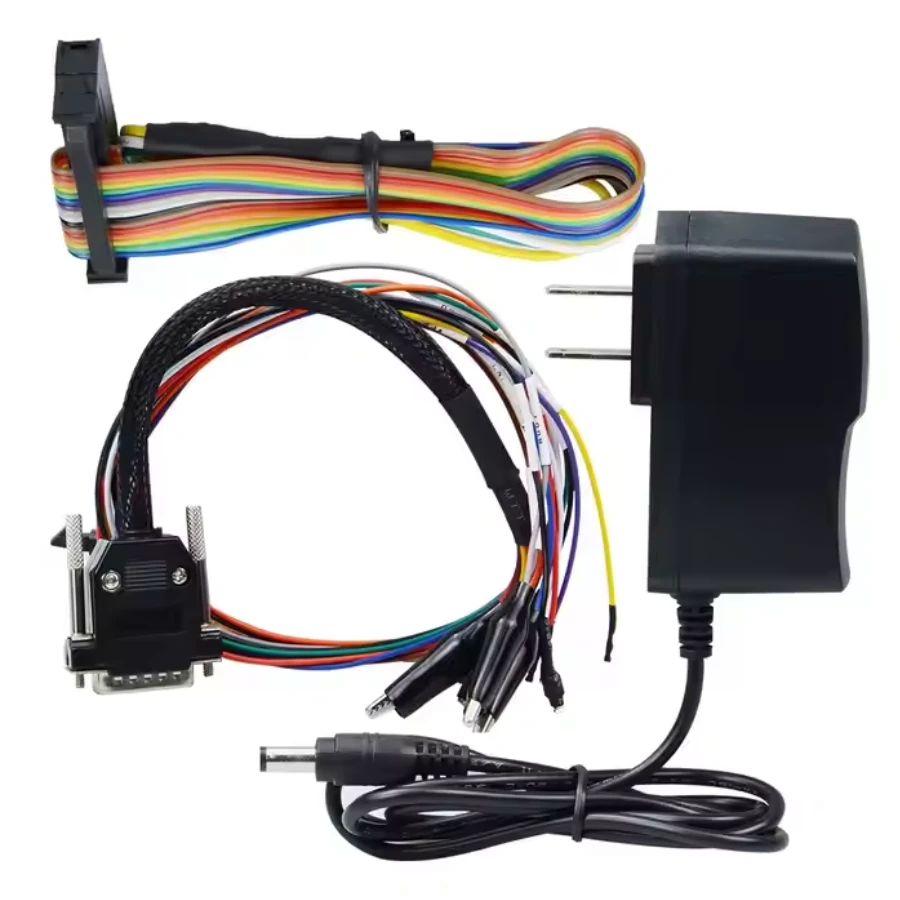

The Full Kit includes all necessary cables and adapters for universal bench connectivity:

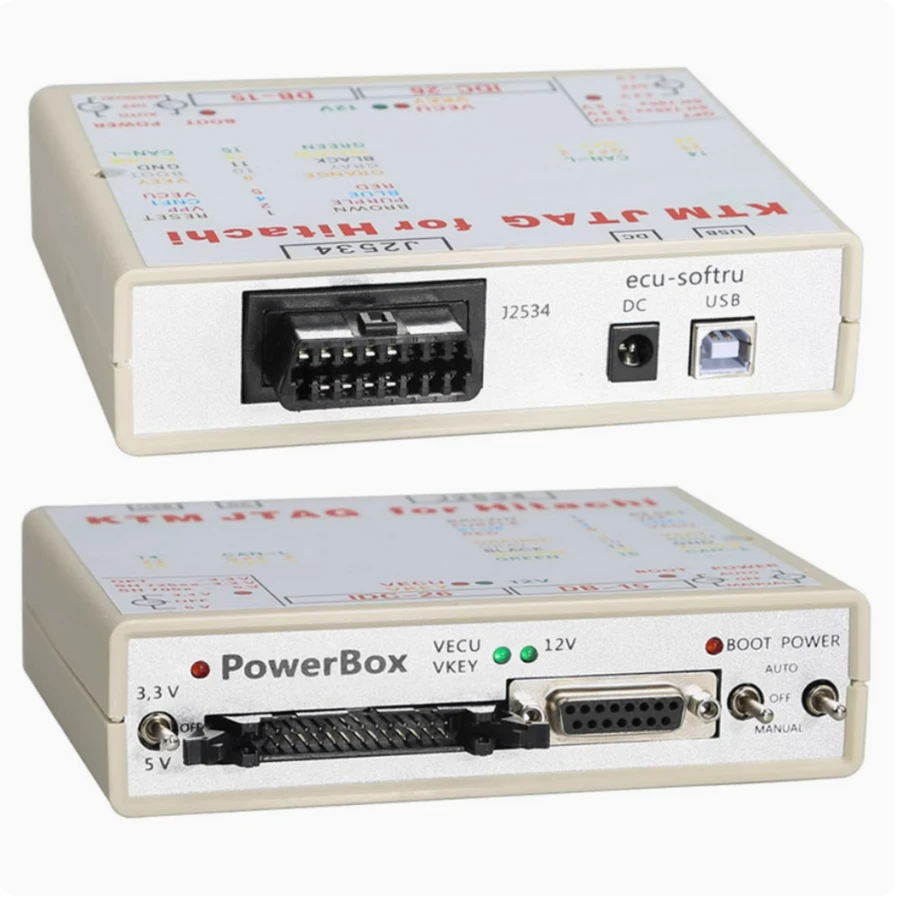

• Main JTAG Power Box: Featuring 3 control switches (Power, Boot, GPT) and status LEDs for real-time monitoring.

• GPT Color Cable: Labeled wiring for connecting to GPT pins on modern ECUs.

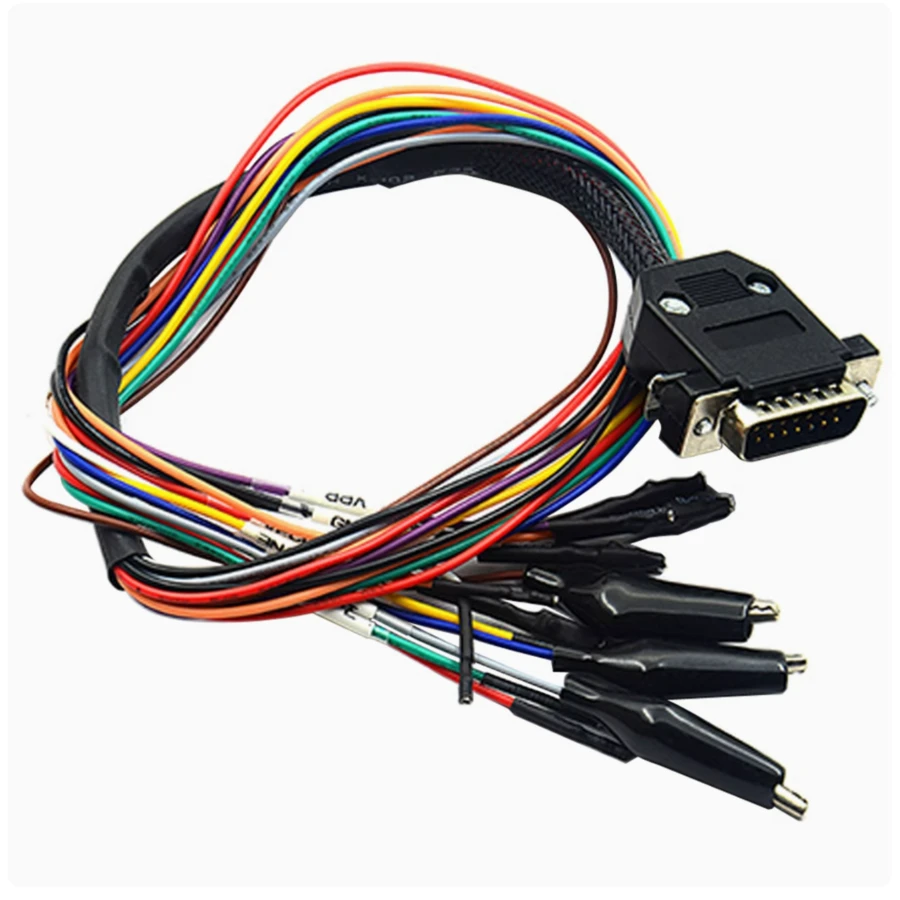

• Universal Pinout Cable: Color-coded wiring harness for DB-15 to ECU pin connections.

• Power Adapter: High-quality 12V unit designed to handle the high initial current draw of ECUs without triggering protection shut-offs.

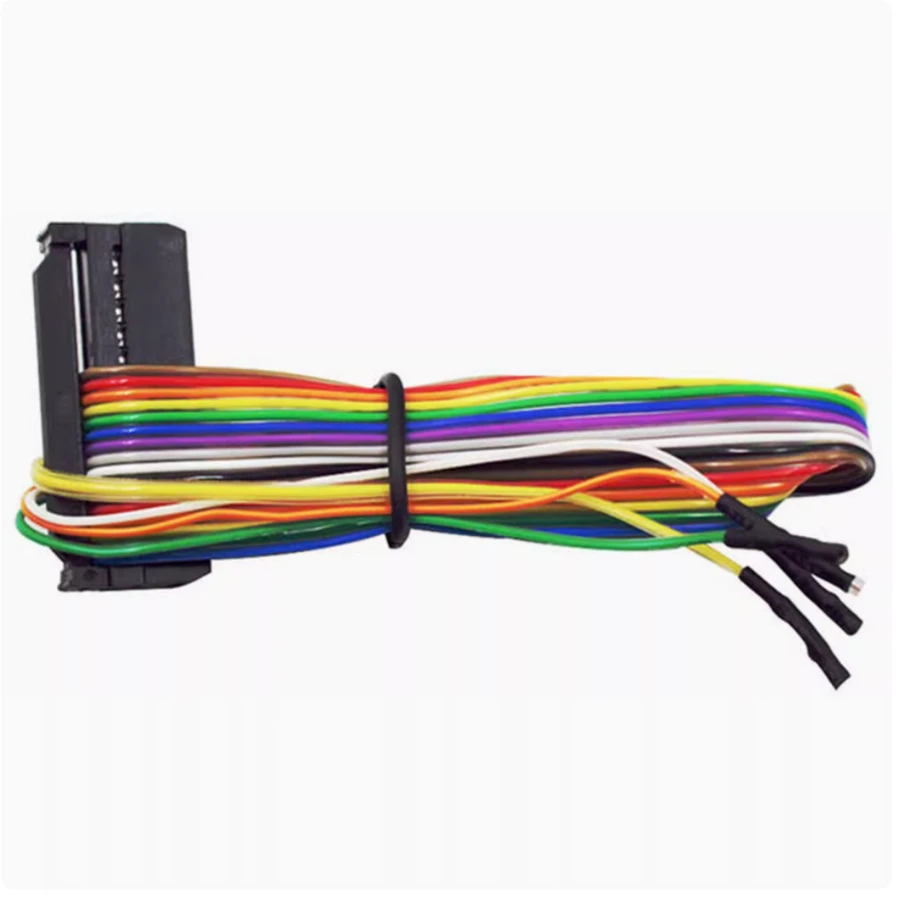

• IDC-26 Connector: For direct motherboard connections or specialized programming heads.

Integrated Protection Features

• Current Limiting: Built-in resistors on RESET (510Ω), BOOT (510Ω), and CNF1 (220Ω) lines to prevent accidental ECU damage during the boot process.

• Voltage Management: Toggle between 3.3V and 5V power supply to match the requirements of the specific CPU being programmed.
