Purpose and Primary Use

The BDM PRO Frame provides a stable, hands-free interface between your tuning tools and a vehicle's ECU. It is specifically designed for specialized Bench, Boot, or BDM (Background Debug Mode) operations where direct circuit board access is required.

Key Technical Features

• Soldering-Free Connectivity: The stand includes 4 spring-loaded probe pens that allow for precise contact with tiny test points on the ECU board, eliminating the need to solder wires directly to sensitive components.

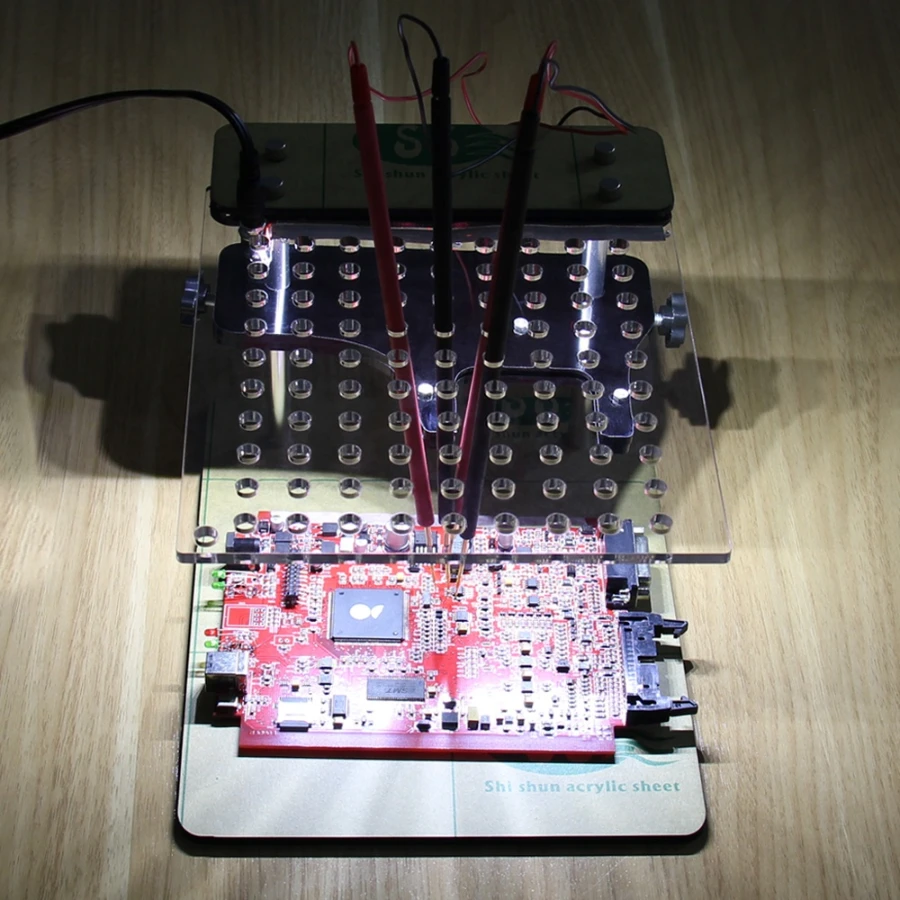

• Integrated LED Lighting: Features a built-in 12V LED light bar on the acrylic board to illuminate the workspace, ensuring clear visibility of small chips and pins in workshop environments.

• Universal Compatibility: Perfectly matched with mainstream devices such as FGTECH, BDM100, KESS V2, KTAG, KTM100, CMD, and DIMSPORT AIDS.

• Durable Construction: Built with a high-quality Plexiglass/Acrylic and Metal frame that ensures long-term stability and reliability during intensive use.

Professional Applications

• Safe ECU Remapping: Facilitates engine control unit updates and performance modifications without the risk of shaky manual connections.

• Data Reading and Writing: Enables fast and stable writing of modified ECM files and cloning of original ECU data.

• Advanced Diagnostics: Ideal for identifying connection status and performing error analysis without physical damage to the circuit board.

• System Programming: Suitable for car key read/write programming, remote control programming, and VVDI-related testing functions.

Product Specifications

• Dimensions: 248 x 193 x 151 mm.

• Weight: Main test stand weighs approximately 830g.

• Probe Length: Total probe length of 230mm with adjustable pins.

• Power Requirement: LED lamp operates on DC 12V.

Package List

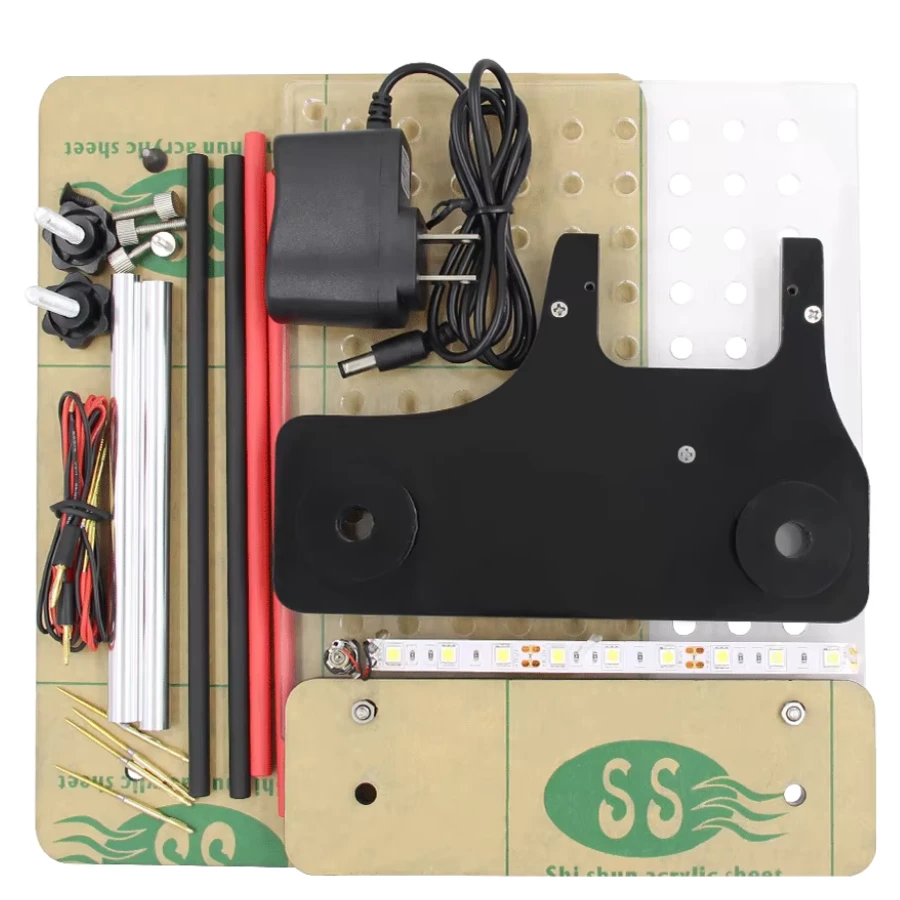

1. Main Test Stand (Assembly).

2. 4x Probe Pens (Two fine and two thick needles).

3. 4x Connection Cables.

4. 12V Power Adapter.

Why Choose Maharab Trading LLC?

As a leading automotive diagnostic tools UAE supplier and official seller for elite brands like Autel, Xhorse, and Launch, Maharab Trading LLC ensures you receive 100% authentic hardware. We provide specialized automotive technical support in Dubai and the most competitive prices for your workshop's professional tuning and hardware inspection needs.
