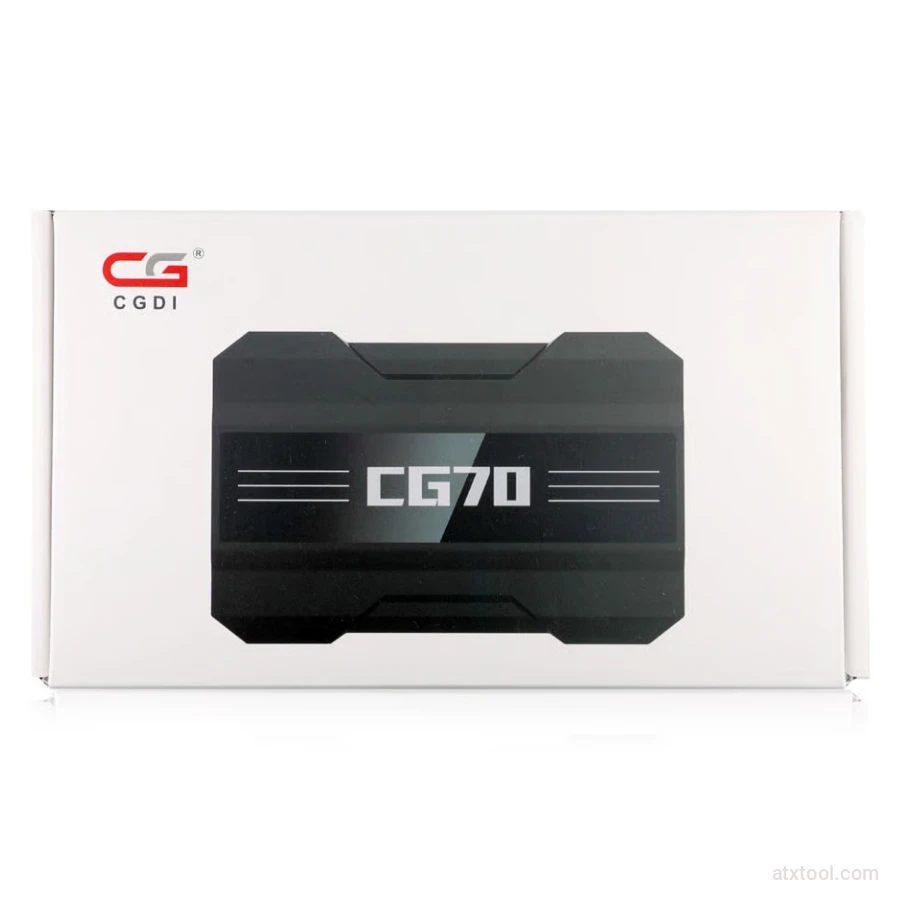

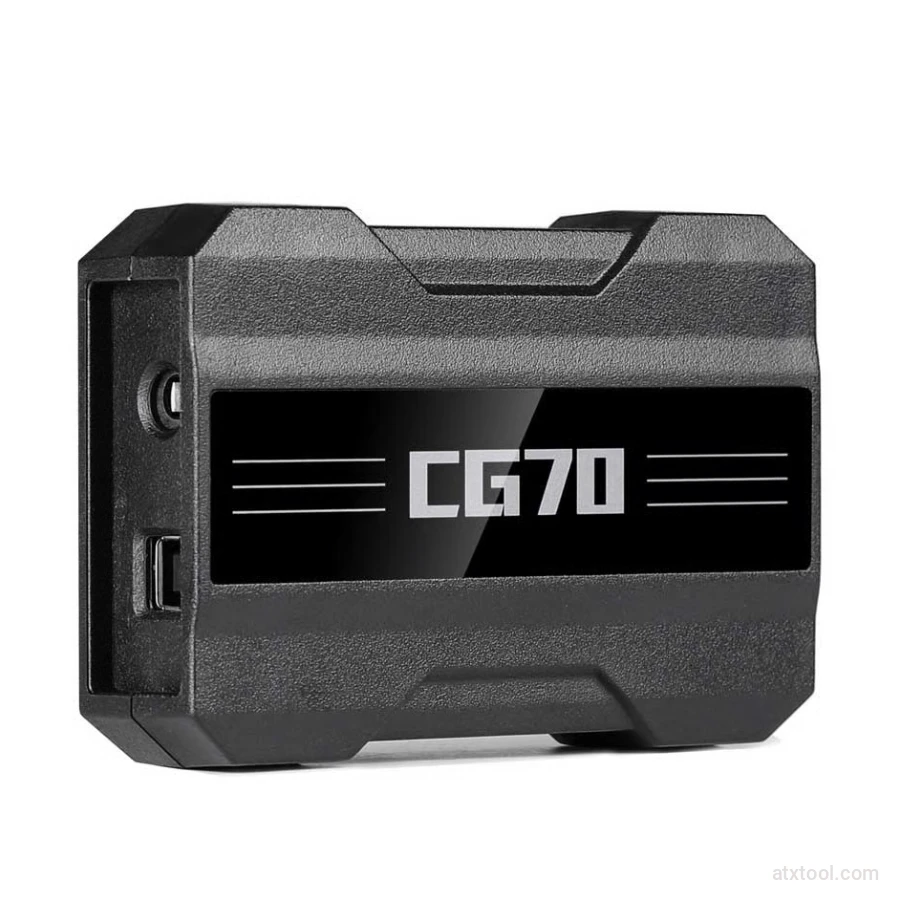

The CGDI CG-70 is a specialized, professional-grade airbag reset tool designed to restore airbag control modules to their factory state after a collision. Featuring a "No Welding, No Disassembly" design, it allows technicians to repair airbag modules quickly and safely. By eliminating the need to desolder chips or open the module casing, the CG-70 minimizes the risk of hardware damage and significantly reduces labor time.

Key Features and Benefits

• One-Key Repair: Simplified software interface allows for automatic "one-click" clearing of crash data and fault codes.

• No-Dismantle Technology: Uses specialized pin cables to connect directly to the module's external pins. No need to open the ECU or desolder sensitive EEPROM/MCU chips.

• Multiple Diagnostic Protocols: Supports CAN-BUS, K-Line, and high-speed communication protocols for stable data transmission.

• Intelligent Pin Detection: The software automatically detects if the connection between the tool and the airbag module is secure, preventing data corruption during the writing process.

• Massive Model Coverage: Supports over 3,000 airbag module parts across brands like Bosch, Continental, Denso, TRW, Autoliv, and more.

• Safety Guaranteed: Original module data is automatically backed up before any repair operation, allowing for a "one-click" restore if necessary.

  Feature	Details
  Primary Function	Crash Data Clearing / Airbag ECU Reset
  Operation Mode	Bench Mode (No welding/No opening)
  Supported Protocols	CAN, K-LINE, PWM, J1850
  Update Method	Online updates (Free for 1st Year)
  Connectivity	USB to PC / DB25 to Module Harness
  Software Language	English, French, Spanish, Chinese

Why Professionals Choose the CG-70

Unlike traditional programmers that require heat guns and soldering stations, the CG-70 utilizes a wiring diagram system included within the software. Technicians simply follow the visual guide to connect the harness to the module pins, hit "Repair," and the tool automatically locates and wipes the crash data while leaving the original calibration intact.
