The Launch EM101N EV is an innovative, dual-purpose diagnostic tool that integrates a two-channel oscilloscope and a high-precision digital multimeter into a single, ruggedized unit. Specifically optimized for the high-voltage systems of electric and hybrid vehicles, this device allows technicians to visualize complex waveforms and measure critical electrical parameters like voltage, current, and resistance with unmatched accuracy.

2-in-1 Diagnostic Power

• Dual-Channel Oscilloscope: Features a 10MHz bandwidth and a 50MHz/s real-time sampling rate, perfect for analyzing sensors, actuators, and power system circuits.

• Integrated Multimeter: Provides automatic ranging for DC/AC voltage (up to ±600V), current (up to ±10A), and resistance (up to 6MΩ), as well as diode and continuity testing.

• Flexible Connectivity: Works seamlessly with Launch X-431 series diagnostic tools via both high-speed wired USB or wireless Bluetooth connections.

• Advanced Waveform Analysis: The user-friendly diagnostic app supports saving and opening waveforms locally for deep analysis and historical comparison.

Engineered for the Modern Workshop

• Universal Compatibility: Designed to expand the functionality of flagship scanners including the X-431 PAD V, PAD VII, PAD IX LINK, and EURO TAB III.

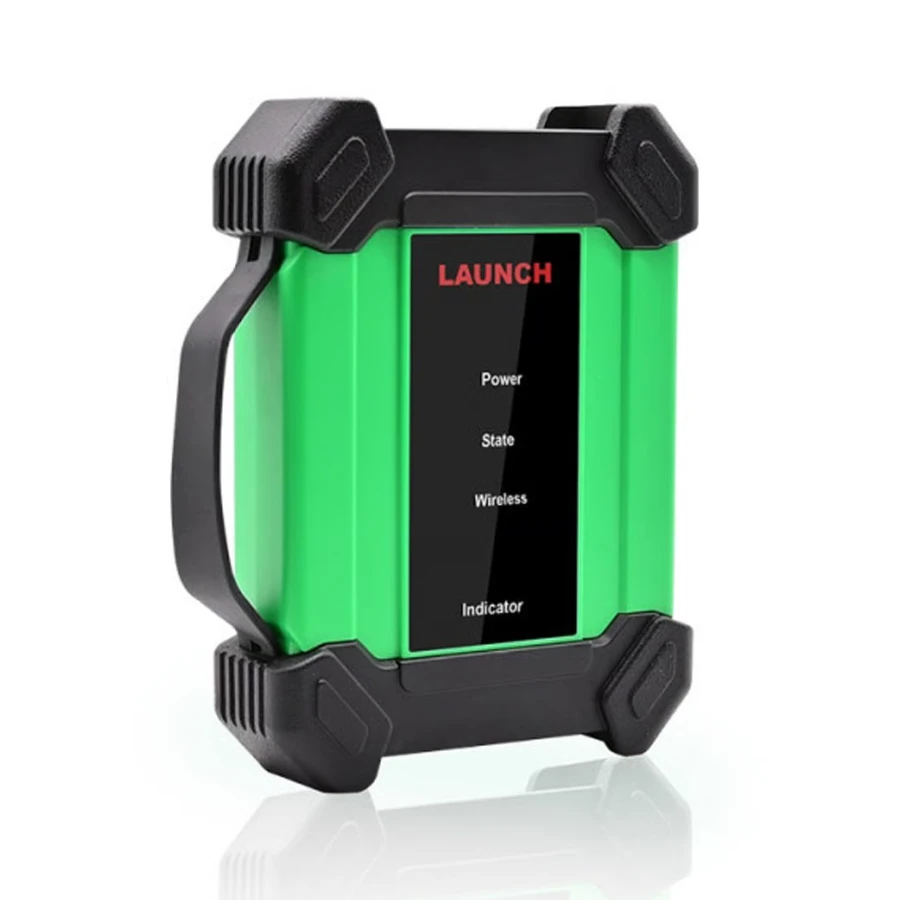

• Ruggedized Protection: Encased in an anti-fall silicone rubber sleeve for maximum durability in harsh shop environments.

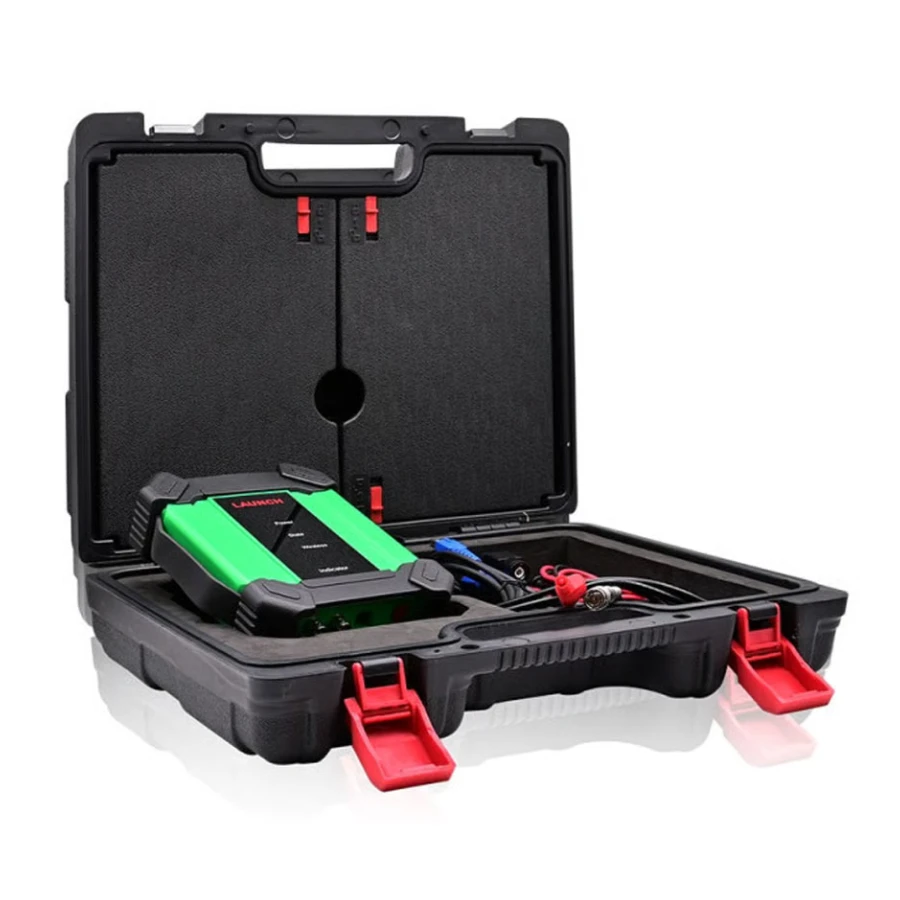

• Comprehensive Accessory Kit: Comes complete with needle sets, multimeter pens, alligator clips, and oscilloscope test leads for immediate use.

• Long-Lasting Battery: Equipped with a 3100mAh rechargeable battery, enabling extended wireless operation during mobile diagnostics.

Key Specifications

• Bandwidth: 10MHz

• Sampling Rate: 50MHz/s (Max)

• Vertical Resolution: 8 bits

• Voltage Test Range: ±600V (AC/DC)

• Current Test Range: ±10A (AC/DC)

• Storage Depth: 1M
