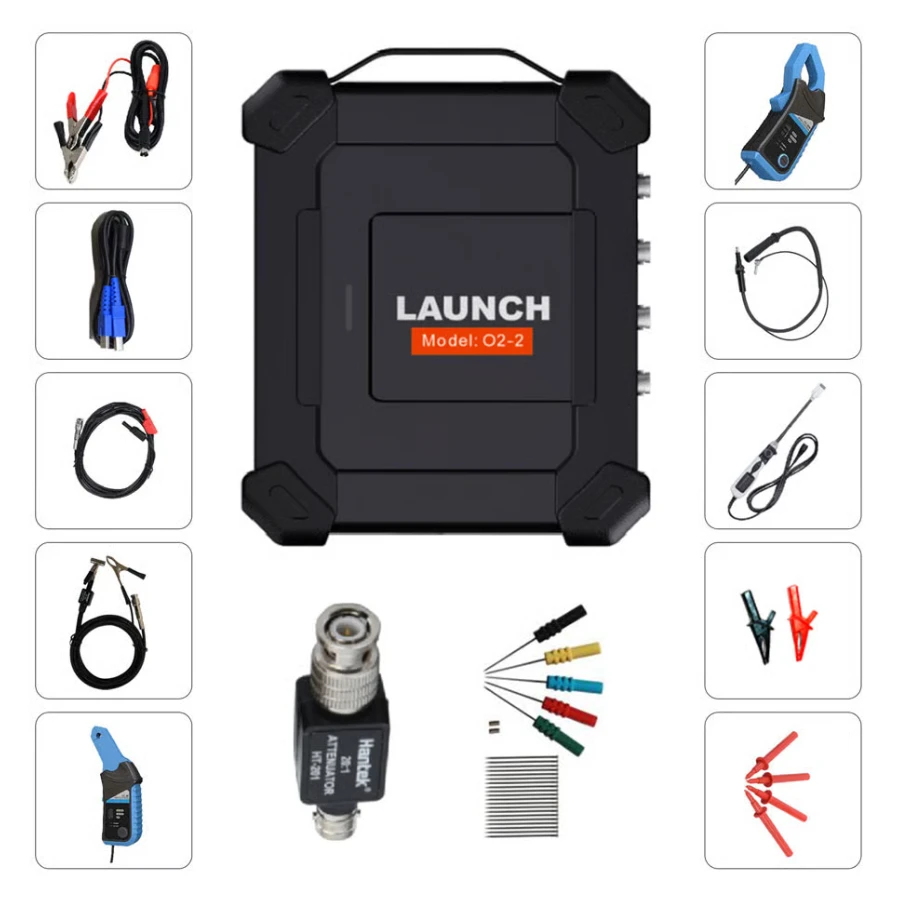

The O2-2 Scopebox is an essential add-on module for detecting high-level faults across various electrical components. It integrates seamlessly with the X-431 series through the dedicated O2-2 application to provide precise diagnostic insights and conclusive fault detection.

High-Resolution Data Analysis

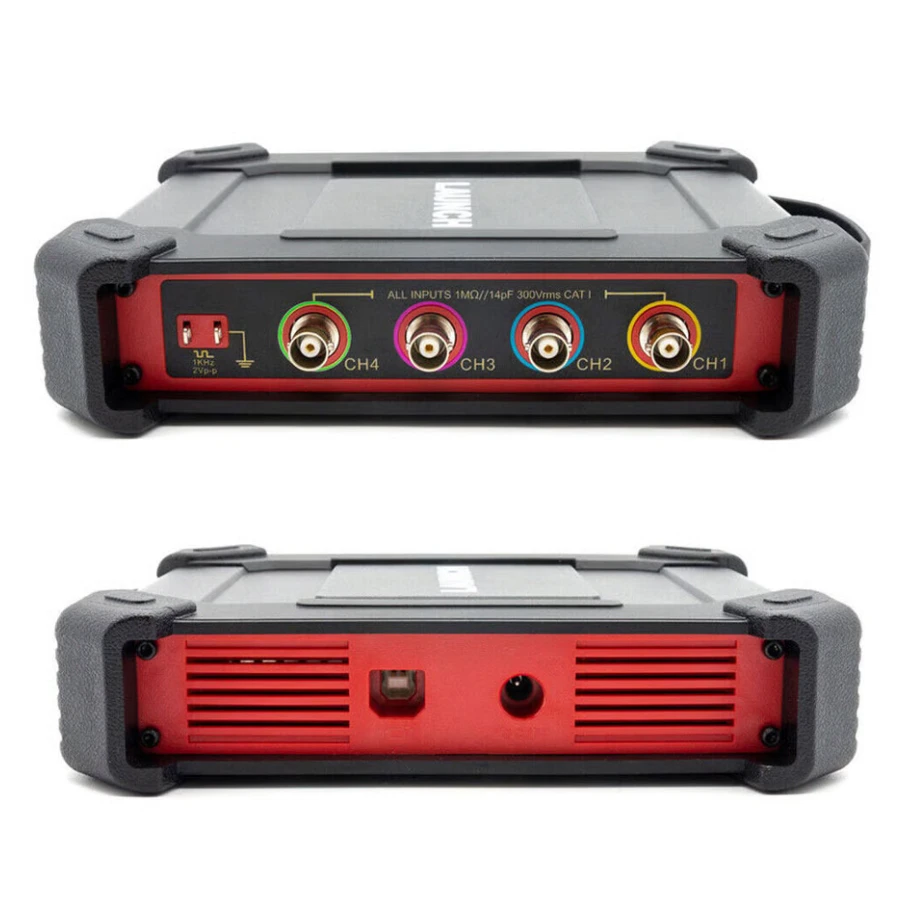

• 4-Channel Precision: Simultaneously monitors four independent signals for comprehensive system analysis.

• 100MHz Bandwidth: Captures high-frequency signals with extreme precision, ideal for modern automotive circuit diagnostics.

• Record & Playback: Features the ability to record high-resolution waveform data for future review and playback analysis.

• One-Key Capture: A specific "one-key enable" function makes capturing particular waveforms 70% more efficient than standard oscilloscopes.

• 23 Automatic Measurements: Displays 23 parametric measurement variants on a single screen for rapid signal evaluation.

Advanced Diagnostic Features

• Waveform Math & FFT: Perform advanced operations such as addition, subtraction, multiplication, and Fast Fourier Transform (FFT) for high-level signal analysis.

• Zoom Functionality: Includes a zoom in/out feature to review precise details within captured waveforms.

• Self-Calibration: Optimizes the signal path automatically to ensure maximum measurement accuracy.

• Automotive Presets: Includes multiple preset automotive tests for circuits, sensors, actuators, and ignition systems.

• Large Buffer Memory: Equipped with up to 50M buffer memory to handle extensive data capture.

Seamless Integration & Hardware

• Compatibility: Works with Launch X431 PAD V, PAD VII, PRO3 V5.0, PRO V5.0, Throttle III, and IMMO PAD/PRO.

• High-Speed Connectivity: Uses USB sync for fast data transfer to external devices like laptops and tablets.

• User-Friendly Interface: Features a virtual keyboard for direct character input, contributing to 90% higher operation efficiency.
