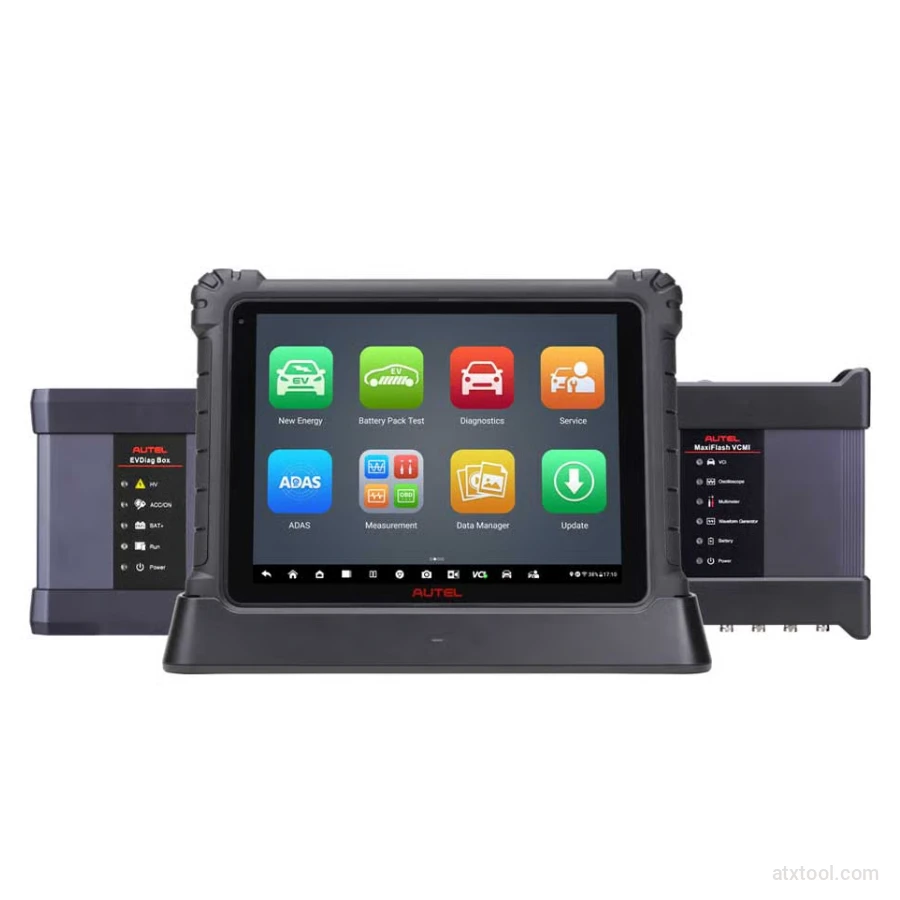

The MaxiSys Ultra is Autel’s most advanced diagnostic tablet, engineered to enhance technician capability and workshop productivity. Built with a large 12.9 inch high resolution touchscreen and powered by Android 7.0 operating system, the device runs on a fast octa core processor with massive 256GB internal storage. The split screen multi application function allows technicians to run diagnostics and component tests simultaneously, improving workflow efficiency and repair accuracy.

The system is integrated with dynamic topology mapping, enhanced AutoSCAN, and intelligent diagnostics to deliver step by step repair guidance. Paired with the MaxiFlash VCMI, the Ultra becomes a complete diagnostic and measurement solution for modern vehicles.

Key Features

Large 12.9 inch TFT LCD display with 2732 by 2048 resolution
Android 7.0 operating system
Octa core processor for ultra fast performance
256GB built in storage with 4GB RAM
Split screen multi tasking navigation
Docking station for continuous power supply

Advanced Diagnostics and Coverage

Provides OE level diagnostics for more than 80 US, Asian, and European vehicle brands including supercars
Comprehensive OBDII diagnostics and service functions
Advanced ECU coding and programming capabilities
Auto VIN and AutoSCAN for fast vehicle identification
Real time system updates via internet push notifications
Interactive data logging for direct troubleshooting support
Cloud based data manager for customer and vehicle records

MaxiFlash VCMI 5 in 1 Functions

Vehicle Communication Interface
Four channel oscilloscope
Waveform generator
Multimeter
CAN BUS tester

This integrated measurement system enables precise signal testing, sensor verification, and network diagnosis without additional equipment.

Protocol Support

Supports D PDU, SAE J2534, RP1210, DoIP, and CAN FD protocols
Ensures compatibility with modern passenger and commercial vehicles
Enables high speed data transmission for faster diagnostics and programming

CAN FD and DoIP Advantages

Faster communication than traditional CAN systems
Extended coverage for newer vehicle platforms
Supports modern models from brands such as GM, Volvo, Land Rover, Jaguar, and BMW

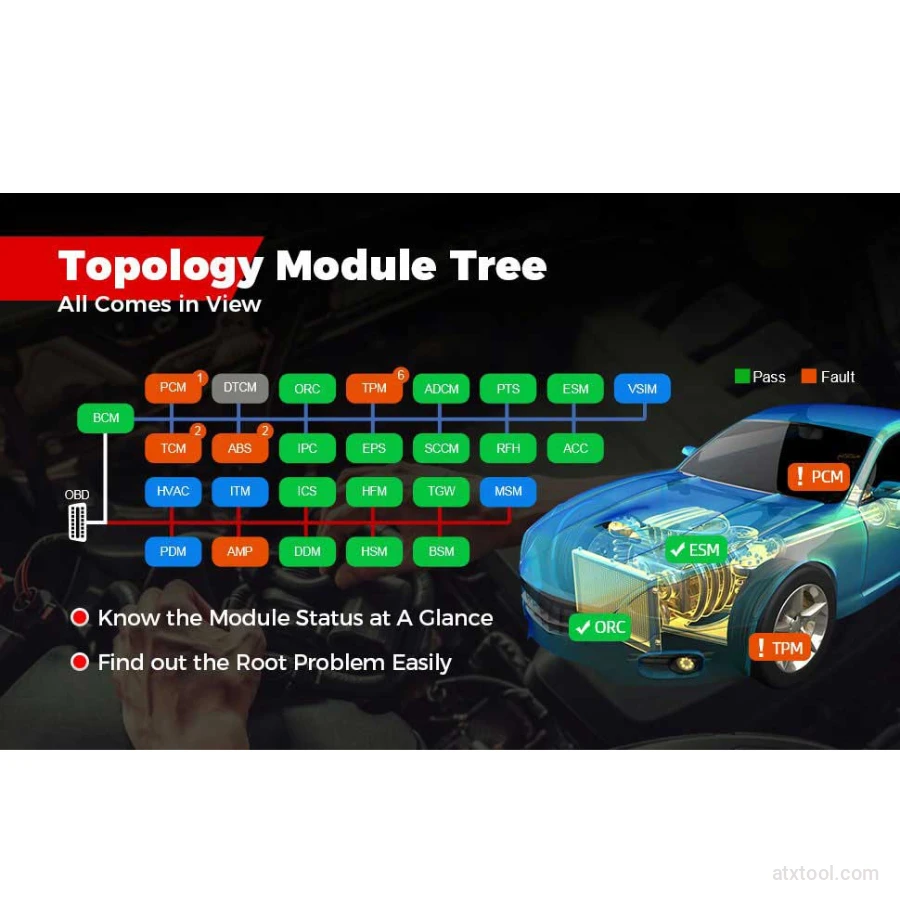

Topology Module Mapping

Displays all vehicle modules in a color coded structure
Shows communication relationships between modules
Highlights fault codes and system status instantly
Improves diagnostic clarity and troubleshooting speed

Intelligent Diagnostics

Technical Service Bulletins access
DTC analysis with repair suggestions
Guided repair assistance
Component measurement instructions
Relevant repair case references

ECU Programming and Coding

Advanced J2534 pass through programming
Online ECU programming and coding
Module replacement and adaptation
Software upgrading and downgrading
Supports multiple global vehicle manufacturers

Service and Maintenance Functions

More than 36 service functions including

Oil reset
EPB reset
ABS bleeding
Injector coding
DPF regeneration
Throttle adaptation
SAS calibration
Suspension calibration
Battery management reset
TPMS reset
Airbag reset
Gearbox matching
Anti theft key matching

Advanced Functions

Bi directional active tests
Guided diagnostic procedures
Vehicle personalization
Control module modifications
Hidden feature activation

Technical Specifications

Operating system Android 7.0
Processor Samsung Exynos8895V octa core
Memory 4GB RAM and 256GB storage
Display 12.9 inch touchscreen
Battery 18000mAh lithium polymer
Camera 16MP rear and 5MP front
Connectivity WiFi Bluetooth GPS USB HDMI
Operating temperature 0 to 50 degrees Celsius

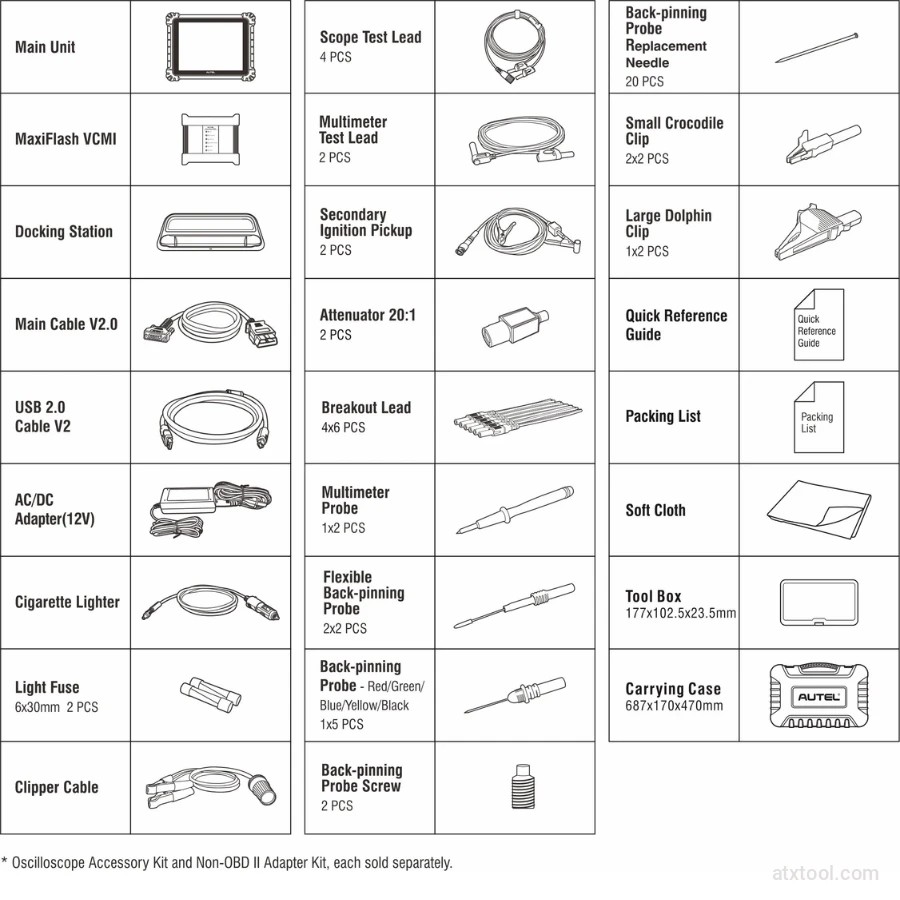

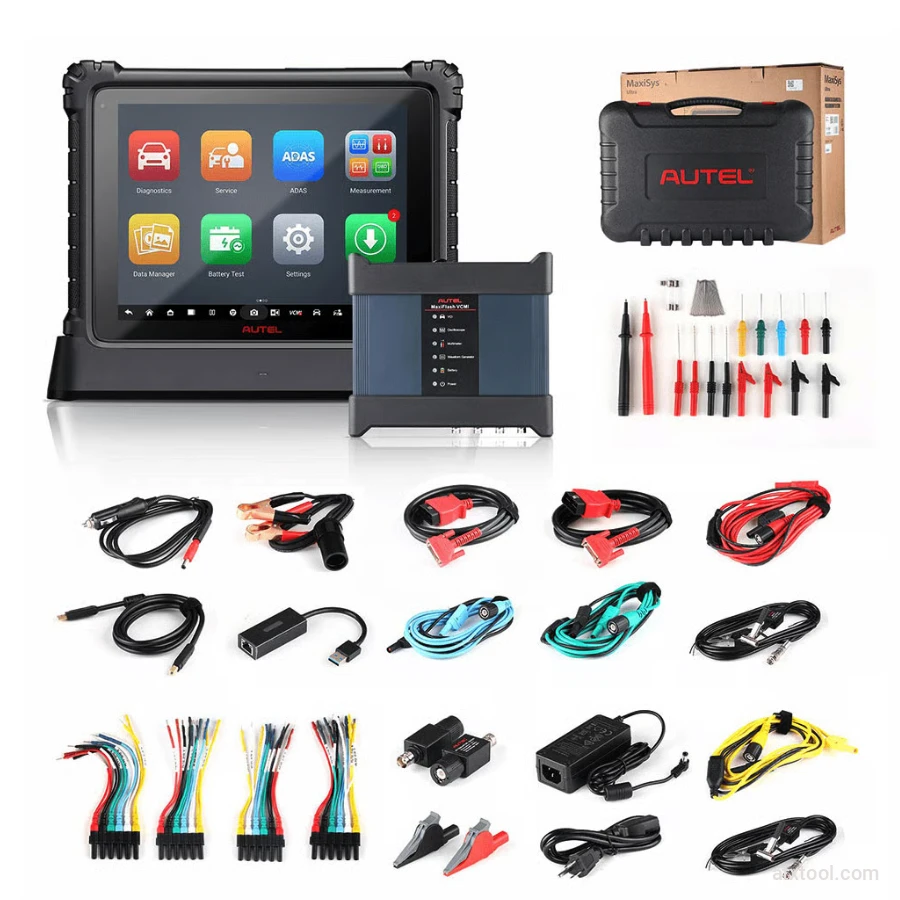

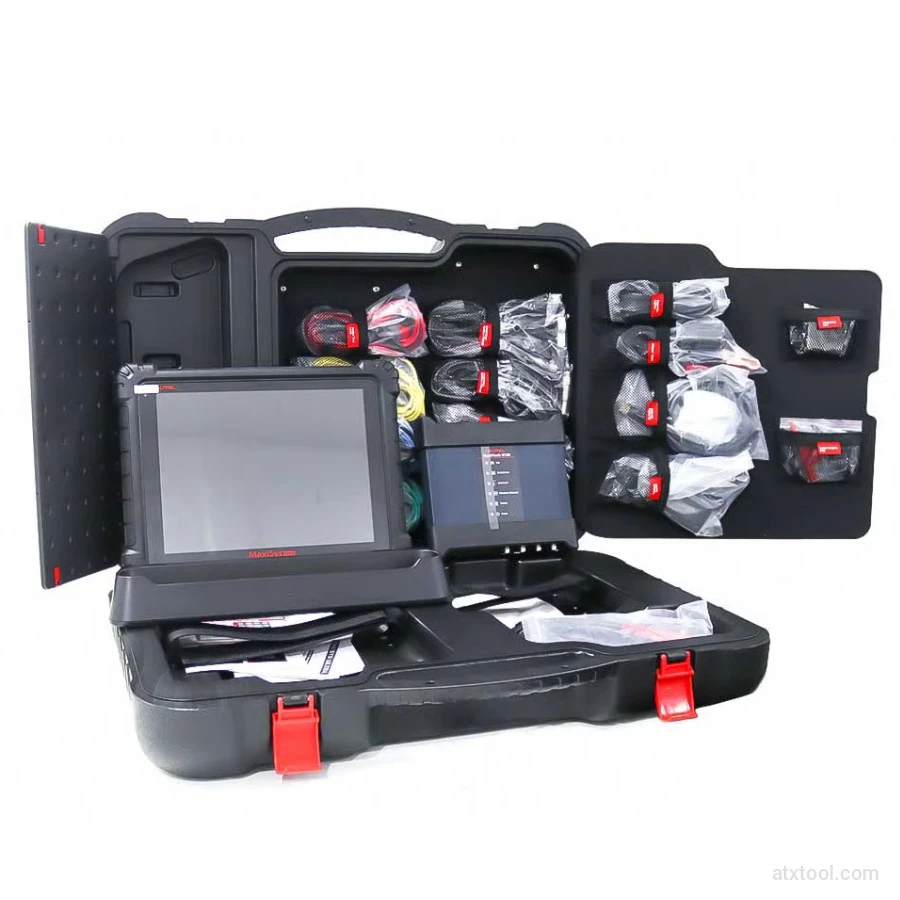

Package Contents

Main diagnostic tablet
MaxiFlash VCMI interface
Main diagnostic cable
USB cable
Power adapter
Cigarette lighter cable
Oscilloscope test leads
Multimeter test leads
Ignition pickups
Attenuators
Breakout leads
Back pinning probes set
Crocodile clips
Carrying case
Toolbox
User guide and packing list
