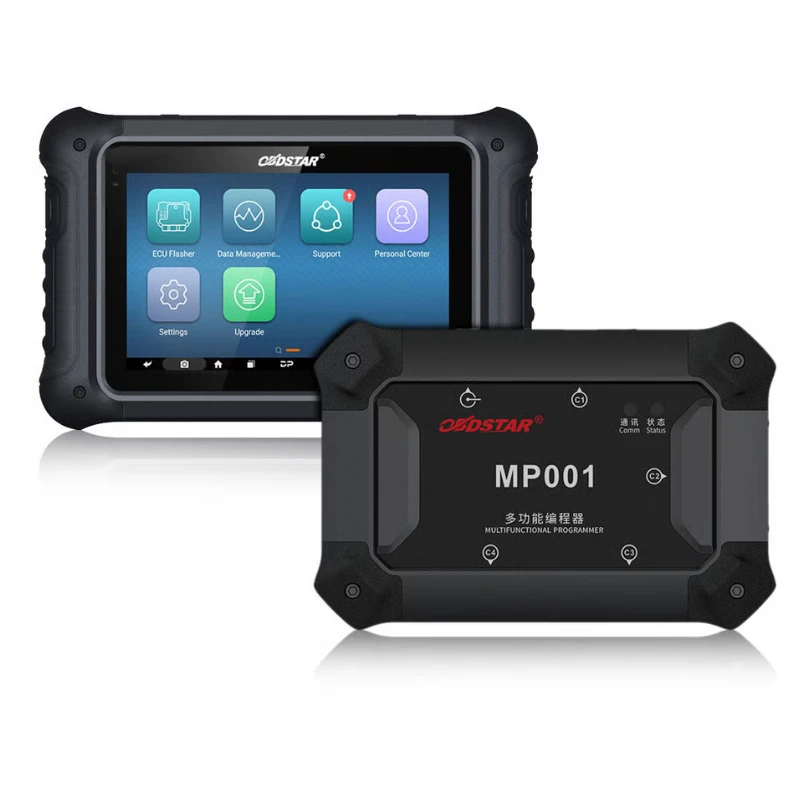

OBDSTAR DC706 ECU Tool & MP001 Multi-Function Programmer

The OBDSTAR DC706 ECU Tool & MP001 Multi-Function Programmer is a professional ECU programming solution for cars and motorcycles, designed for automotive workshops, ECU specialists, diagnostic technicians and professional programmers.

OBDSTAR DC706 ECU Programming

The DC706 is designed for ECM, TCM, Body and other ECU programming through OBD or Bench mode. It makes ECU cloning and data processing easier and supports a wide range of automotive and motorcycle ECU applications.

Key Functions:

• ECU Information Reading

• EEPROM Read/Write

• Dflash Read/Write

• Pflash Read/Write

• MAP Read/Write

• ECU Reset / Virgin

• Mileage Calibration

• IMMO PIN Code Reading

• ECU Recovery

• ECU Cloning

• Automatic ECU Identification

• Intelligent ECU Search

The DC706 supports 200+ ECM types, dozens of TCM types and 100+ Body/Other ECU types. Some applications may require additional compatible adapters.

ECM, TCM & Body ECU Clone

ECM: Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens and other selected systems.

Motorcycle ECM: Bosch, Delphi, EFI and other selected systems.

TCM: AC Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF and other selected systems.

Body/Other ECU: FCA, Fiat, Ford, GM/Opel, Land Rover/Jaguar, PSA, Smart, Volvo and other selected systems.

Supported ECU Manufacturers

ALPS, Autoliv, Bosch, Continental, Delphi, Denso, Johnson Controls, Lear, Magneti Marelli, Siemens, Temic and Valeo.

Supported Vehicle Brands

Cars: Aston Martin, BMW, FAW, Alfa Romeo, Chrysler, Dodge, Fiat, Ford, Lincoln, GM, Opel, Hyundai, Kia, Land Rover, Jaguar, Luxgen, Maserati, Mazda, Mitsubishi, Nissan, PSA, Smart, Subaru, Suzuki, Volvo, Volkswagen, Audi, Seat and Skoda.

Motorcycles: Aprilia, BRP, CFMOTO, Derbi, Gilera, Moto Guzzi, Peugeot, Piaggio, QJ Benelli and Vespa.

Advanced Functions

• Supports VW DQ-series TCM mileage calibration

• Motorcycle Delphi MT05, MT05.2 and MT05.3 ECU cloning

• BRP ME17.8.5 ECU cloning with compatible adapter

• Selected Piaggio engine ECU cloning applications

• Intelligent search by brand, model, part number, ECU manufacturer and MCU controller type

• Automatic ECU identification

• Strong help data files

• All by OBD or Bench mode

• More functions under continuous development

Supported Body/Other ECU applications may include AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, Keyless, KVM, RFA and SAM.

OBDSTAR MP001 Multi-Function Programmer

The MP001 expands the programming capabilities of the DC706 system and supports a variety of EEPROM, MCU, key, body computer and module-related operations.

MP001 Functions:

• EEPROM Reading & Writing

• MCU Reading & Writing

• Key Flashing

• Steering Angle Repair

• Body Computer Data Processing

• IMMO Functions

• PIN Code Reading

• Battery Module Repair

• Instrument Repair

• More functions under development

The MP001 incorporates functions associated with P003+, P003, P002 and P001 adapters and features up to 12 I/O ports for expanded ECU programming requirements.

Compatible ECU Bench jumper cables are required for applicable programming operations.

DC706 Specifications

Operating System: Android 5.1.1
CPU: RK3128 Quad-Core ARM Cortex-A7
Battery: 3700mAh Rechargeable Polymer Lithium Battery
Storage: 16GB
Memory Card: Supports 32GB Micro SD Card
Display: 7.0-inch LCD
Resolution: 1024 × 600
Touch Screen: Capacitive Touch Screen
Wi-Fi: Supported
Working Temperature: -20°C to 55°C
Storage Temperature: -20°C to 70°C
Weight: Approximately 1.3kg
Dimensions: 243 × 148 × 36mm

MP001 Specifications

CPU: STM32F407VET6
Connectors: DC, OBD Female, OBD Male, DB9, DB25
Input Voltage: DC 12V/24V
Output: 500mA
Working Temperature: -10°C to 55°C
Weight: 260g
Dimensions: 165 × 110 × 35mm

Package Includes

DC706 Package:

• 1 × DC706 Main Unit

• 1 × Main Cable

• 1 × P004 Adapter

• 1 × P004 ECU Clone Jumper

• 1 × 12V 2A Charger

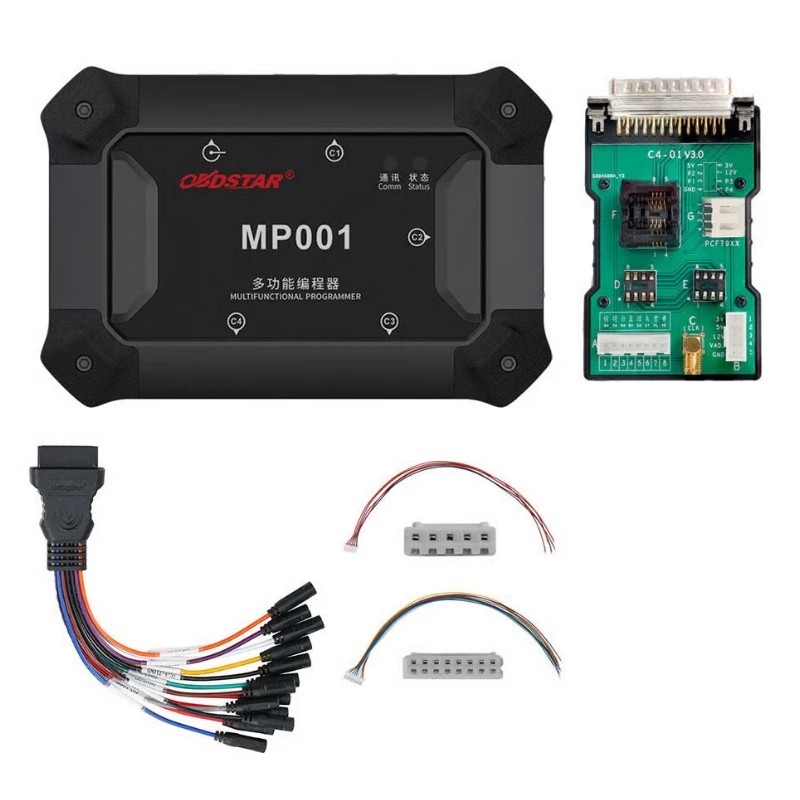

MP001 Package:

• 1 × MP001 Programmer

• 1 × C4-01 Host

• 1 × W004 EEPROM & MCU Adapter

• 1 × W005 EEPROM & MCU Adapter

Important Information

Supported vehicles, ECU types, functions and required accessories may vary according to the vehicle model, ECU manufacturer, ECU type, software configuration and specific application. Certain programming functions require additional compatible adapters or Bench cables.

The OBDSTAR DC706 + MP001 is a professional solution for ECU cloning, ECM and TCM programming, EEPROM/MCU operations, Body ECU programming, ECU recovery and automotive electronic module repair.
