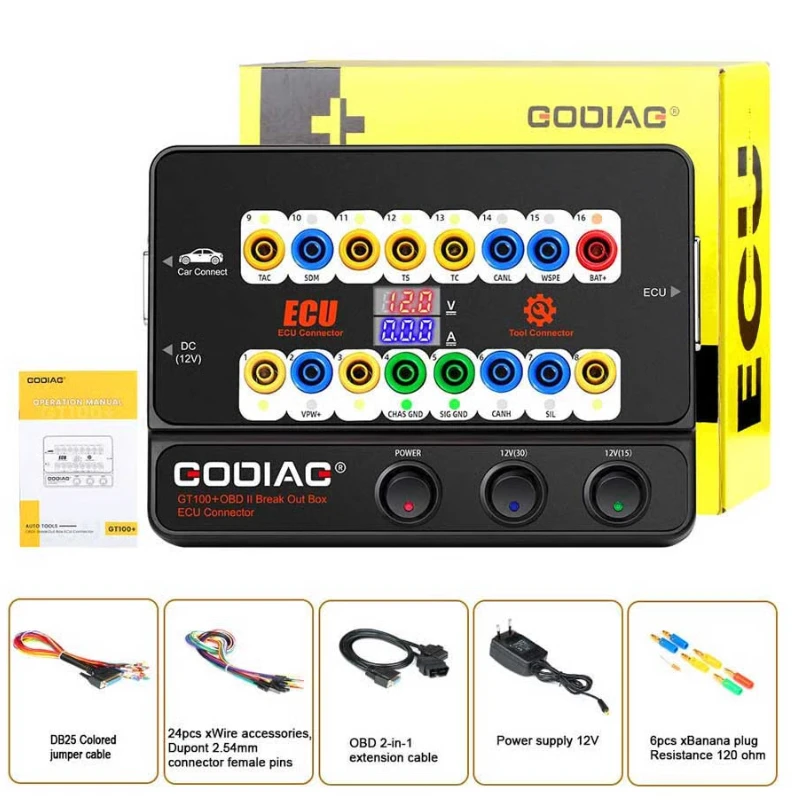

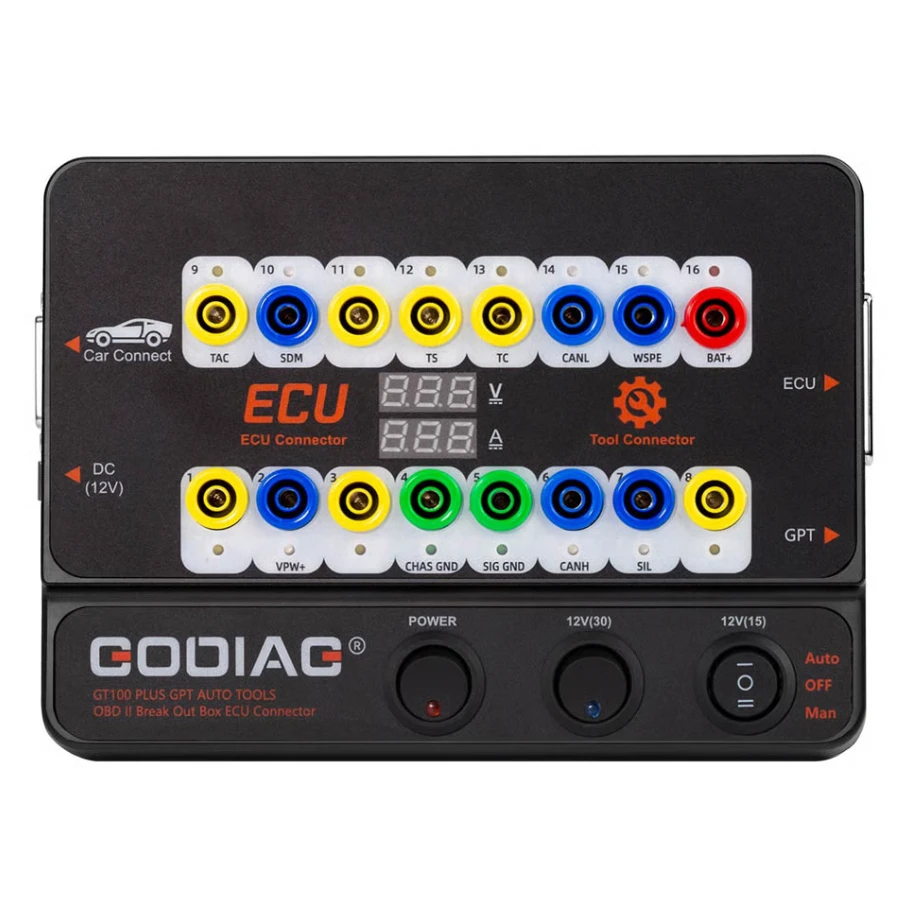

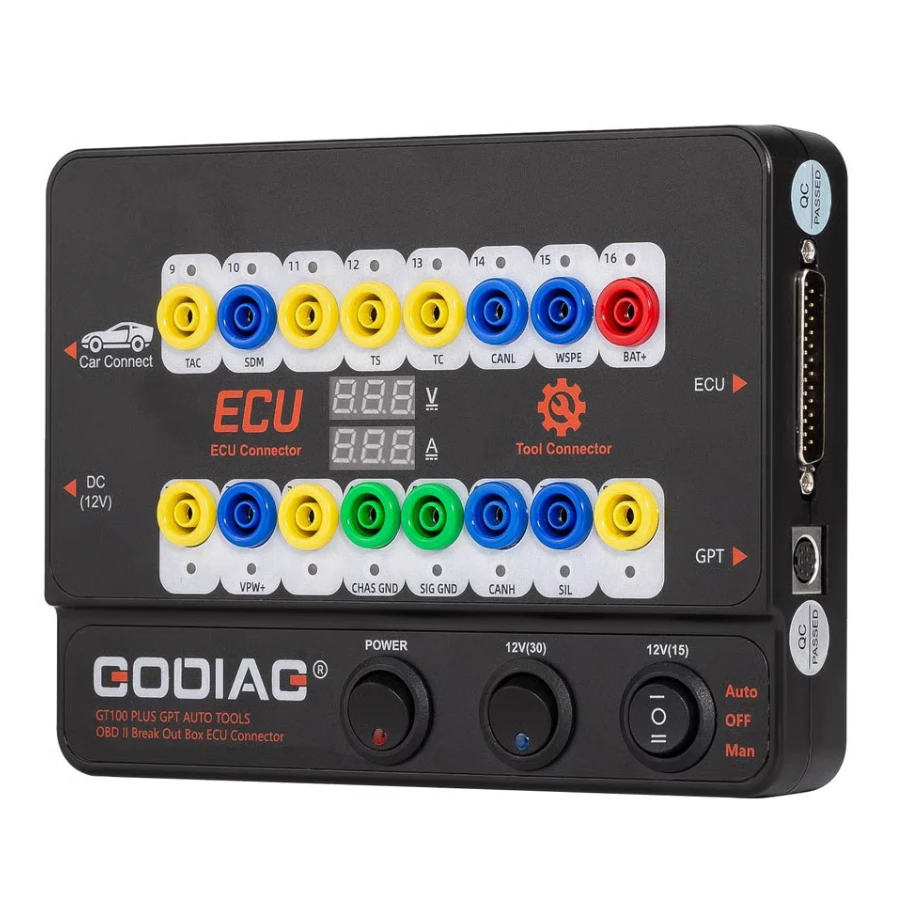

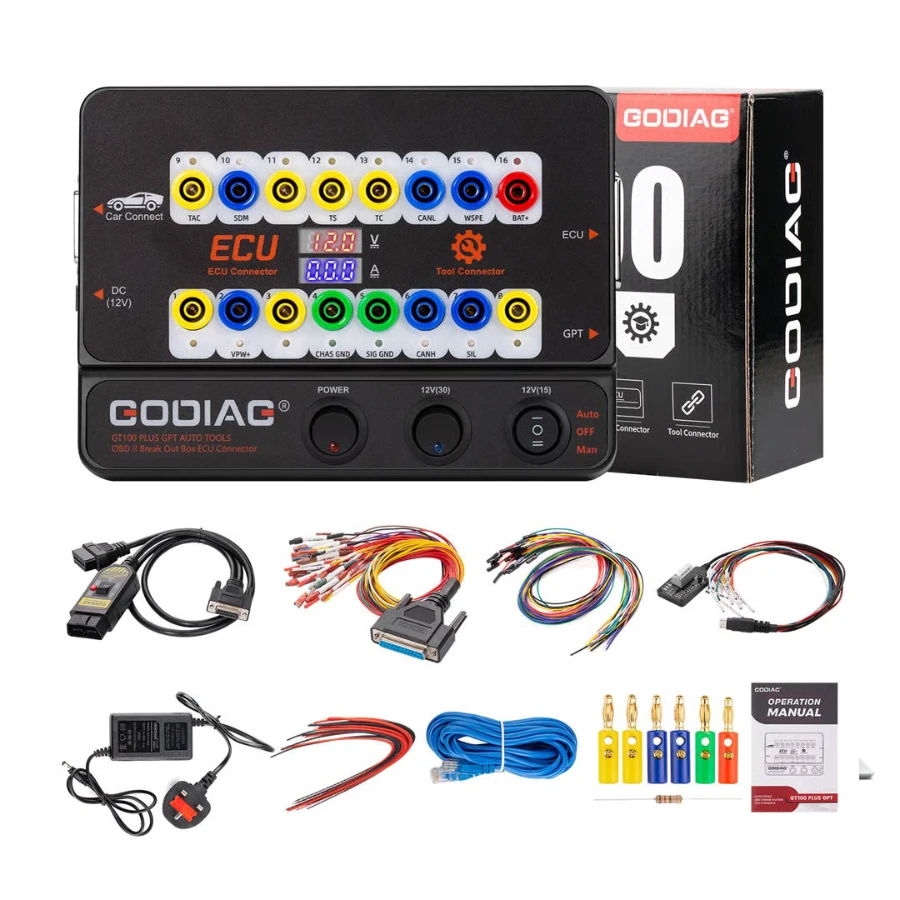

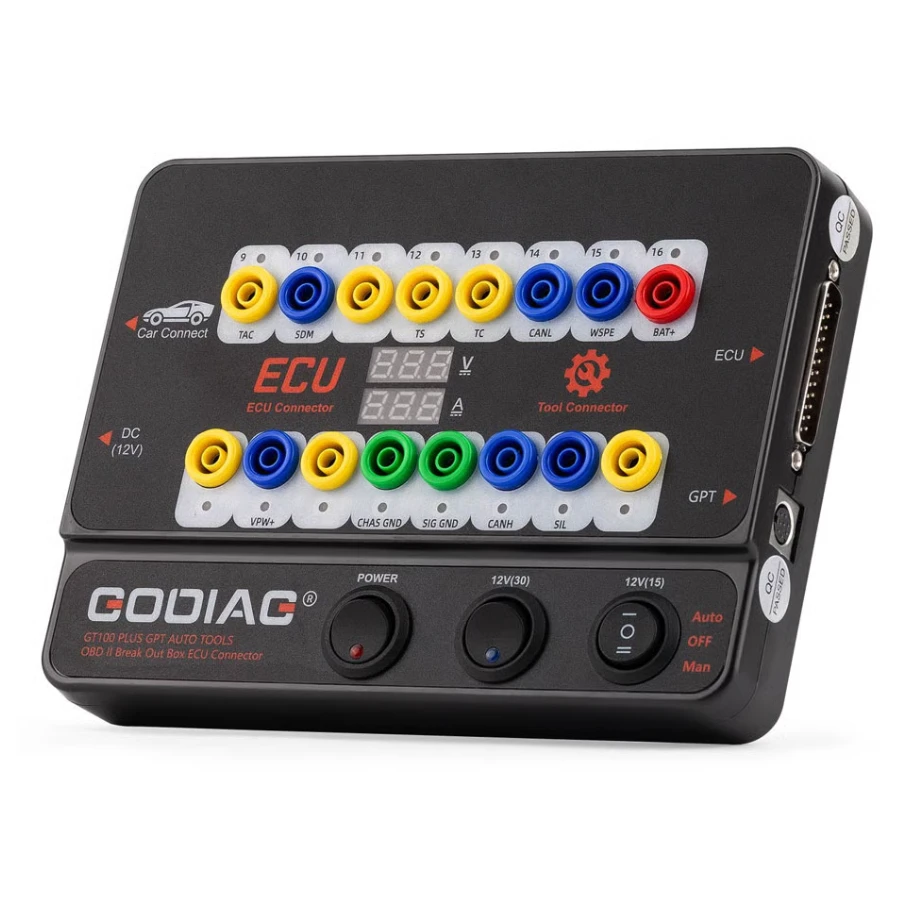

The Godiag GT100 Plus GPT is the most advanced version of the GT100 series, specifically designed as a comprehensive testing platform for OBDII protocol detection and ECU maintenance. This professional "Breakout Box" allows technicians to safely connect, activate, and diagnose ECU modules directly on the bench or while connected to the vehicle.

Setting itself apart from previous models, the GT100 Plus GPT adds native support for DOIP and ENET protocols, making it compatible with the latest BMW, Mercedes-Benz, and Volkswagen Group vehicles. It also features a unique 24V to 12V voltage conversion capability, allowing standard 12V diagnostic tools to be safely used on 24V heavy-duty trucks without risking equipment damage.

Key Features and Benefits

• DOIP & ENET Support: Fully compatible with high-speed Ethernet-based diagnostics for modern vehicle architectures.

• GPT ECU Connection: Supports GPT (General Purpose Timer) signals for reading and writing ECU data without disassembly, ideal for tools like PCMFlash.

• Real-Time Voltage & Current Display: Features a dual-digital display to monitor both the voltage and the precise current (Amps) the ECU is drawing, helping to quickly identify short circuits or module failures.

• 24V to 12V Conversion: Safely converts truck-level 24V power to a regulated 12.5V output, simulating a real ignition scenario for 12V scanners.

• Auxiliary Power Supply: Can supply power to the vehicle during battery replacement to prevent loss of anti-theft sync, radio codes, and dashboard data.

• OBDII Protocol Detector: LED indicators show communication status for CANBUS, K-Line, PWM, VPW+, and KWP2000 in real-time.

• All Keys Lost Activation: Facilitates key programming by forcing the instrument cluster and anti-theft system to activate through pin shorting.

Compatible Diagnostic Tools

The GT100 Plus GPT acts as a universal bridge for leading industry tools:

• Scanners: Autel, Launch, Foxwell, Vident.

• Key Programmers: Xhorse VVDI2, VVDI Key Tool Plus, CGDI BMW, Lonsdor K518.

• ECU Tools: PCMFlash, Kess V2, PCMTuner.

Quick User Manual: How to Use the GT100 Plus GPT

1. Bench ECU Connection: Connect the ECU to the GT100 Plus using the colored jumper cables (following the ECU's pinout). Power the unit with the included 12V adapter. Observe the current display; if it fluctuates normally, the ECU is alive and ready for programming.

2. Vehicle Communication Check: Plug the GT100 Plus into the car's OBDII port. If the LEDs for Pin 6 (CAN-H) and Pin 14 (CAN-L) flash, the vehicle's network is active. If the voltage is below 11V, an alarm will sound, warning you to charge the battery before programming.

3. Using 12V Tools on 24V Trucks: Plug the GT100 Plus into the 24V truck port. Press the voltage conversion switch to output a safe 12V signal. You can now plug in your 12V Bluetooth scanner (like Thinkdiag or Launch X431) without burning the device.

4. All Keys Lost (AKL): For specific models like VW or Porsche, use the banana plug jumpers to short Pin 16 and Pin 1 to "wake up" the dashboard and allow the key programmer to communicate.
