Genuine Scanmatik 3 (SM3) | Professional J2534 & CAN-FD Interface

The Next Standard in Pass-Thru Technology

The Scanmatik 3 is more than a simple diagnostic tool; it is a comprehensive communication interface designed to handle the most demanding OEM software requirements.

• Next-Gen Protocols: Features native support for CAN-FD and DoIP protocols, ensuring compatibility with the latest vehicle architectures.

• Software Versatility: Offers widest support for SAE J2534-1/2 and TMC RP1210C standards, making it compatible with a vast range of diagnostic programs and flashers.

• Exclusive Implementations: Includes unique features like Ignition State Emulation for VAG ODIS and K-LINE multiplexing for MB-DAS.

• Legacy Support: Maintains compatibility with older vehicles via implemented J1850 VPW/PWM and Chrysler SCI interfaces.

Advanced Hardware Features

• Dual Connection Modes: Supports high-speed USB or stable Wi-Fi connectivity for PCs, tablets, or smartphones.

• Industrial Grade Protection: Equipped with a galvanically isolated USB port and fully protected transceiver lines against overvoltage and short-circuits.

• 24V System Ready: Fully supports heavy-duty trucks and buses with load dump and overvoltage protection up to 55V.

• Integrated FEPS Generator: Features a programming voltage generator (5-24V) multiplexed to specific OBD port pins for professional reflash operations.

Comprehensive Technical Specifications

• Connectivity: IEEE 802.11b/g/n Wireless and USB A-B.

• Multiplexed Channels: 13X ISO-9141-2/ISO-14230-2 (K-LINE) and 5X CAN2.0/CAN-FD channels.

• Diagnostic Software Included: Comes with the full current version of software modules for VAZ, GAZ, UAZ, Chevrolet, Mitsubishi, Kia, Hyundai, KAMAZ, MAZ, and more.

• Compact Design: Ultra-portable dimensions of 97 x 75 x 22 mm.

Package Contents & Reliability

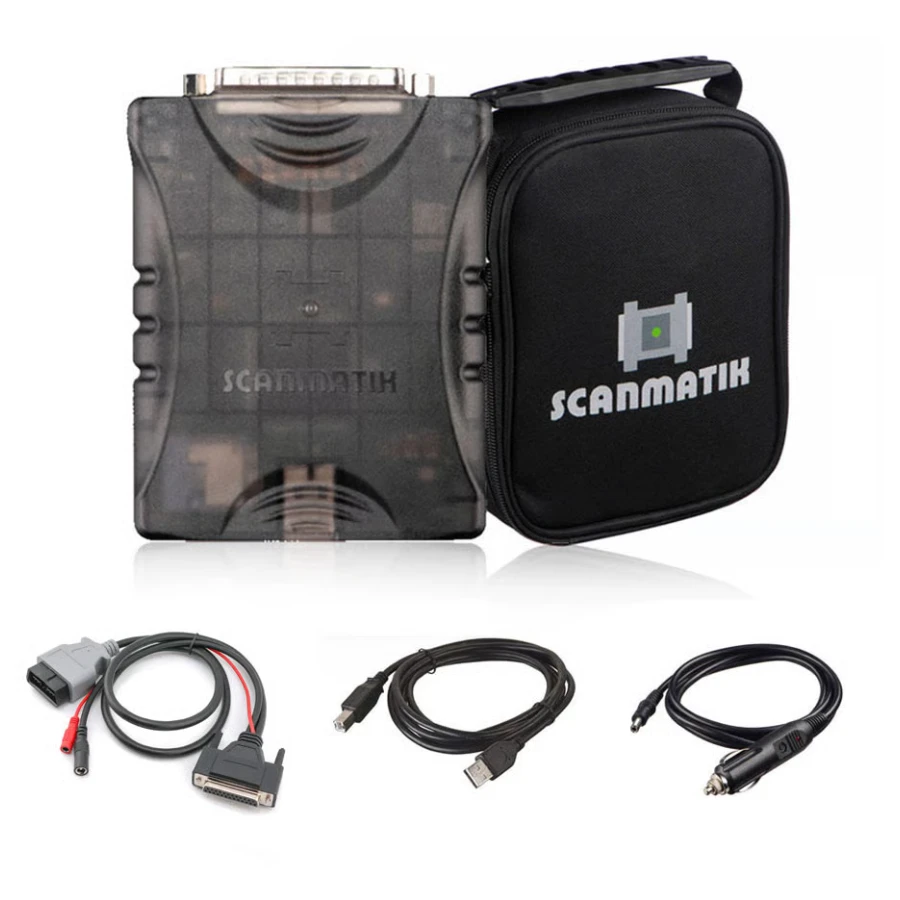

The kit arrives ready for immediate professional use and includes:

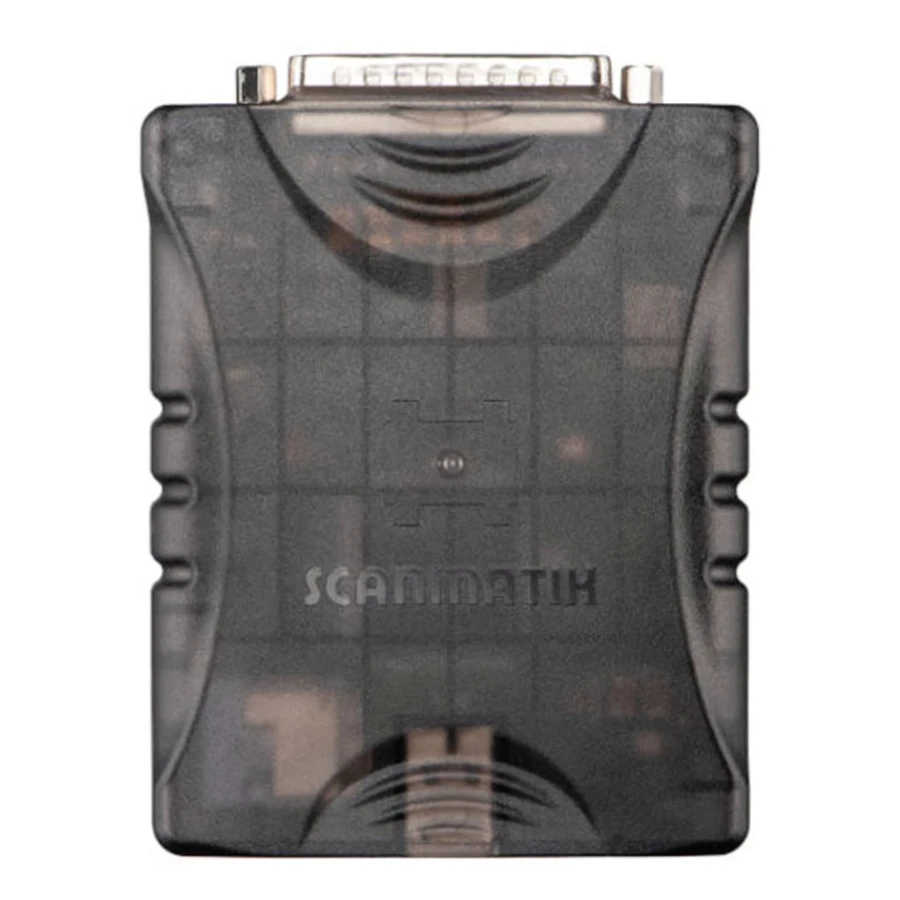

• SM3 Main Device

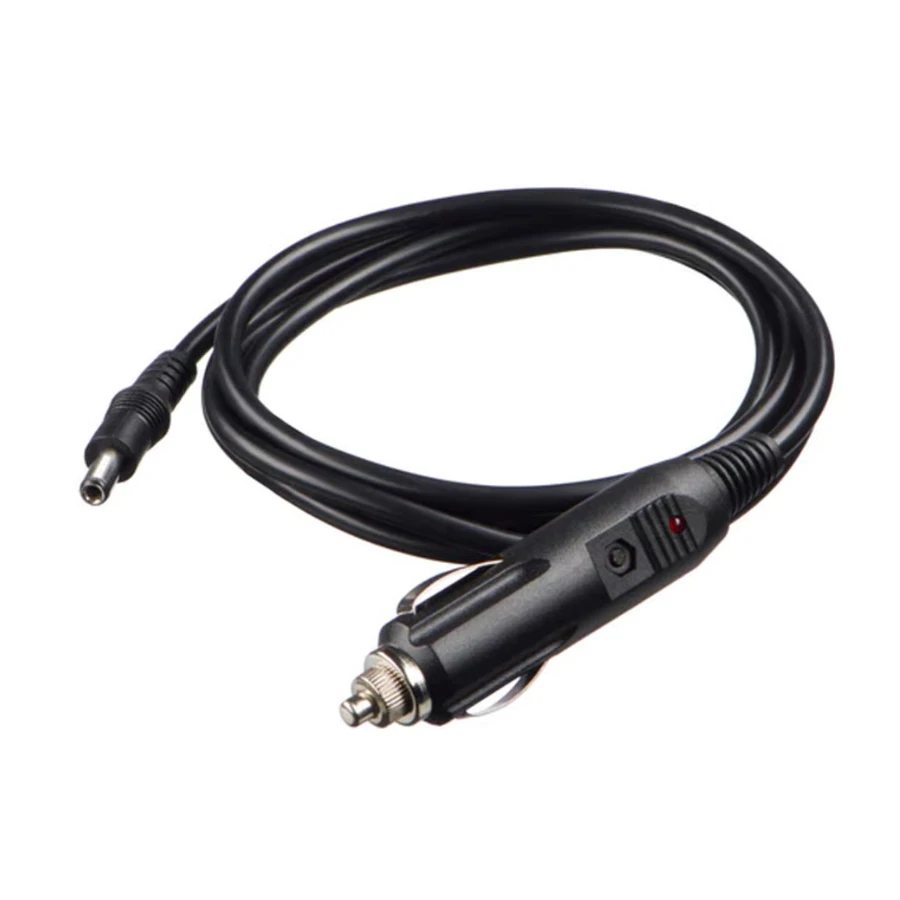

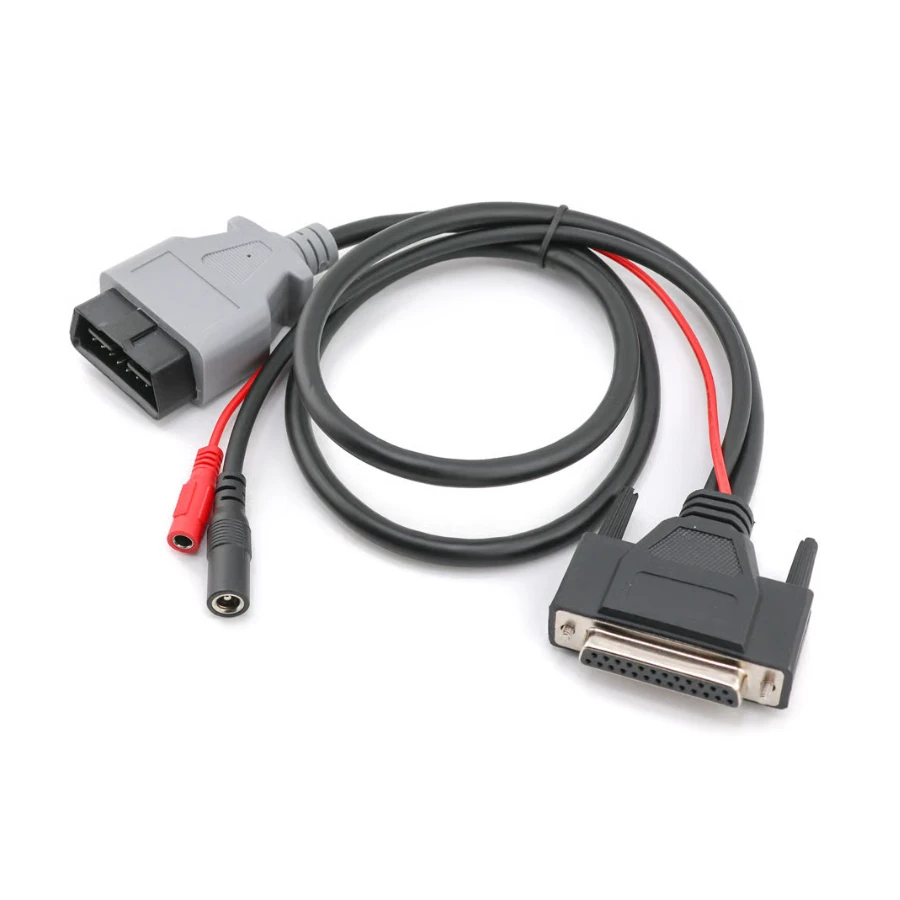

• OBDII with AUX Cable & Lighter Cable

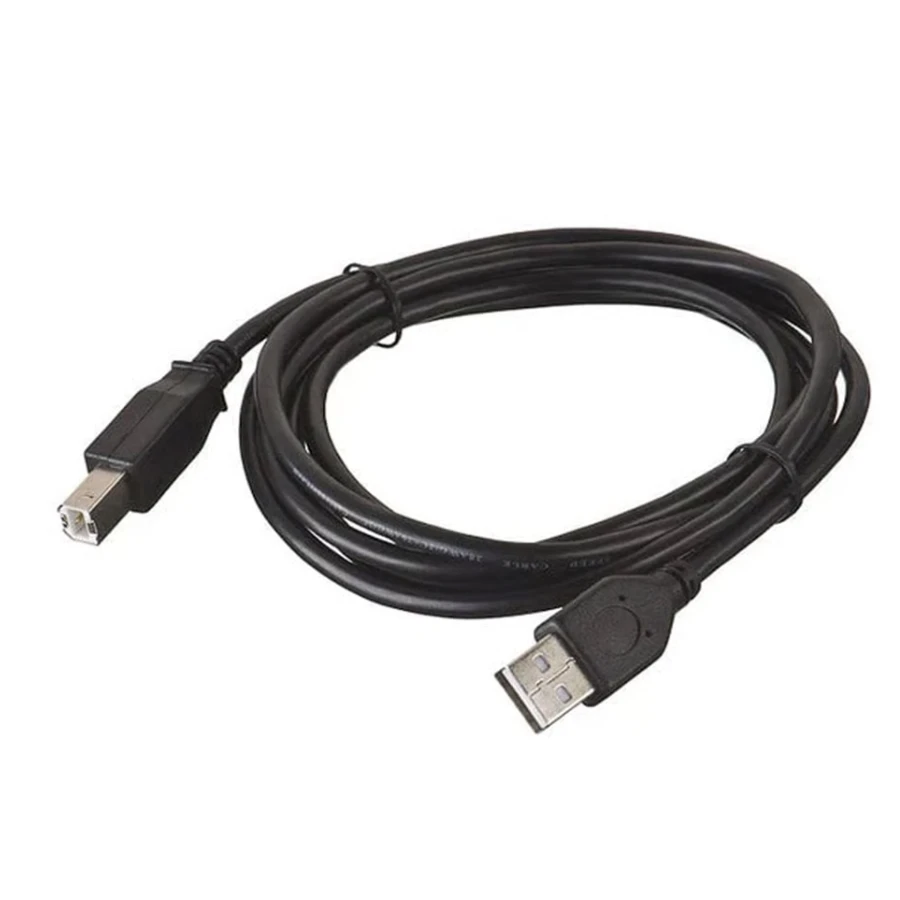

• USB A-B Cable

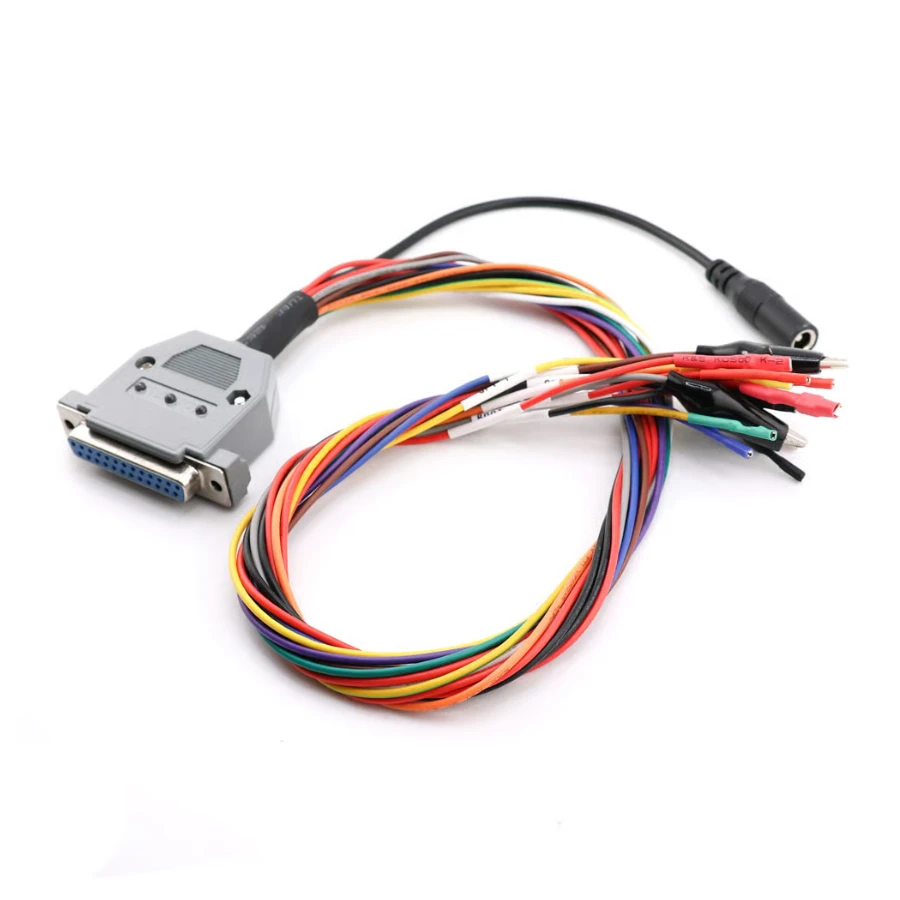

• Scanmatik Boot / Bench Cable

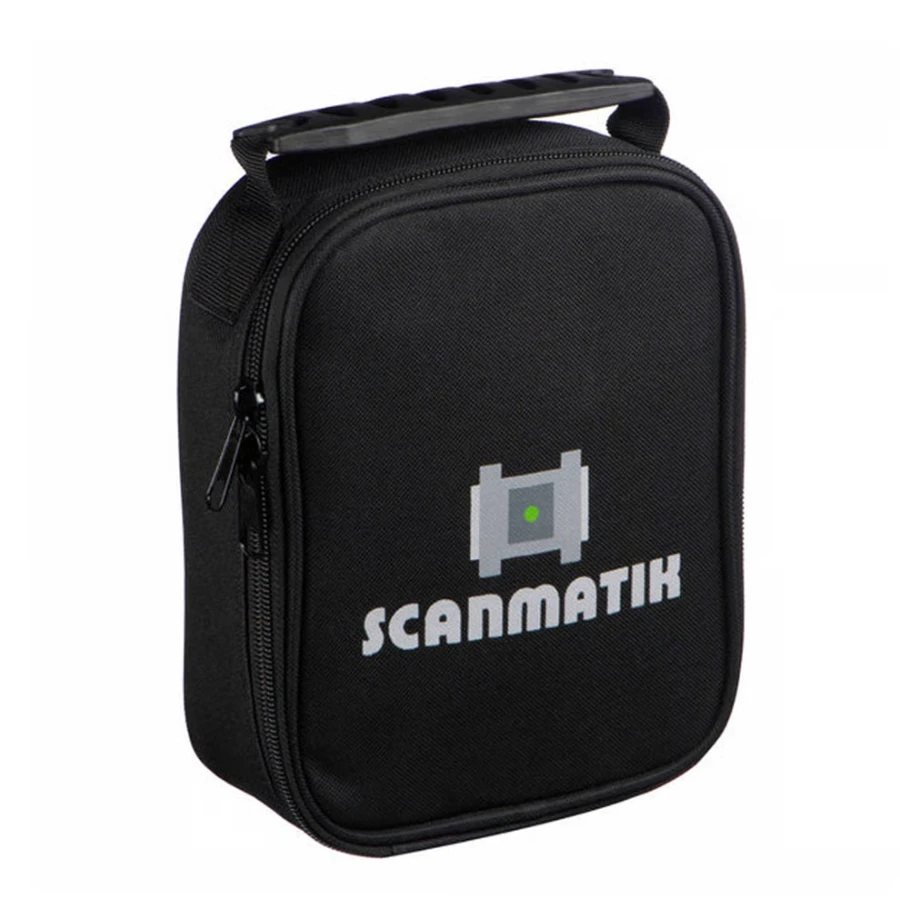

• Branded Storage Bag

• Warranty: 1 year for the SM3 Adapter and 3 months for cable accessories against manufacturing defects.
