GODIAG GT112 K-Line for VW Audi Skoda Seat 2nd & 3rd Generation Description: GODIAG GT112 K-Line for VW Audi Skoda Seat 2nd & 3rd generation dashboard IMMO key matching test platform cable performs offline key and IMMO instrument synchronization test, intelligent IMMO system emergency start area sensing detection, IMMO dashboard offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching... It supports VW Audi Skoda Seat and other models. Diagnostic Tools From GODIAG. This Weight Product: 300g

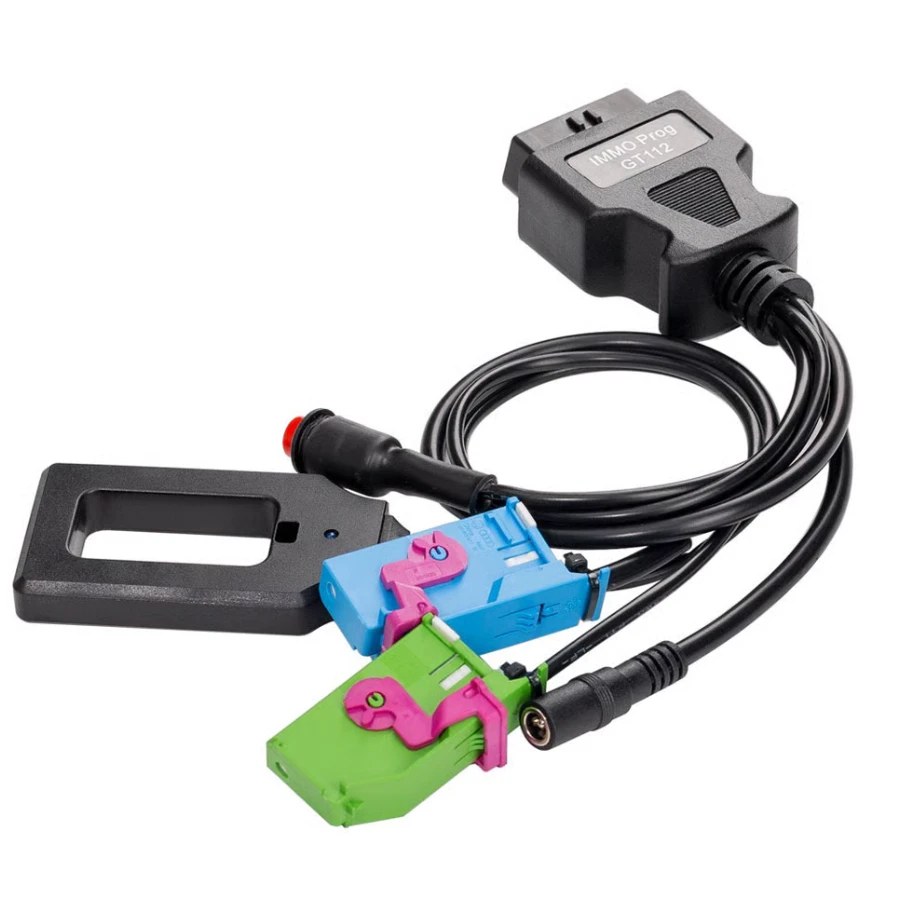

GODIAG GT112 K-Line FOR VW Audi Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable

 GODIAG GT112 K-Line for VW Audi Skoda Seat 2nd & 3rd Generation Introduction:  It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.

GODIAG GT112 K-Line for VW Audi Skoda Seat 2nd & 3rd Generation Features:    1. Offline connection to the dashboard to convert to standard OBD2. 2. Perform key chip and instrument synchronization test. 3. Independent ignition switch 4. Key induction adapter with light  Intelligent IMMO System Emergency Start Area Induction Detection  Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.  Car IMMO Start and Start Key Chip Detection

 Test Result Analysis:   1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly. 2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched. 3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

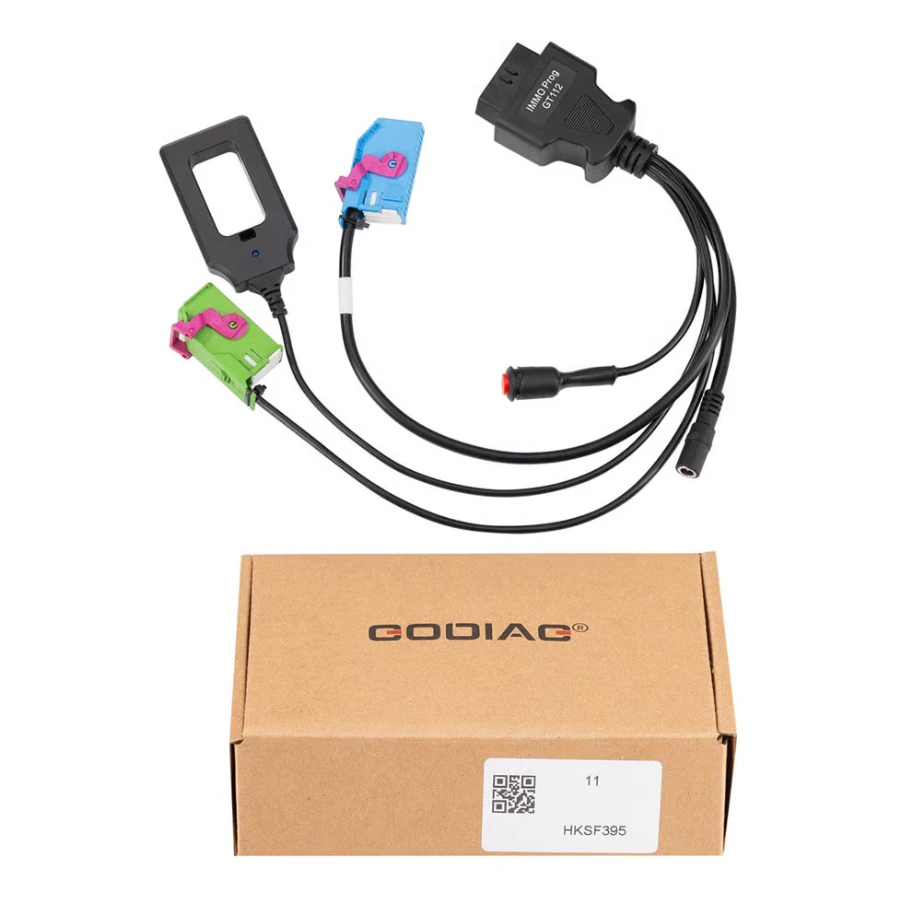

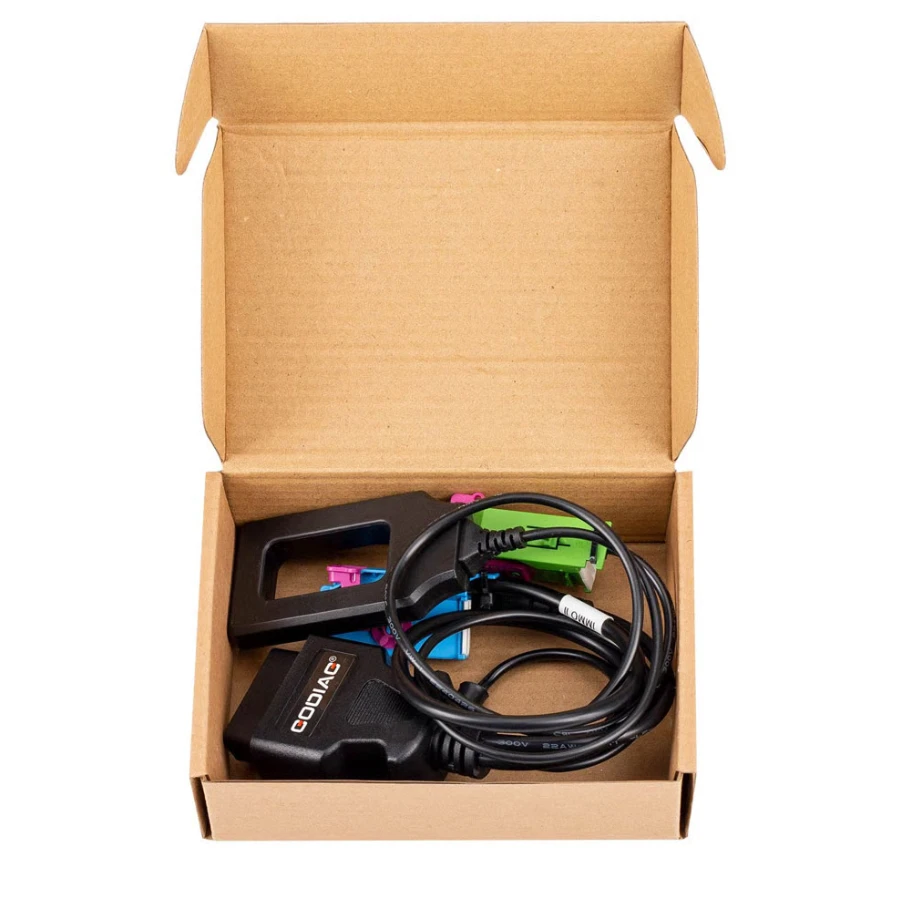

 GODIAG GT112 K-Line for VW Audi Skoda Seat 2nd & 3rd Generation Package includes:   1pc x GODIAG GT112 K-Line FOR VW Audi Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable
