GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS / HDS / TIS / Can Clip / Forscan / ScanMaster / SDD / PCM-Flash / ELM327 / J1979 Compatible Vehicle Universal Diagnostic & Programming Cable for OEM Software

The GODIAG GD101 J2534 is a high-performance interface that works as a professional "bridge" between your computer and a vehicle's electronic systems. Supporting both J2534 Passthru and ELM327 protocols, this cable is engineered to work with a vast range of original equipment manufacturer (OEM) diagnostic software, providing dealership-level capabilities at a fraction of the cost.

Whether you are performing routine maintenance, deep-level coding, or module programming, the GD101 delivers stable and high-speed data transmission. Its hardware is designed to automatically switch between protocols, ensuring seamless communication with almost any modern vehicle.

Core Functions & Capabilities

• OEM Diagnostic Support: Enables the use of official dealership software for deep-level scanning and troubleshooting.

• Module Programming: Supports ECU flashing and programming tasks when used with compatible J2534 software.

• Engine & Transmission Coding: Access and modify control module parameters for performance tuning or part replacement matching.

• Service Resets: Perform electronic parking brake (EPB) releases, oil service resets, DPF regenerations, and more.

• ELM327 Compatibility: Fully supports standard OBDII diagnostic apps for quick fault code reading and live data monitoring.

Compatible Software & Brand Support

The GD101 is a versatile "all-in-one" tool that supports the following professional software packages:

• Ford & Mazda: Supports IDS and Forscan for complete diagnostics and programming.

• Toyota & Lexus: Fully compatible with TIS (Techstream) for dealership-level service.

• Honda & Acura: Works with HDS (Honda Diagnostic System).

• Renault: Supports Can Clip for specialized European vehicle maintenance.

• Land Rover & Jaguar: Compatible with SDD (Symptom Driven Diagnostics).

• General Diagnostics: Supports ScanMaster and various J1979 compliant vehicle software.

• ECU Flashing: Optimized for PCM-Flash for technicians involved in chip tuning and firmware updates.

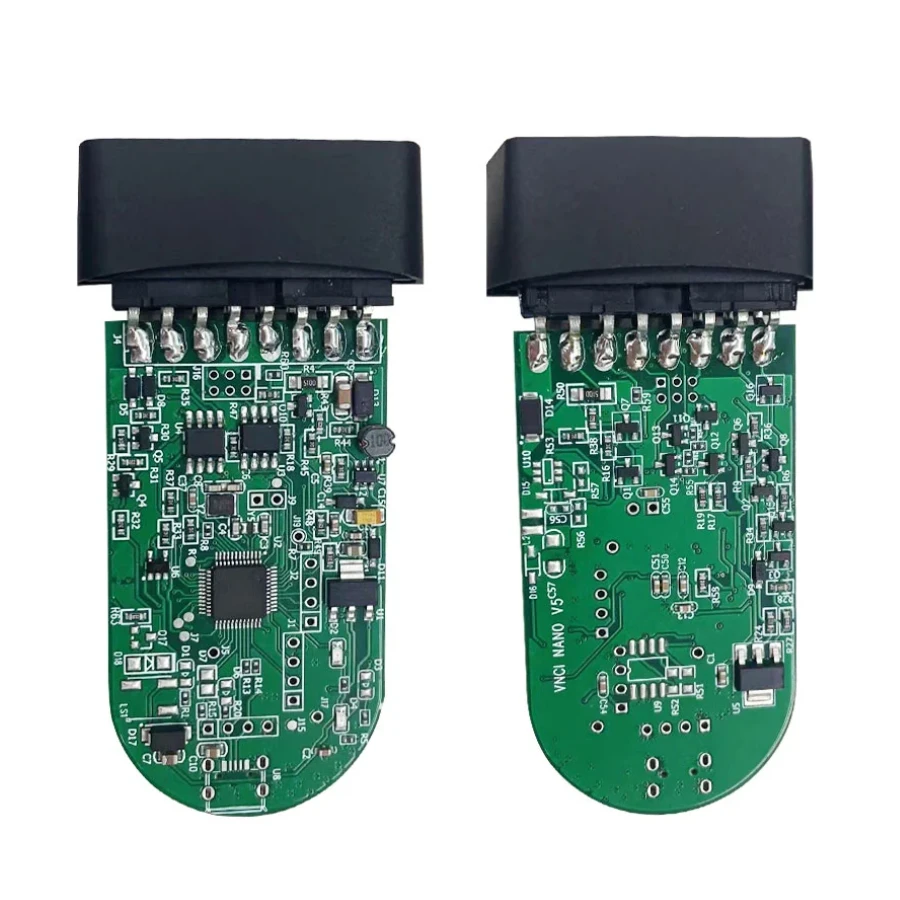

Technical Highlights

• High-Speed Communication: Built-in hardware acceleration for faster data transfer during programming.

• Voltage Protection: Engineered to handle fluctuating vehicle voltages safely.

• Dual-Mode Chipset: Native support for both J2534 and ELM327 protocols without needing separate adapters.

• USB Interface: Reliable wired connection to prevent the signal drops often found in Bluetooth or Wi-Fi scanners.
