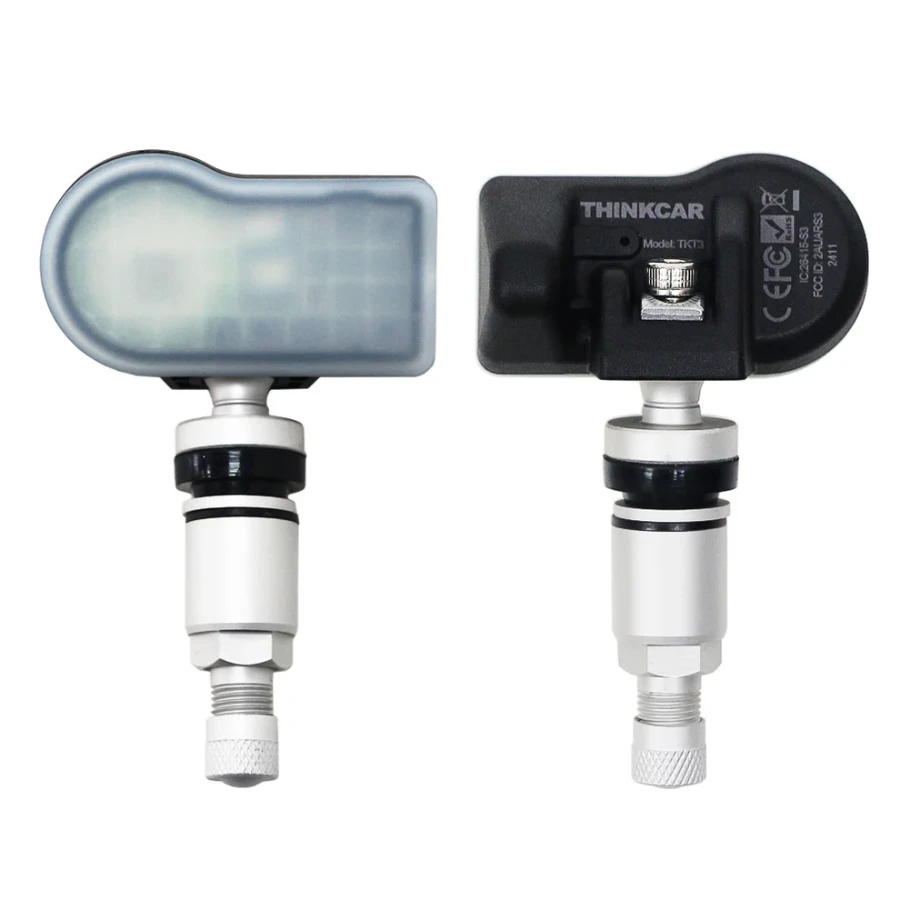

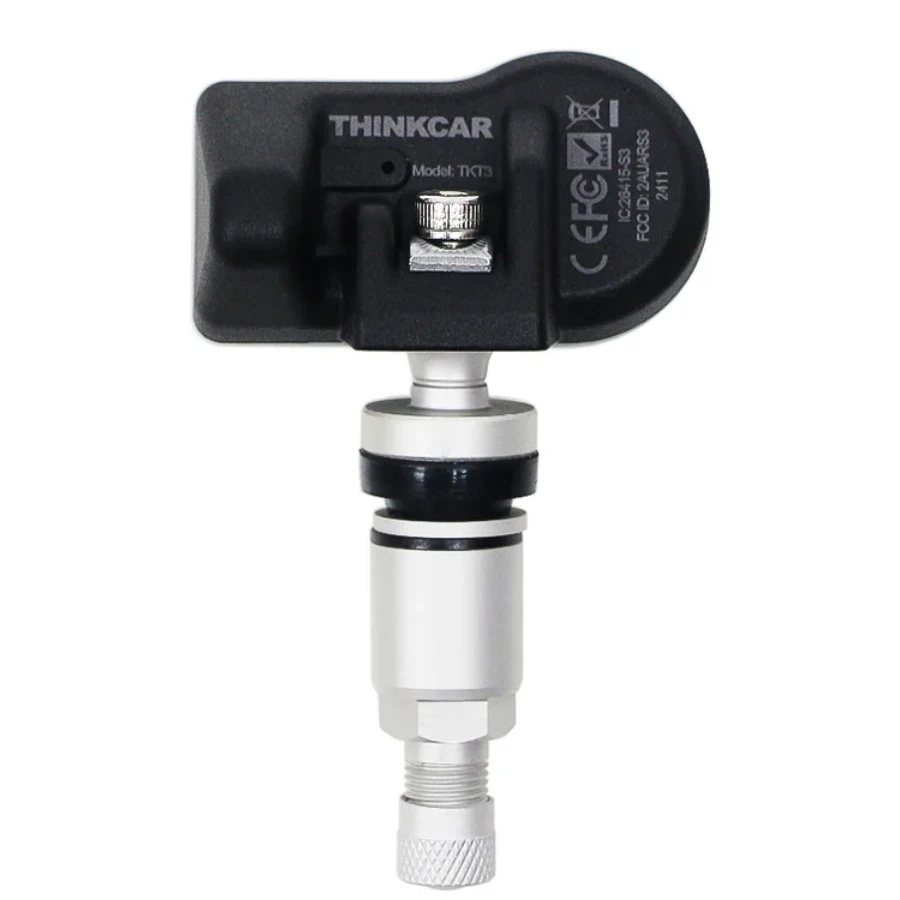

The THINKCAR S3 is a professional-grade, 2 in 1 universal programmable TPMS (Tire Pressure Monitoring System) sensor. Engineered to replace 98 percent of Original Equipment (OE) sensors on the market, the S3 combines both 315MHz and 433MHz frequencies into a single unit. This "all in one" design significantly reduces inventory costs for workshops and tire service centers while ensuring total vehicle coverage.

Built with an automotive-grade powerful chip and a high-precision air valve, the S3 sensor provides real-time monitoring of tire pressure and temperature with maximum accuracy. The sensor is designed for durability, featuring an high-performance battery with a service life of 4 to 6 years. It is built to withstand extreme environments, operating reliably in temperatures ranging from -40 degrees to 125 degrees Celsius.

The S3 sensor is fully programmable wirelessly using any THINKCAR TPMS tool. Its screw-in design allows for quick installation, and the adjustable valve angle ensures a perfect fit for almost any aluminum or steel rim.

Key Features and Specifications

• 2 in 1 Frequency: Integrated 315MHz and 433MHz support in one sensor.

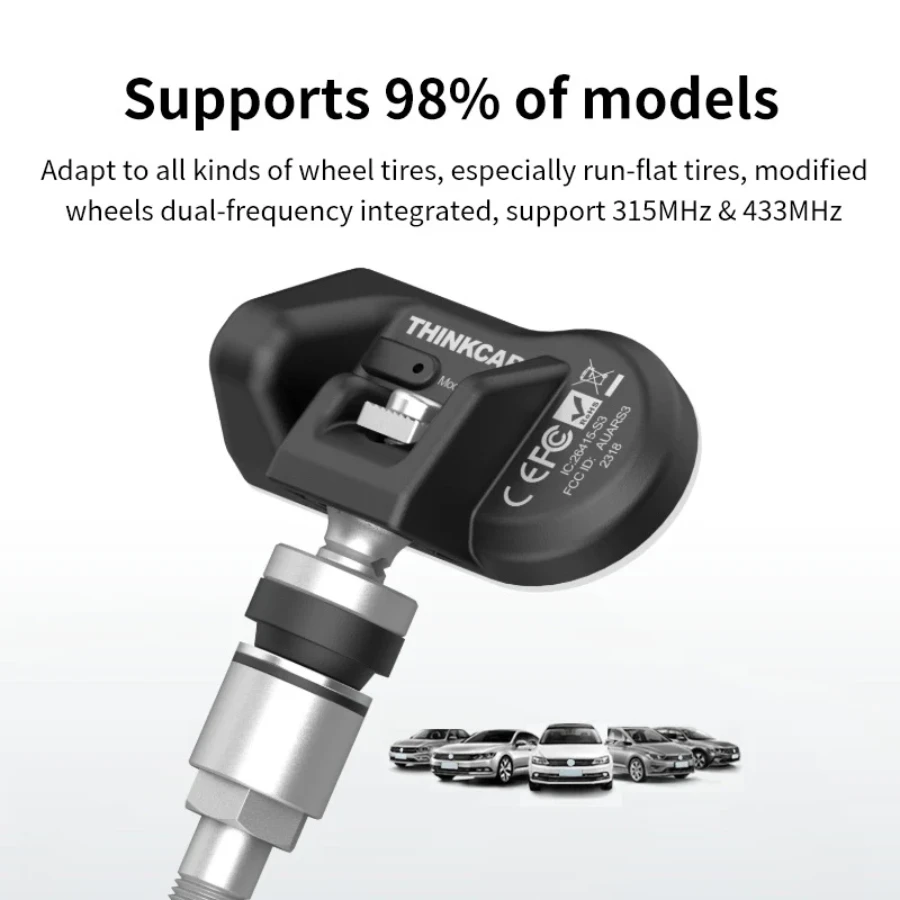

• 98% Vehicle Coverage: Replaces the majority of OE sensors for American, European, and Asian vehicles.

• High Precision Monitoring: Accuracy within 0.1 bar for pressure and 1 degree for temperature.

• Wireless Programming: Supports unlimited repeat programming with THINKCAR T-Wand 200, T90, and VENU iPro.

• Long Battery Life: High-capacity battery ensures 4 to 6 years of reliable operation.

• Extreme Weather Resistance: Rated for high-speed rotation and extreme temperature fluctuations.

• Easy Installation: Interchangeable valve design (Rubber or Metal) to suit different rim types.

Compatible Programming Tools

The THINKCAR S3 sensor is optimized for use with the following professional tools:

• THINKTPMS T90 and VENU iPro

• THINKCAR T-Wand 200 and T-Wand 100

• THINKTOOL Series (Master, Master X, Max, Expert 394, Lite)

Vehicle Support Range

• Minimum to Maximum: Supports older TPMS-equipped vehicles from the early 2000s up to the latest 2024–2026 models.

• Global Brands: Full support for Toyota, Honda, Nissan, BMW, Mercedes Benz, Audi, VW, Ford, GM, Chrysler, and more.
