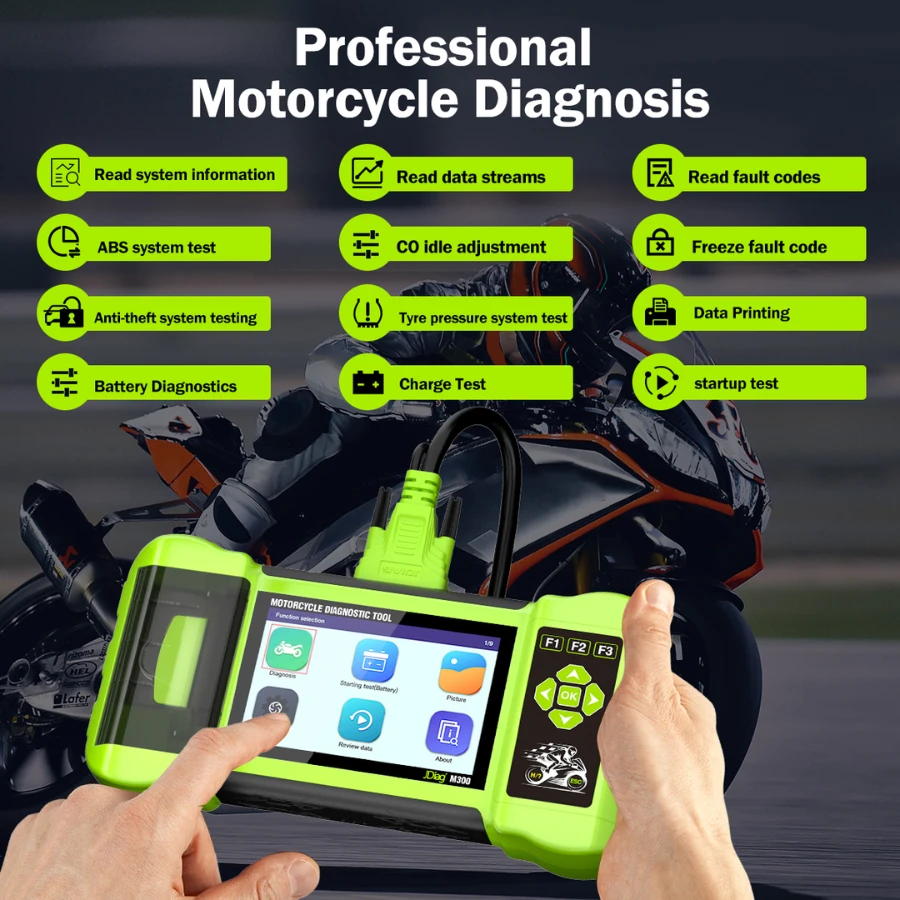

The M300 is a professional-grade handheld diagnostic tool designed to provide comprehensive maintenance and troubleshooting capabilities for a wide range of motorcycles. Equipped with a high-definition 5.0-inch color display, this device serves as both a fuel injection system scanner and a dedicated battery tester, making it an essential tool for workshops and motorcycle enthusiasts.

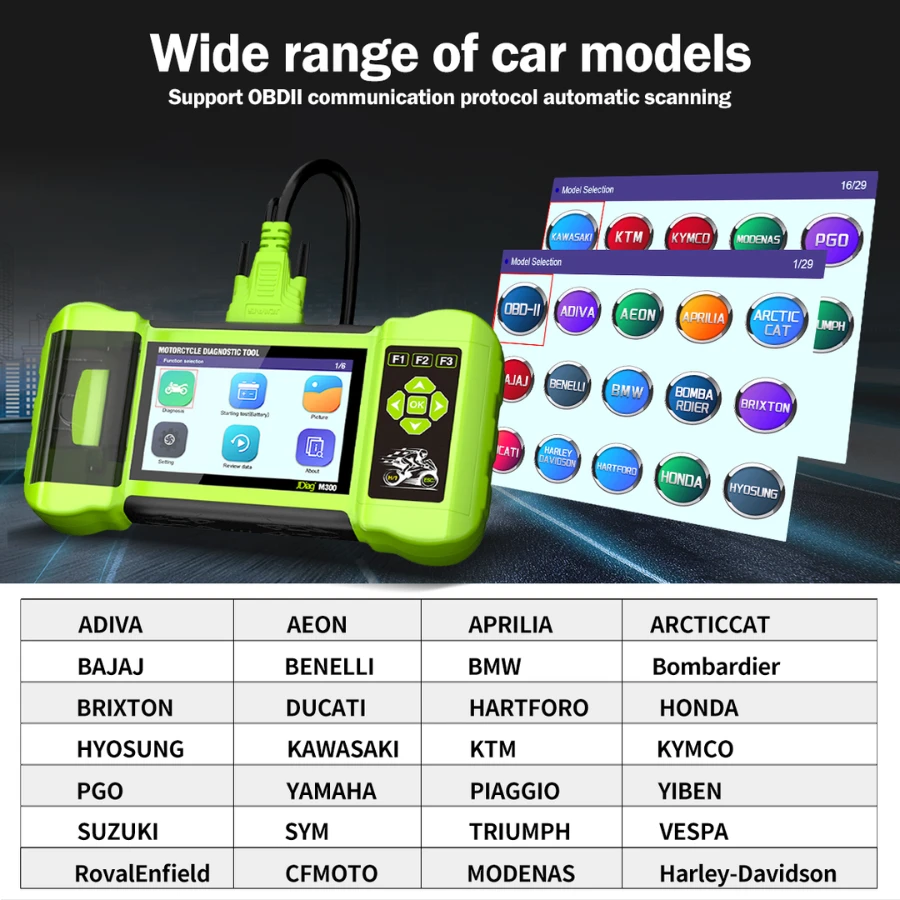

Supported Brand List

The M300 provides extensive coverage for major motorcycle manufacturers across the globe:

• Japanese Brands: Honda, Kawasaki, Suzuki, and Yamaha.

• European Brands: BMW, Ducati, KTM, Triumph, Aprilia, Benelli, Piaggio, Vespa, and Adiva.

• American Brands: Harley-Davidson, Arctic Cat, and BRP including Can-Am and Sea-Doo.

• Asian and Other Brands: SYM, Kymco, Hyosung, PGO, Aeon, Hartford, Bajaj, Royal Enfield, and Brixton.

• Universal Support: Fully compatible with all motorcycles that follow OBDII and EOBD standards.

Detailed Device Capabilities

This engine analyzer offers professional-level data and control for Electronic Fuel Injection (EFI) systems and battery health.

Engine Diagnostics and Analysis

• Fault Code Management: Quickly read and clear diagnostic trouble codes to identify issues and turn off the check engine light.

• Live Data Stream: Monitor real-time sensor information such as engine RPM, operating temperature, throttle position, and oxygen sensor data.

• Actuator Testing: Manually trigger components like fuel pumps, injectors, ignition coils, and cooling fans to verify their operational status.

• Maintenance Resets: Reset service interval lights and clear oil change reminders after maintenance.

• Advanced Adjustments: Perform CO idle speed adjustments and conduct thorough ABS system health checks on supported models.

• Freeze Frame Data: Capture and view the engine parameters exactly as they were at the moment a fault occurred for precise troubleshooting.

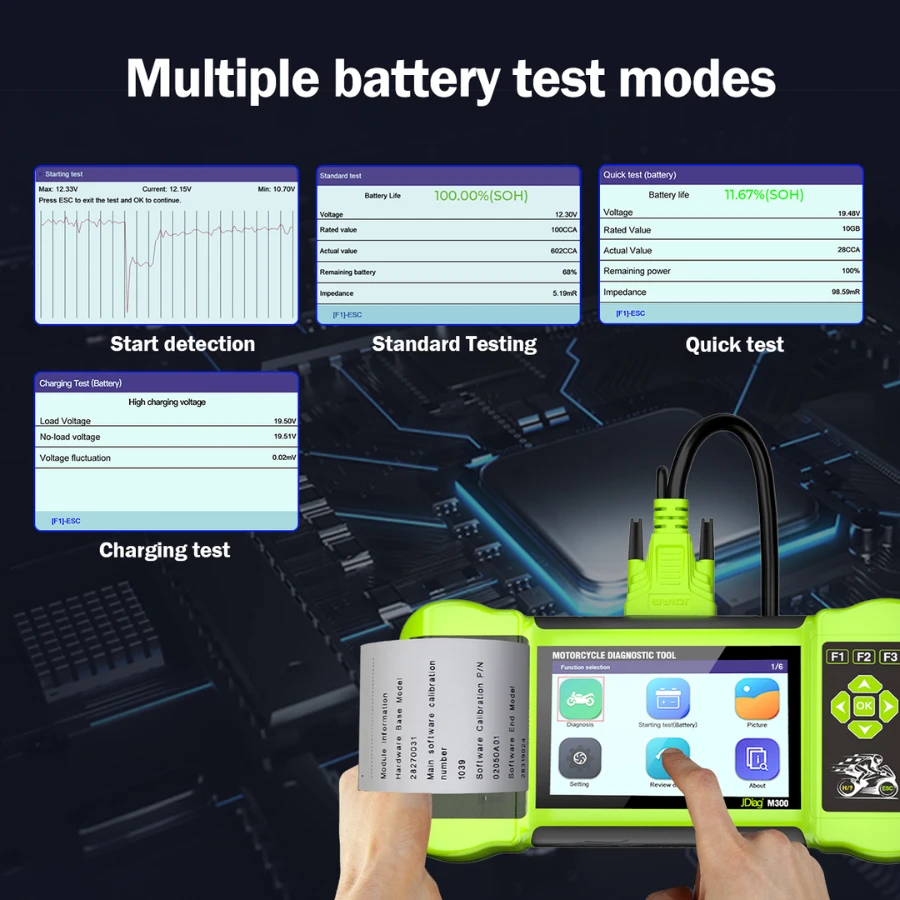

Battery and Charging System Testing

• Health Status: Analyze the overall battery condition, including internal resistance and Cold Cranking Amps.

• Cranking Test: Measure the voltage drop during engine startup to ensure the battery has sufficient power.

• Charging System Analysis: Test the alternator and stator output to confirm the battery is charging correctly while the engine is running.

How to Use the M300

The M300 is designed for straightforward operation in any garage or showroom environment.

1. Locate the Port: Find the diagnostic connector on the motorcycle, which is typically located under the seat or behind a side panel.

2. Connect the Device: Attach the specific adapter cable for your motorcycle brand to the M300 and plug it into the bike. The device will power on using the motorcycle's battery.

3. Power On: Turn the motorcycle ignition key to the ON position. It is best to keep the engine off during the initial scan.

4. Select the System: Use the menu to select the correct motorcycle manufacturer. You can choose Auto Scan for a rapid health check or Manual Select for specific modules like the Engine or ABS.

5. Diagnose and Repair: Navigate to Read Codes to see current issues or use the Data Stream to watch performance in real-time while the bike is running.

6. Software Updates: Connect the device to a computer via USB to download the latest software and brand databases for free, ensuring the tool stays updated with the latest models.
