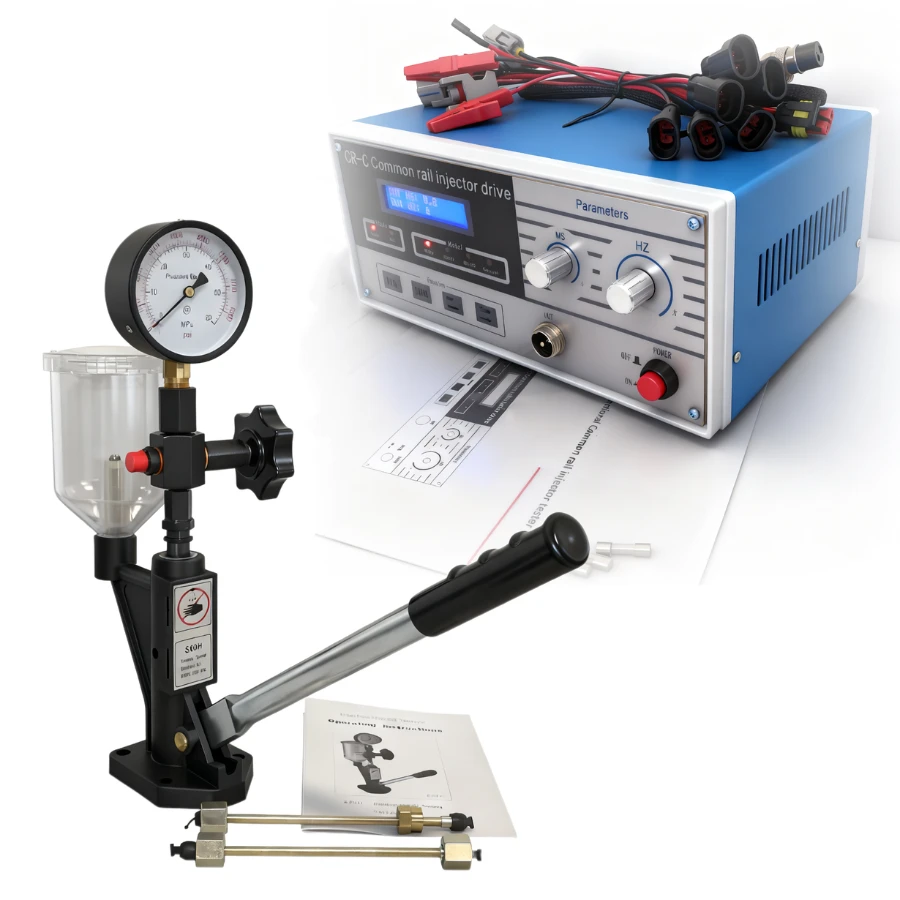

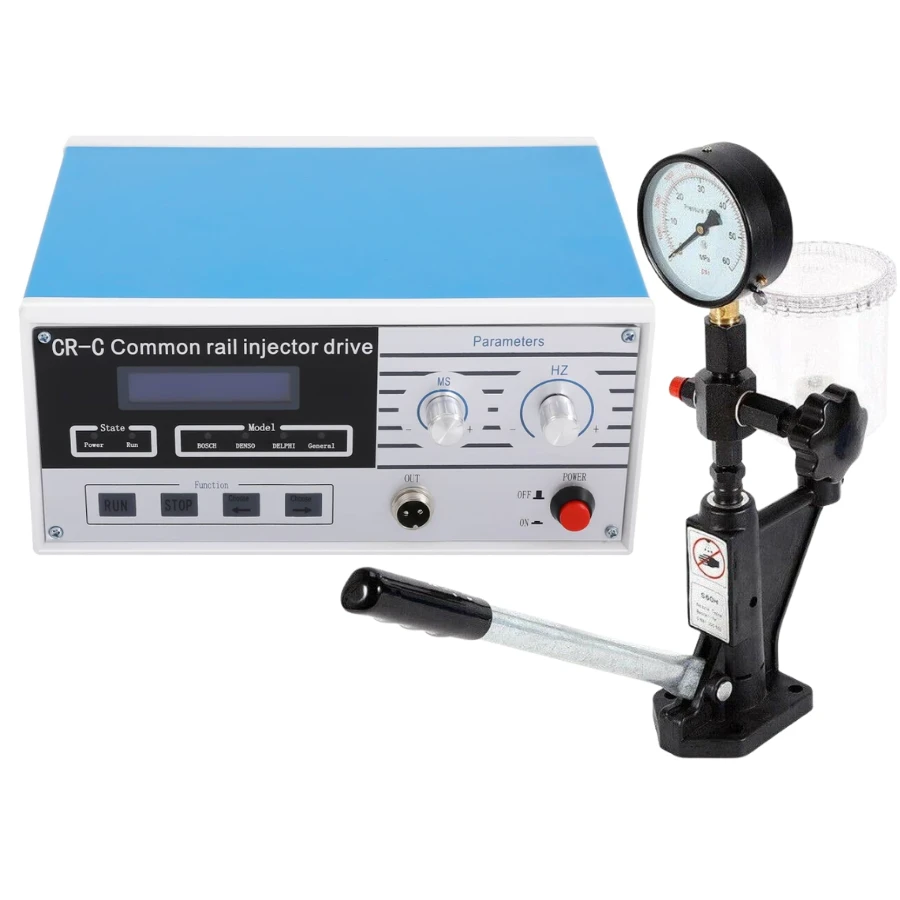

This professional grade kit combines two essential tools to provide a complete diagnostic and calibration station for both traditional mechanical and modern common rail diesel injectors.

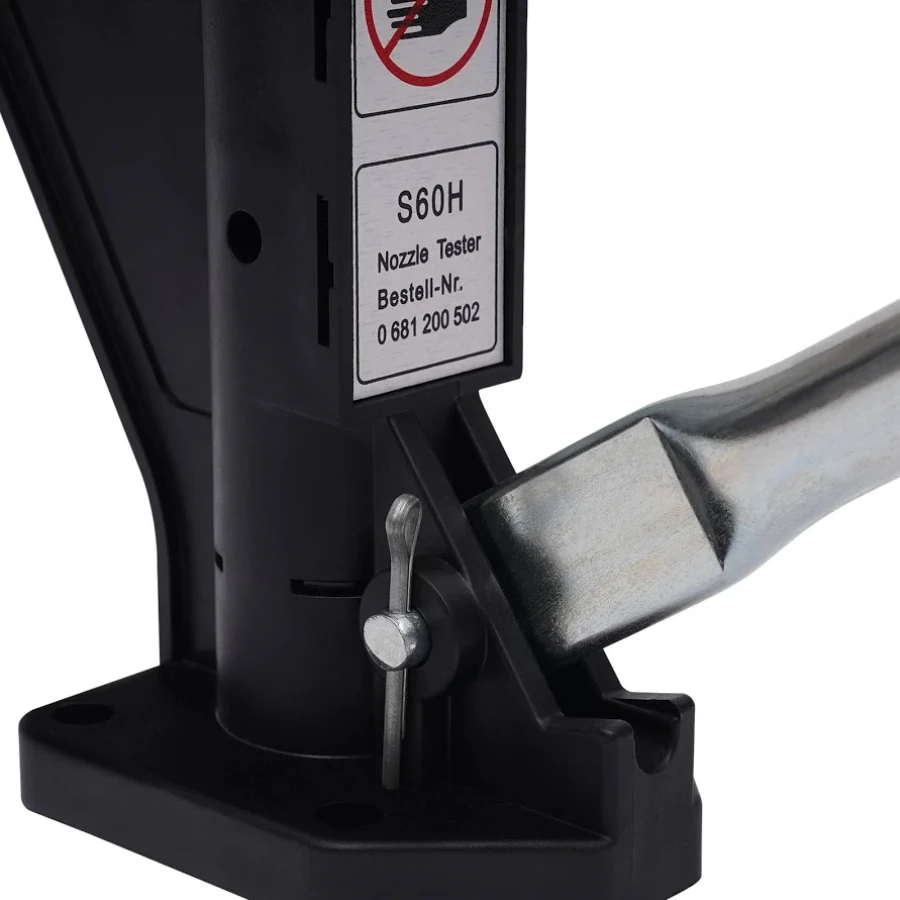

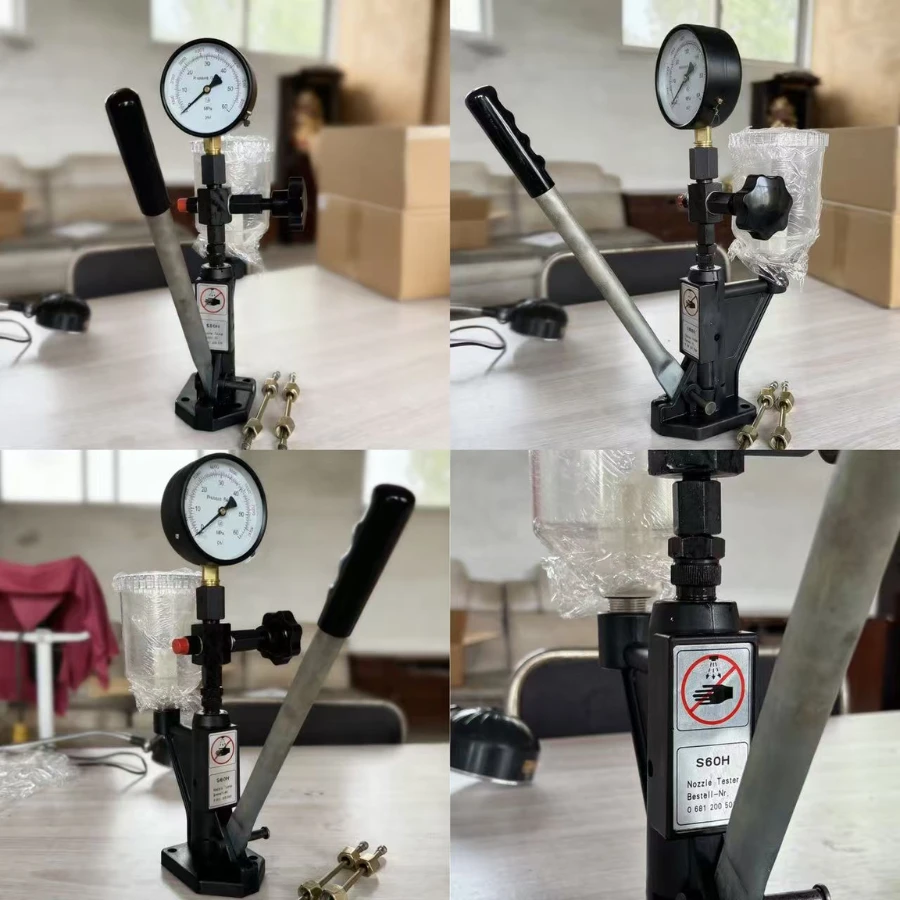

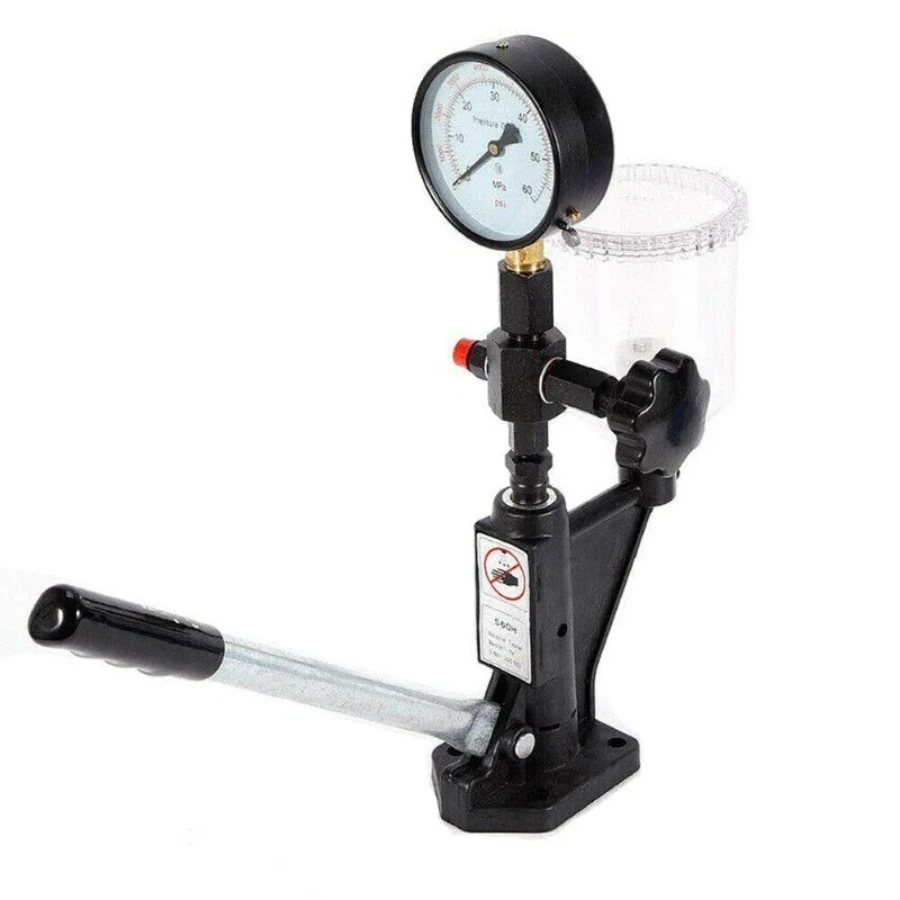

The S60H / PS400A Nozzle Tester is a high strength manual pump used to verify mechanical performance, including opening pressure, leakage, and spray atomization. It features a heavy duty cast iron body and a precision dual scale gauge (0 to 600 Bar / 0 to 8700 PSI) for accurate manual testing.

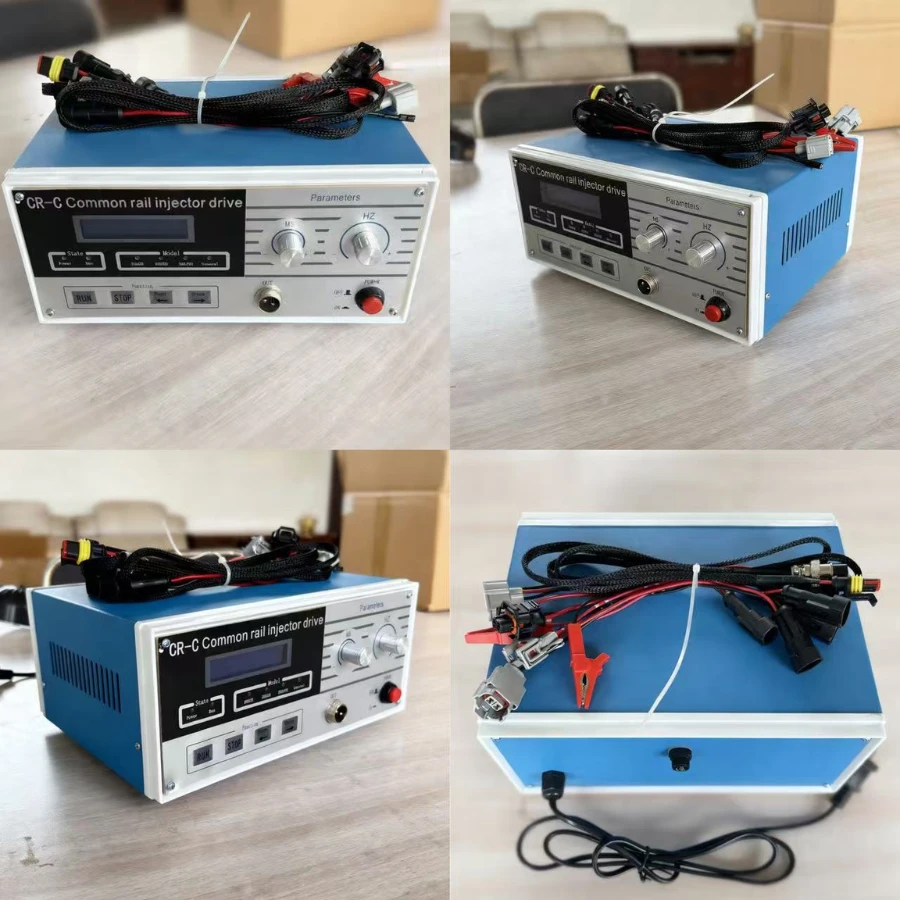

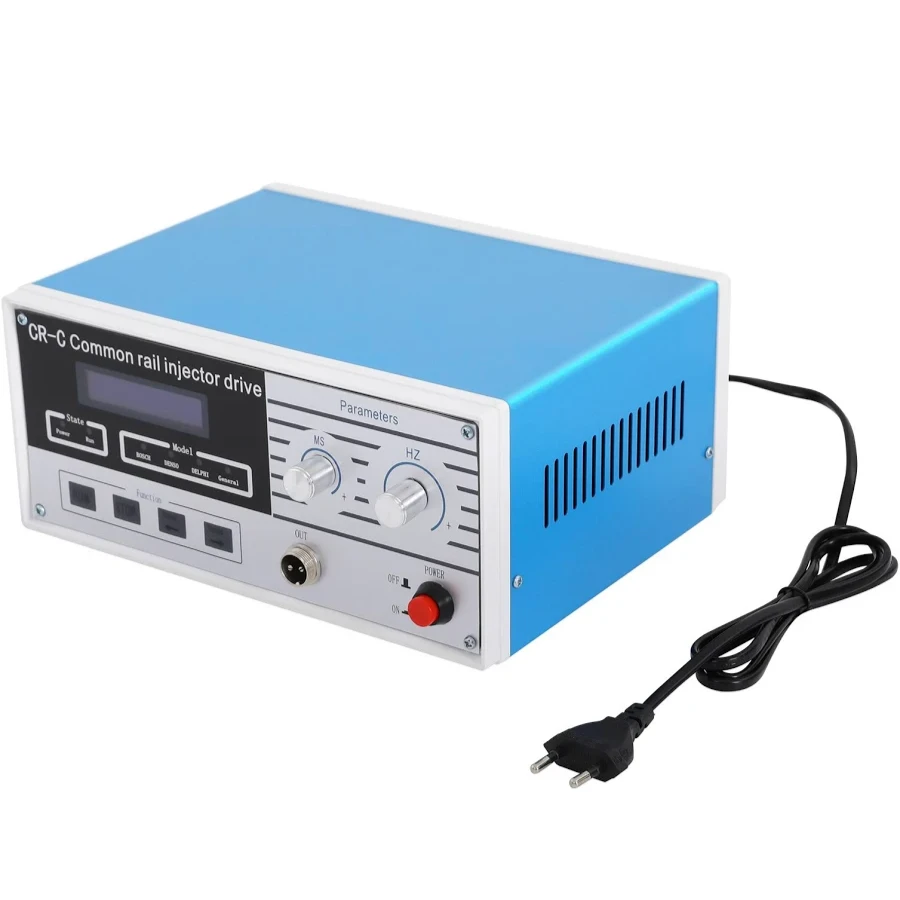

The CR-C Multifunction Tester acts as the electronic "brain" for the system. It simulates the driving signals from a vehicle Engine Control Unit (ECU) to drive electromagnetic common rail injectors. By combining the manual high pressure pump of the S60H with the electronic pulse signals of the CR-C, you can effectively test the full range of injector conditions including idle, pilot, emission, and full load states.

This set is an ideal investment for automotive workshops and diesel specialists looking for a reliable, portable, and cost effective solution for high pressure diesel fuel system maintenance.

Key Features and Functions

• Complete Injector Validation: Perform opening pressure tests, leakage tests, spray pattern atomization checks, and chatter characteristic tests.

• Electronic Pulse Simulation: The CR-C driver mimics real world ECU signals with adjustable pulse width (up to 10MS) and frequency (up to 30HZ).

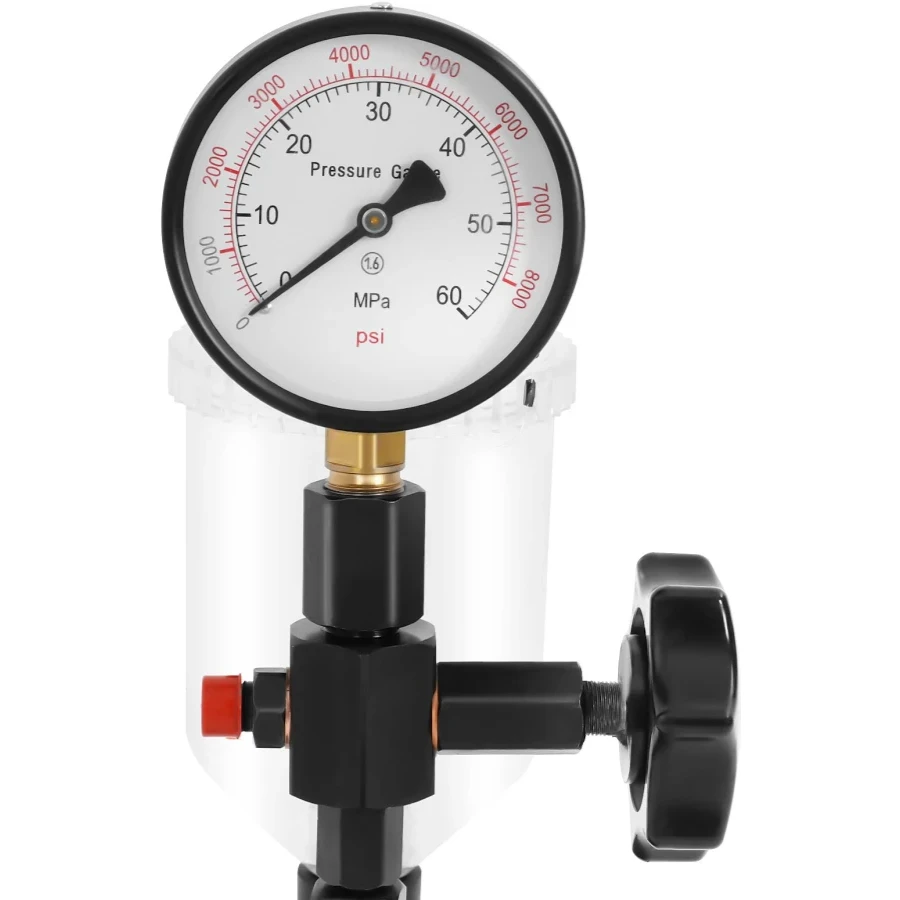

• Dual Scale Precision: High quality stainless steel gauge provides clear readings in both Bar and PSI.

• Durable Construction: Built with premium cast iron and high quality components designed for long term daily workshop use.

• Portable Design: Compact and easy to transport for on site diagnostics and emergency repairs.

Compatible Brands and Systems

The CR-C Multifunction Tester is designed for electromagnetic injectors and supports 98 percent of common rail brands, including:

• Bosch

• Denso

• Delphi

• Continental

• Most domestic and common electromagnetic types

Note: This kit is designed for electromagnetic injectors and does not support piezoelectric (Piezo) injectors.

Technical Specifications

• Pressure Range: 0 to 60 MPa (0 to 600 Bar / 0 to 8700 PSI)

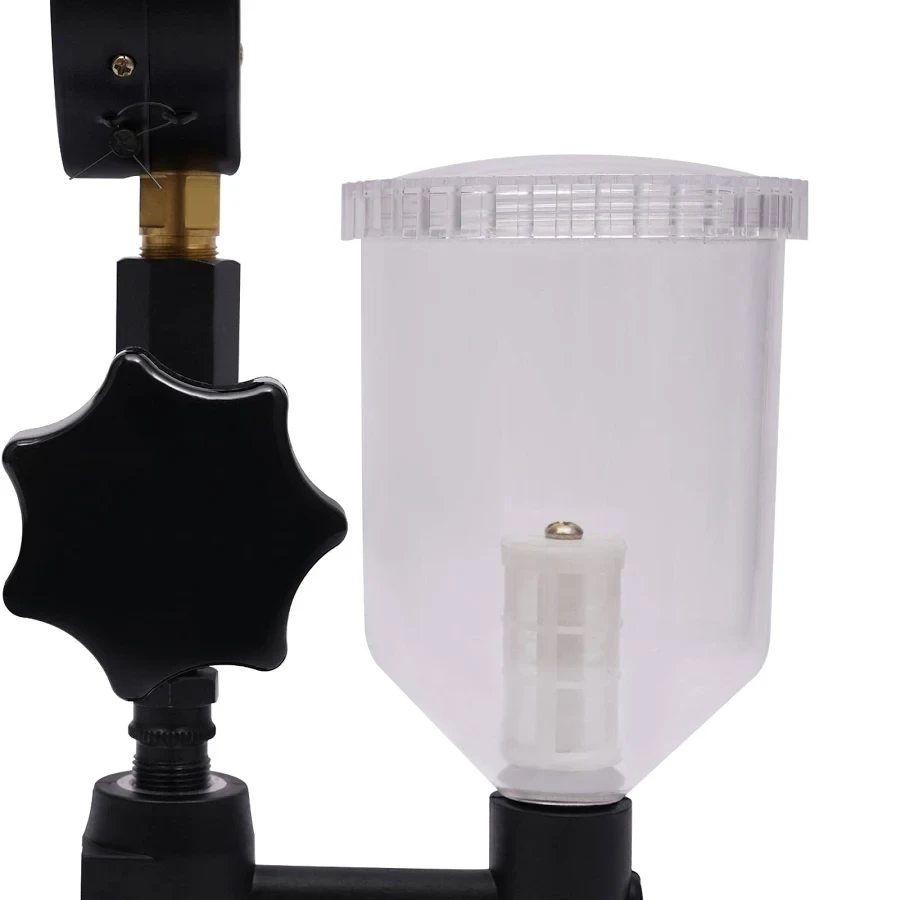

• Fuel Tank Capacity: 0.75L to 0.8L (model dependent)

• Nozzle Connectors Included: M14X1.5 to M14X1.5, M14X1.5 to M12X1.25, and M14X1.5 to M12X1.5

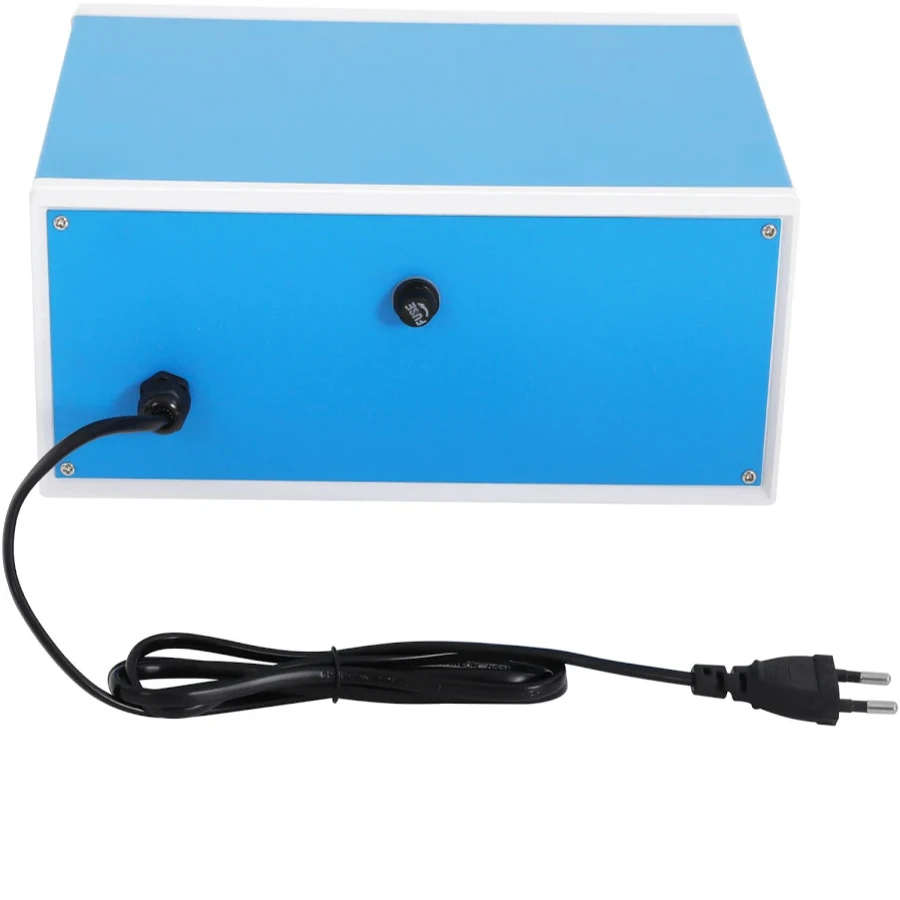

• CR-C Power Supply: AC 110V to 240V

• Adjustable Frequency: 1 to 30 HZ

• Adjustable Pulse Width: 10 MS
