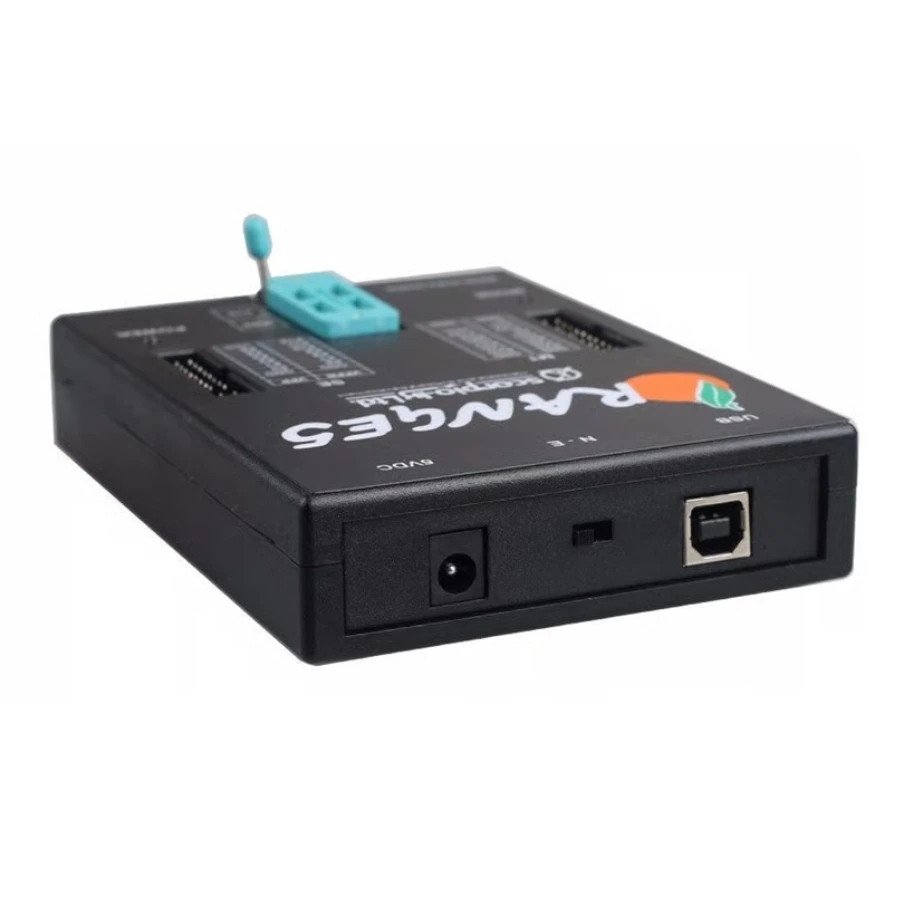

The Orange5 Plus is a professional-grade, multi-functional programming device designed for deep-level automotive electronics work. It is a universal tool used by locksmiths and ECU technicians for reading, writing, and erasing various memory types, including EEPROM, Flash, and Microcontrollers (MCU).

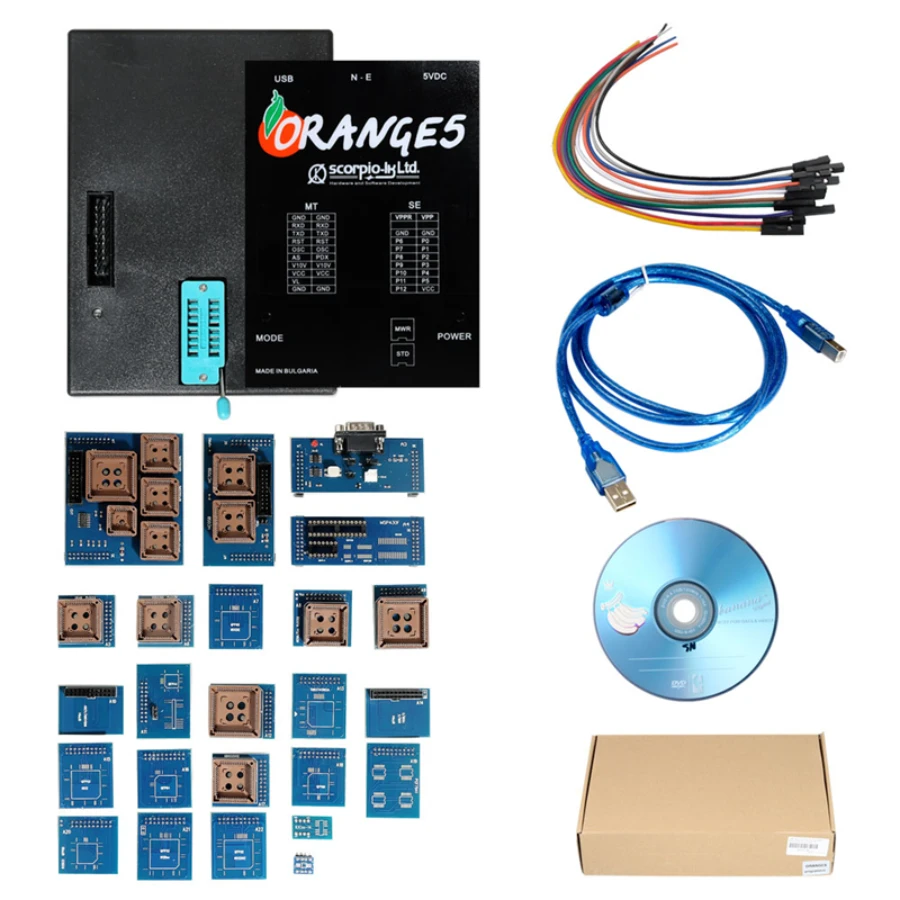

This OEM version comes with the Full Universal Adapter Set, allowing you to interface with a massive variety of vehicle modules without the need for complex manual soldering in many cases. Whether you are performing airbag resets, mileage corrections, or immobilizer bypasses, the Orange5 Plus provides the stability and hardware speed required for sensitive data operations.

Checkable Modules & Functionality Details

The Orange5 Plus is capable of interfacing with and programming the following automotive modules:

• Immobilizer (IMMO) & Key Modules:

  • Key Transponder Programming: Read and write data for vehicle keys and immobilizer chips.

  • Pin Code Extraction: Extract security pin codes directly from the IMMO dump to program new keys.

• Airbag Control Units (SRS):

  • Crash Data Reset: Clear "Crash Data" stored in the airbag module after an accident to make the module reusable.

• Dashboard & Instrument Clusters:

  • EEPROM Data Repair: Fix corrupted data within instrument clusters or perform mileage data adjustment for replacement units.

• Engine Control Units (ECU):

  • EEPROM/Flash Reading: Access the core memory of the ECU for cloning or removing software restrictions.

• Body Control Modules (BCM) & Specialized Electronics:

  • Supports reading specialized MCUs found in comfort modules, lighting controllers, and central locking systems.

Hardware & Adapter Capabilities

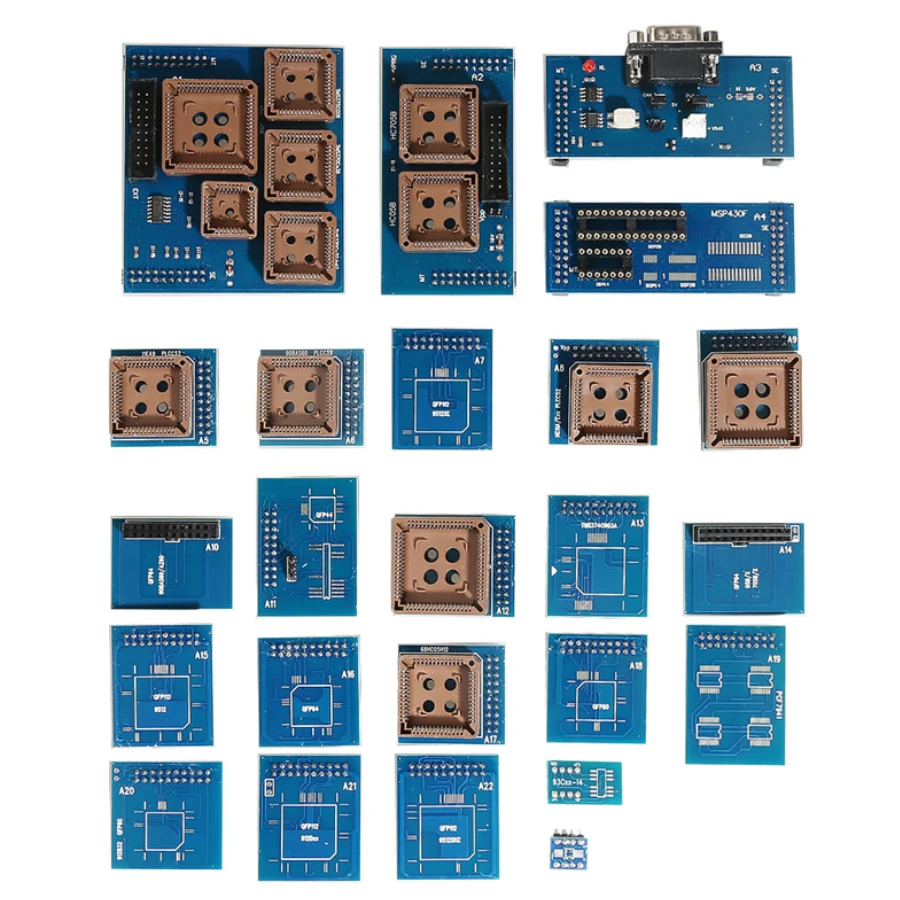

The Full Adapter Set V1.35 expands the tool's reach to include:

1. MCU Adapters: Specifically for Motorola, TMS, and Renesas microcontrollers often found in Mercedes, BMW, and VAG modules.

2. EEPROM Adapters: Standard 8-pin and specialized SOIC/SSOP clips for quick reading of memory chips.

3. In-Circuit Programming (ISP): Allows for reading many chips while they are still attached to the circuit board, saving significant time.

4. Voltage Control: Built-in ability to adjust power levels to safely wake up older or low-voltage chips without causing damage.

Why Technicians Choose Orange5 Plus

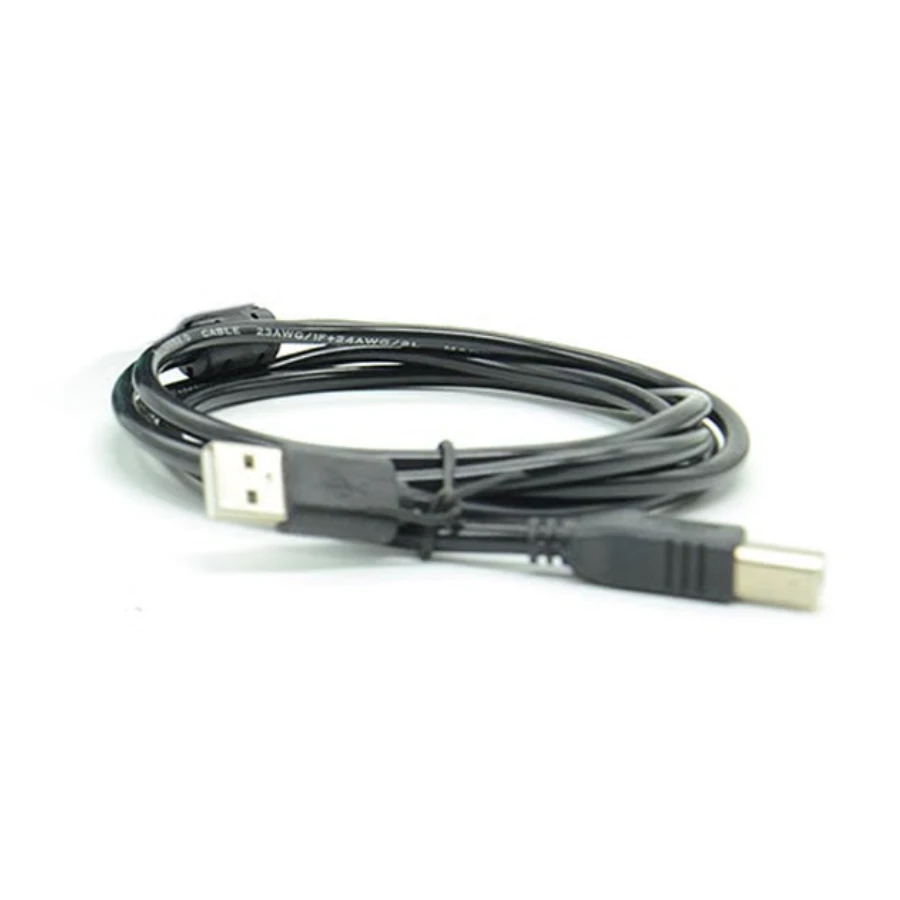

• USB Powered: No external power supply is needed for most operations, making it highly portable.

• High-Speed Interface: Hardware is optimized for fast data transfer, reducing the risk of "timed-out" errors during writing.

• Multi-Language Support: The software interface is intuitive and supports multiple languages for global use.
