The Iprog+ Pro V87 Full Kit is the most complete version of this powerful automotive microelectronics tool. While the basic sets only handle standard OBDII tasks, this Full Configuration Kit includes the specialized adapters required for "on-the-bench" work, in-circuit programming (ISP), and advanced security bypasses.

Designed to replace three separate tools—the Key Programmer, Digiprog3, and Carprog—this kit gives you deep-level access to the vehicle’s "brain" (ECU), safety systems (Airbag), and security layers (IMMO). It is the ultimate choice for professionals in the UAE looking to handle all keys lost, airbag module recovery, and dashboard repairs.

Checkable Modules & Functionality Details

The Iprog+ V87 Full Kit is engineered to check and program the following specialized modules:

• Airbag (SRS) Control Units:

  • Crash Data Recovery: Deep-level erasing of "impact data" stored in the memory after an accident.

  • DTC & CFG Repair: Reads and erases specific Diagnostic Trouble Codes and repairs configuration data to reactivate the safety system.

• Immobilizer (IMMO) & Key Modules:

  • Transponder Cloning: Supports 125kHz and 134kHz RFID chips.

  • Toyota Smart Key Reset: Specialized scripts for "Virginizing" used smart keys and preparing them for a new vehicle.

  • Key Writing by Dump: Generate a working key directly from the data file read from the IMMO or ECU memory.

• Engine Control Units (ECU):

  • IMMO OFF: Disables the immobilizer system for testing or ECU swaps.

  • DPF/EGR/EVAP Off: Modifies the ECU dump to disable emission-related components (for off-road or diagnostic use).

• Instrument Clusters (Dashboards):

  • KM & Odometer Calibration: High-precision adjustment of mileage when replacing faulty clusters to ensure the display matches the vehicle's actual history.

• Advanced Microcontrollers (MCU):

  • Read and write data from high-security chips including Atmel, Fujitsu, Microchip, Motorola (912 series), and NEC v850.

• Infotainment & Body Electronics:

  • Radio Decoding: Unlocks tape and CD players by retrieving lost security codes.

  • PIN ABS: Reads the security PIN codes directly from the ABS system.

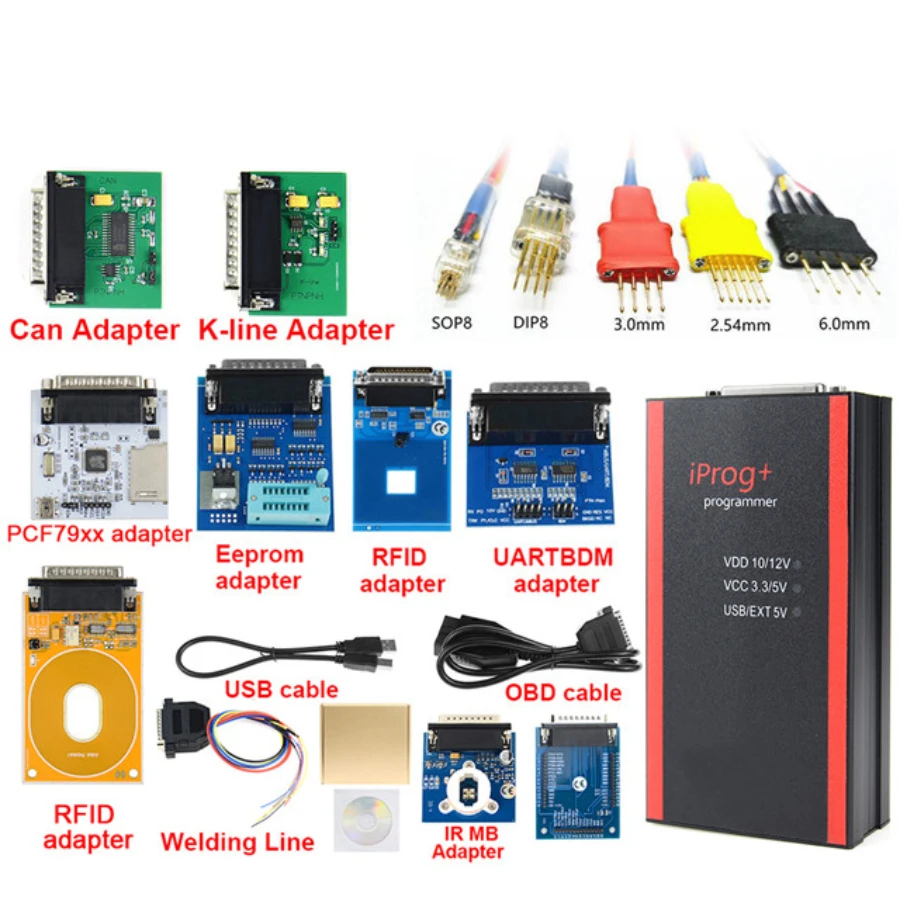

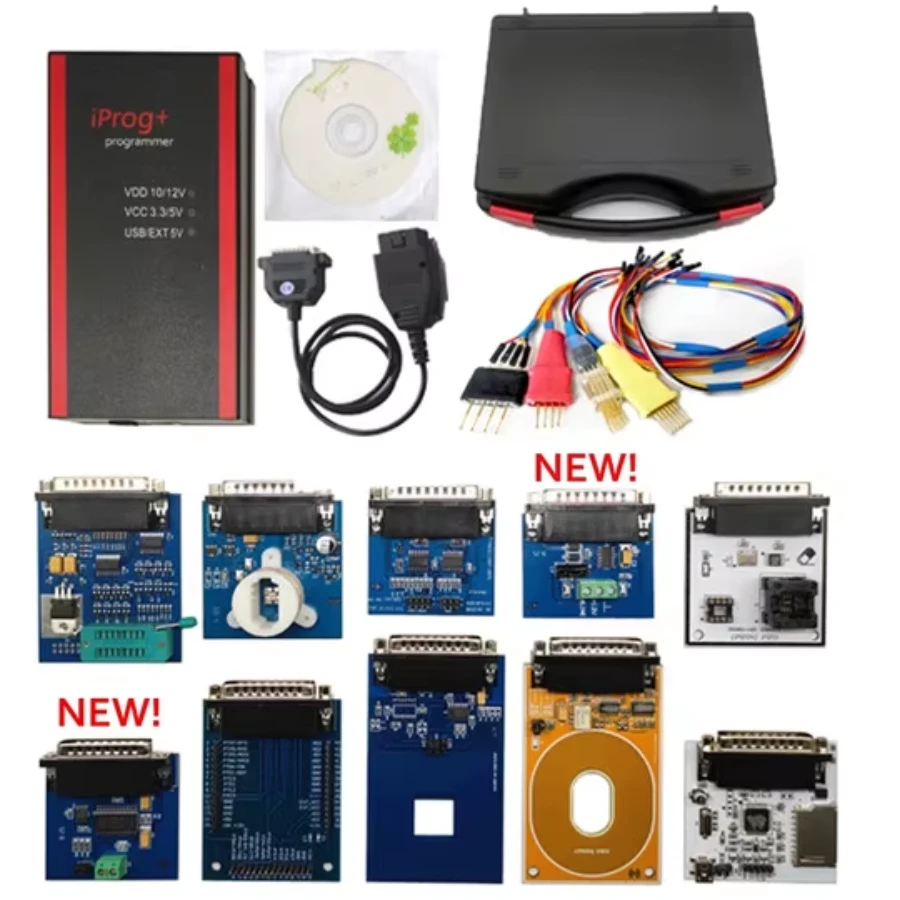

Complete Full Kit Adapter List

This is the Full Kit, meaning you receive all necessary hardware for bench work:

1. Iprog+ Main Unit (Stable V87 Hardware)

2. RFID 125+134 Adapter: For all standard car keys.

3. EEPROM Adapter: For standard memory chip reading.

4. UART/BDM Adapter: For NEC and Motorola wiring.

5. CAN Adapter: For modern high-speed vehicle networks.

6. K-line Adapter: For older diagnostic communication.

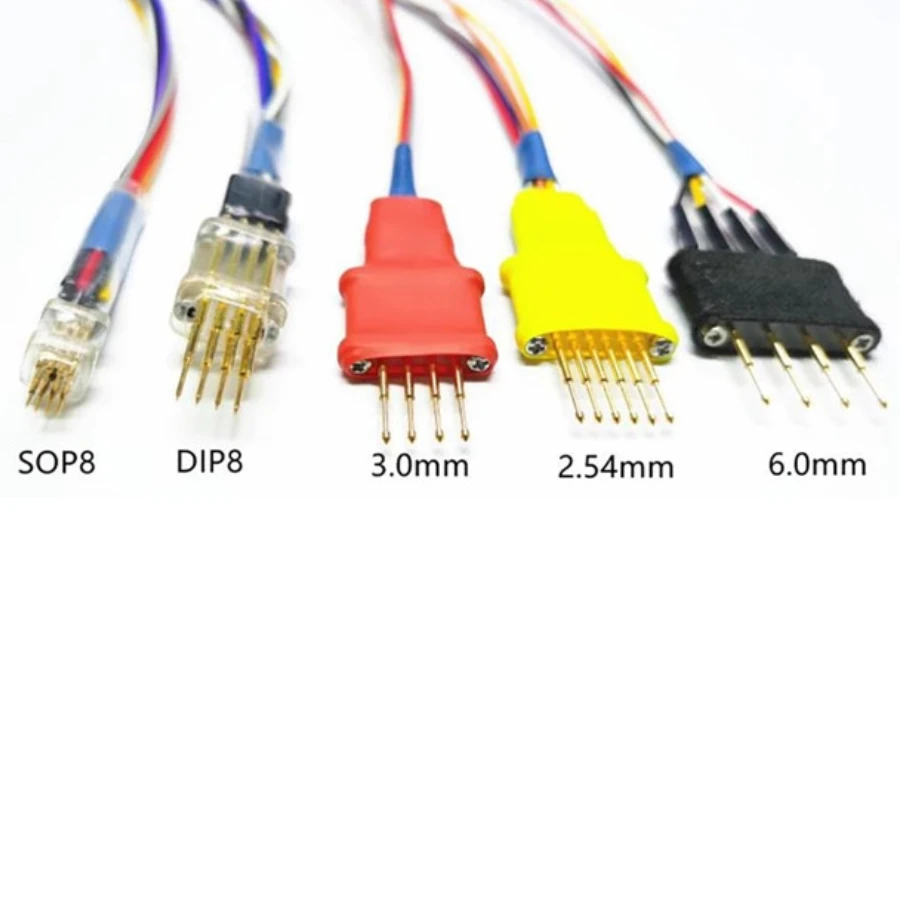

7. Welding/Probe Line Set: For in-circuit programming without removing chips.

8. 35080/160 Erase Adapter: Specialized for BMW and high-security dashboard chips.

9. PCF79XX Adapter: For advanced Philips transponder chips.

10. IR MB Adapter: For Mercedes-Benz Infrared key data.

11. OBDII Cable: For direct vehicle diagnostics.
