The GM MDI 2 is the next-generation official dealership-level interface designed for comprehensive diagnostics and programming of General Motors vehicles. It replaces the original MDI with significantly increased processing power and enhanced security for both current "Global A" and future "Global B" vehicle architectures, including support for CAN FD and DoIP protocols.

Online & Offline Working Capabilities

• Original Software Support: Fully compatible with official GM dealership software:

  • GDS2 (Global Diagnostic System 2): For 2010 to 2026+ models.

  • Tech2Win: Official emulator for legacy vehicles (1996–2013).

  • SPS2 (Service Programming System): For ECU flashing and calibrations.

• Online Working: Required for the latest ECU calibrations, firmware updates, and security access through the GM Techline Connect (ACDelco) portal. This ensures you have the most recent factory files.

• Offline Working: Standard diagnostics, such as reading/clearing DTCs, viewing live data, and performing active tests via GDS2 or Tech2Win, can be performed offline once the software is authorized. However, most programming on vehicles after 2009 requires an active online GM account.

Checkable Modules & Functionality Details

The GM MDI 2 provides full "dealer-level" access to every electronic module on the vehicle network:

• Powertrain Control Modules (PCM/ECM): Full diagnostics, live data streaming, and reprogramming for engine and transmission management.

• Safety Systems (Airbag/SRS/ABS): Resetting crash data, monitoring wheel speed sensors, and performing automated brake bleeds or airbag module installation.

• Body Control Modules (BCM): Testing and configuring interior electronics, lighting, power windows, and central locking systems.

• Instrument Cluster: Calibration and programming of digital dashboards and driver information centers.

• Immobilizer & Security (VTA): Security access for key programming, remote start adaptation, and anti-theft system matching.

• Chassis & Network: Complete scanning of high-speed and low-speed GMLAN buses to identify communication faults across the entire vehicle architecture.

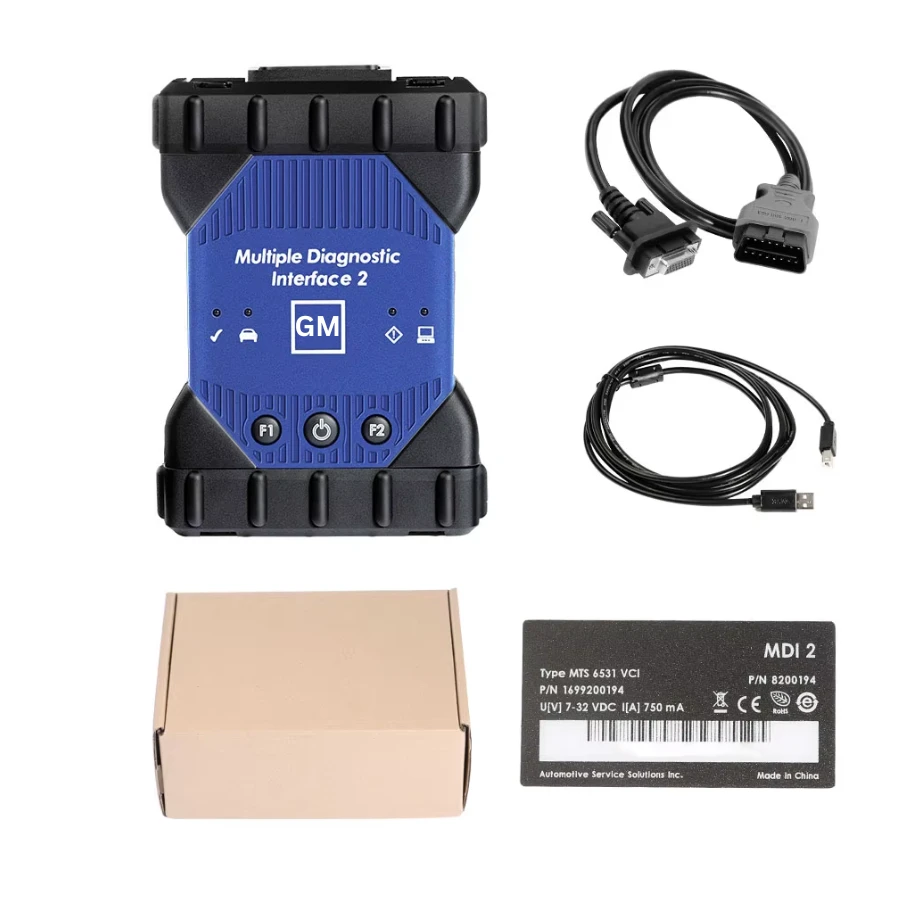

Full Kit Package List

This is the Full Kit configuration designed for a professional "plug-and-play" experience in the UAE:

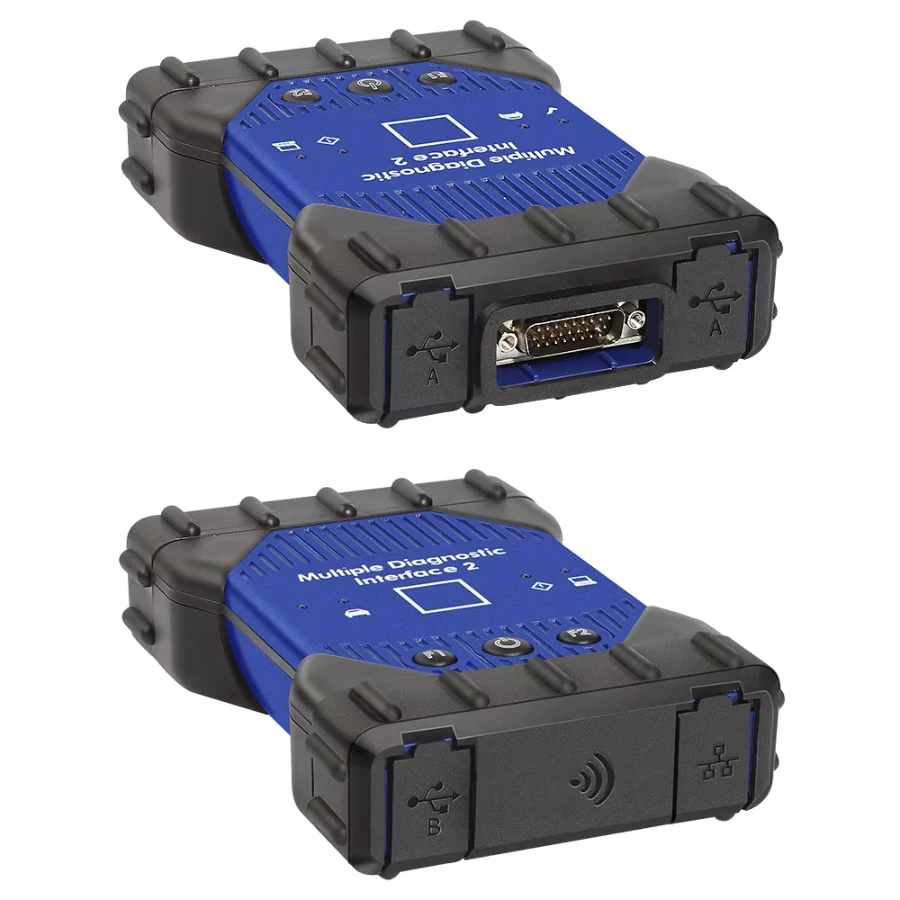

1. GM MDI 2 Main Unit: Ruggedized multiplexer with internal WiFi card.

2. DLC Cable (SAE J1962): A new, longer 2-meter cable for convenient vehicle connection.

3. USB Cable (10-ft): High-speed cable for secure wired programming and firmware updates.

4. Ethernet Cable: For direct wired shop network connection.

5. WiFi Adapters: Two D-Link wireless USB dongles to ensure stable point-to-point wireless communication between the device and your PC.

6. Software Solution: Available with a pre-installed 256GB SSD containing GDS2 and Tech2Win for immediate use.
