Applications and advantages of the new MCU3 adapter:
-For ADAS Advanced Driving Assist System
-For Audi VW MQB gearbox replacement
-For BMW continental msv90 engine ecu replacement and cloning
-For Peugeot Key Programming
-For Mercedes Benz transmission deleted and operating instructions vgs nag2 vgs2 nag2 and vgs3 nag2

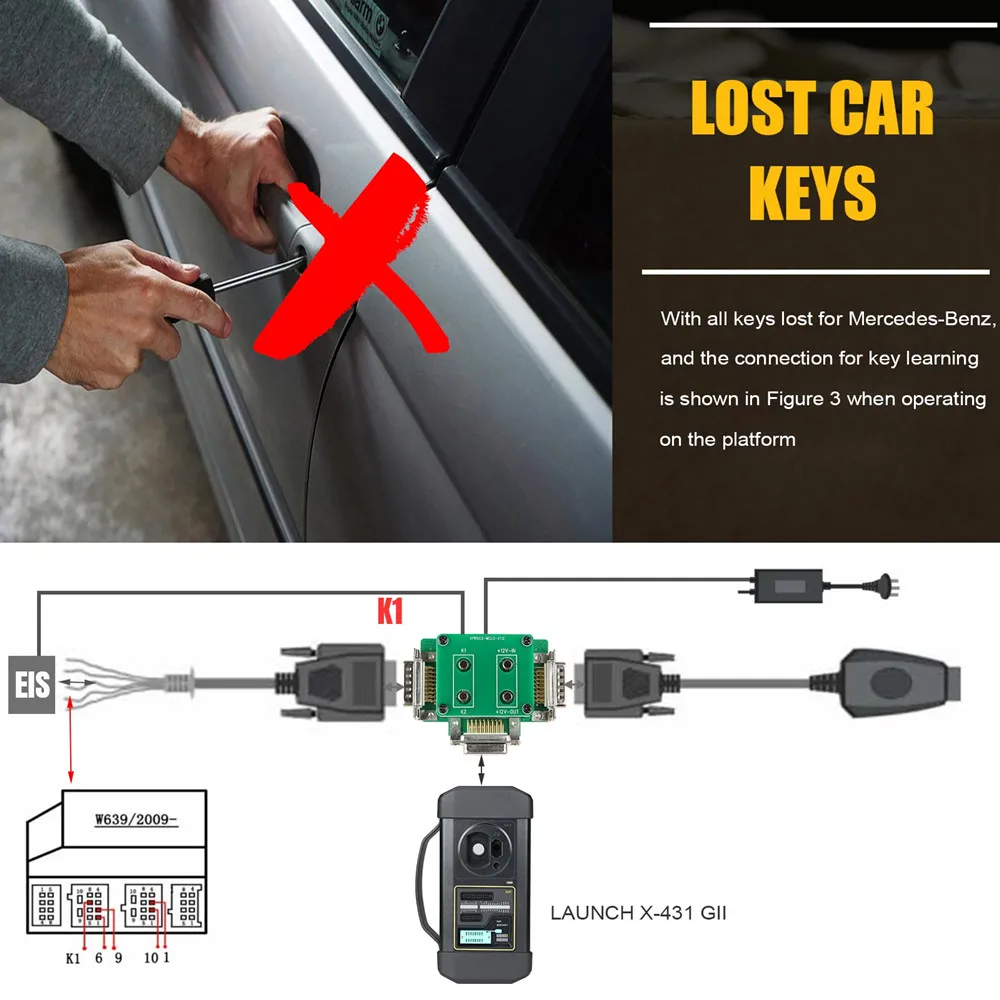

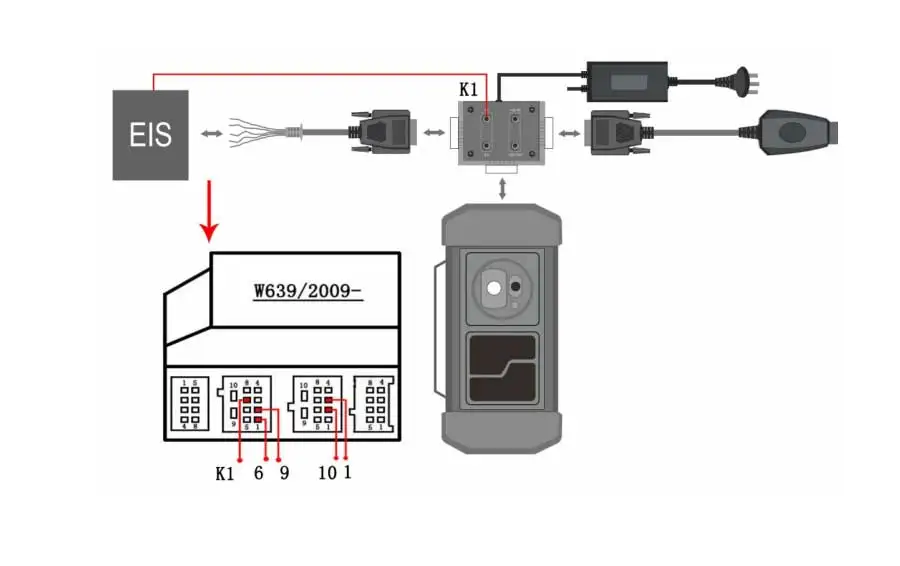

-For Mercedes Benz w164 2009 Key Programming
-For Volkswagen Audi 5th generation engine reading engine data via direct connection and online programming and coding
-For BMW E chassis 8hp EGS deleted
-For BMW 8hp chassis F and G delete function
-Key programming cas4/cas4+ all keys lost and adding keys
-Programming cas1 cas2 cas3 cas3+ lost keys and add key
-CAS4 immobilizer module replacement
-Replacement for Volkswagen Audi engine and reading data med17 and edc17
-For Mercedes Benz med9.7 ecu deleted
-For Volkswagen Audi Replacement 4th Generation Instrument Replacement
-Engine replacement for Volkswagen Audi MED17.5.22
-Programming of lost keys and adding key for Pors-che Cayenne 2011 2017
-Cloning and virginization e39 ac delco
-Power shift cloning and virginization
-For Nissan ecu and Tcm conversion and virgin ecu programming and calibrations
-Special features for Ch-r-ysler and registration at autoauth FCA sgw
-Special features for GM and for Ford
When is it can be used?

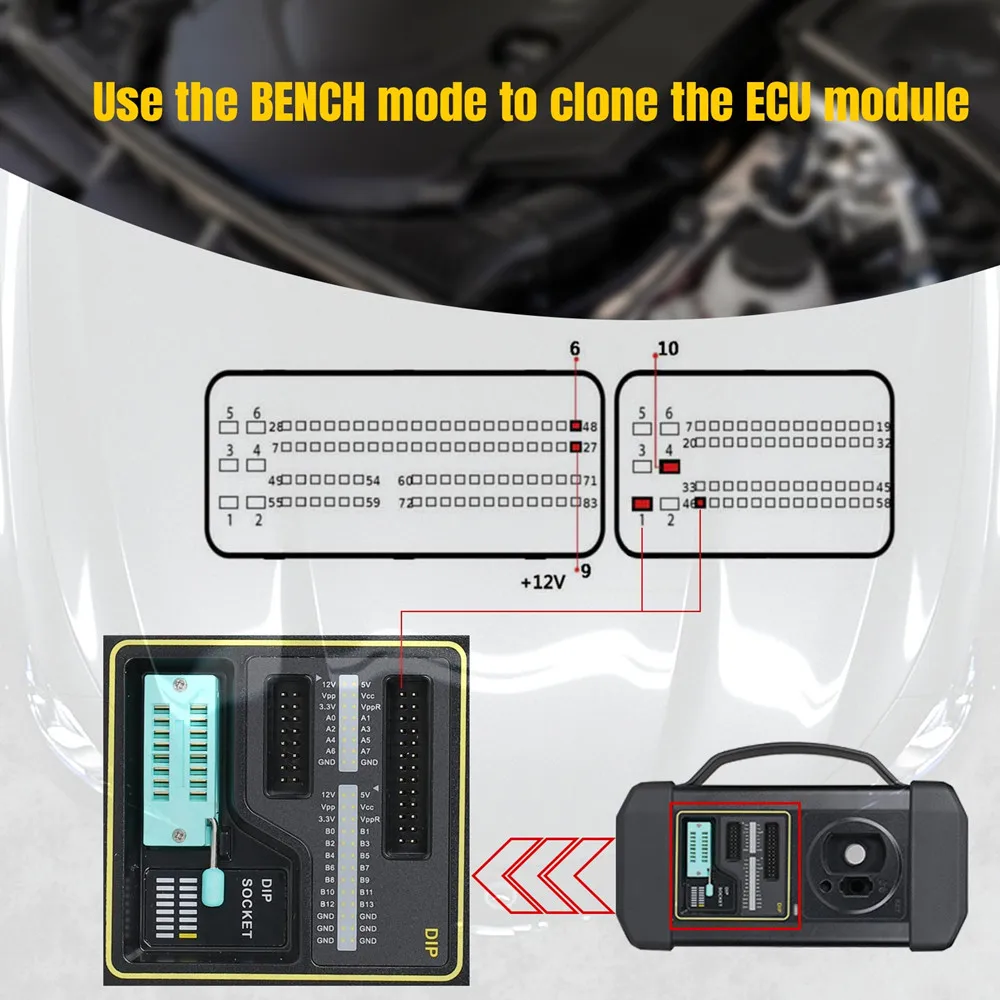

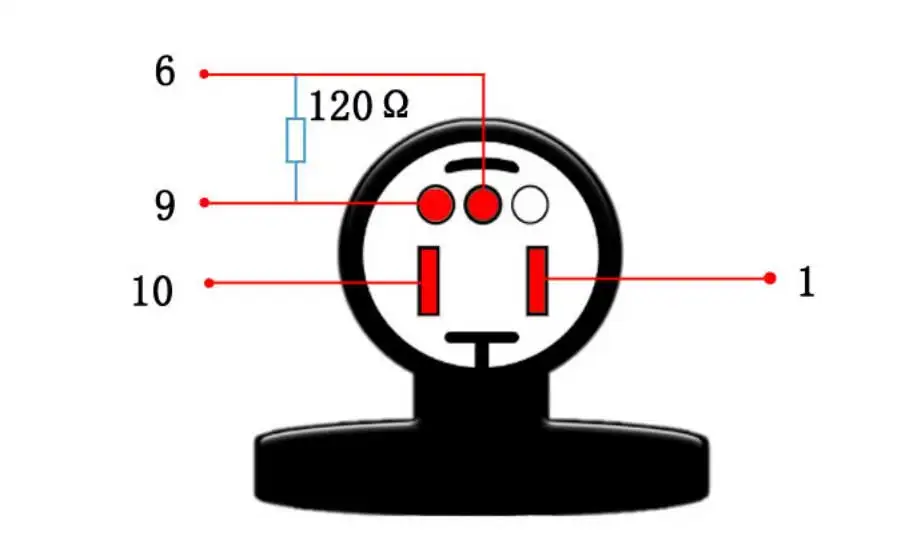

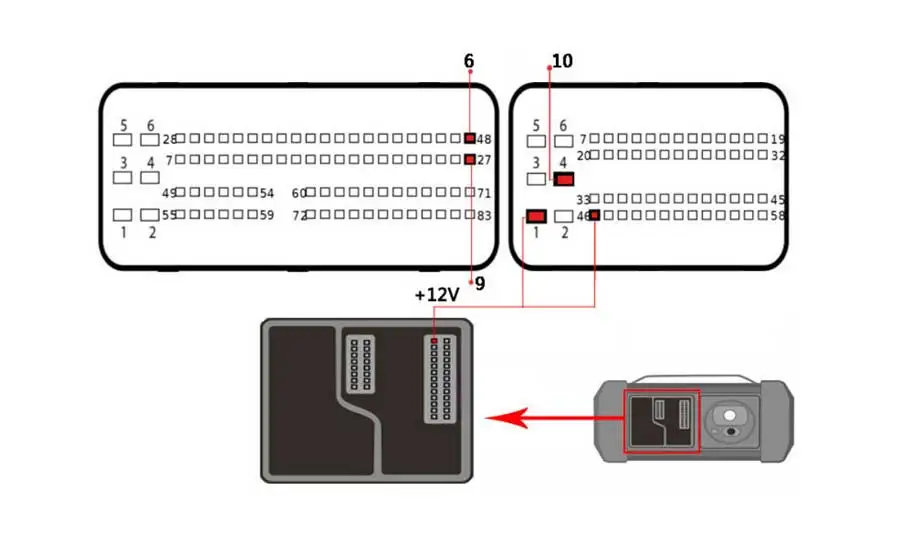

1. Use the BENCH mode to clone the ECU module, when the 120 ohm resistor is connected as shown in Figure 1, or when the +12V power supply is connected to the IMMO programmer board; the IMMO programmer MCU3 adapter board (with its own power supply) can be used,as shown in Figure 2.
Figure 1:
