SKU : ELM327 USB
Category : OBD To USB Device
Top 4 Reasons to Get Plastic USB ELM327:
1: Latest ELM327 includes PIC25K80 and CH340T.
2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.
3: Designed for FOR-Scan software, compatible with software venders; for FOR-Scan, for Elmconfig, for FF2 and for FoCCCus, plus more.
4: Support Windows XP and WIN7 32bite.

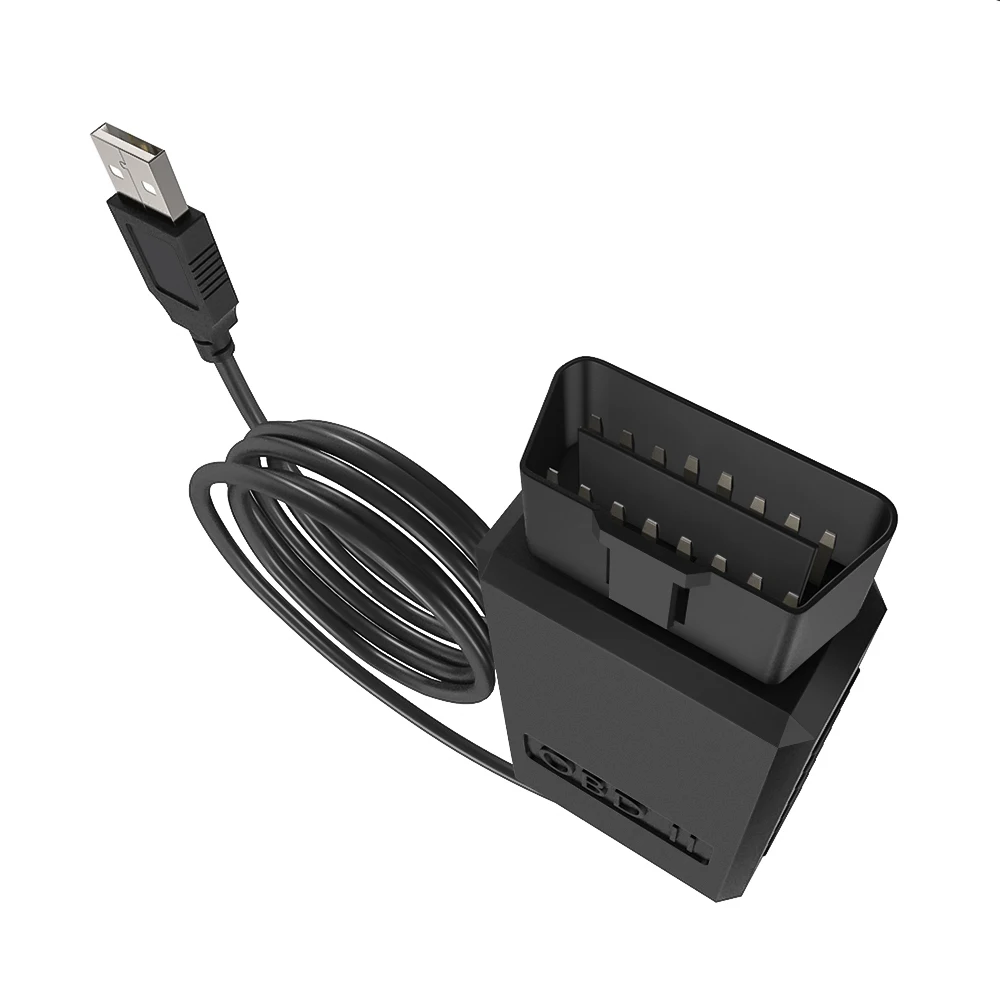

ELM327 USB Diagnostic Cable With Switch Connect to MS CAN bus and HS CAN bus Support for FOR-Scan
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2 (5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250*Kbaud)
CAN (11*bit ID, 125*Kbaud)
CAN (11*bit ID, 50*Kbaud)
Introduction:
With the cable and the one of the supported software vendors you can detected modules which are not visible for regular
OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.
Basic Features:
Reset fault /trouble codes / parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models
Pin Configurations:
Switch position one: HS CAN - Occupies pins 6 and 14
Switch position two: MS CAN - Occupies pins 3 and 11
Supported Software:
For FOR-Scan
For Elmconfig
For FoCCCus
For FF2
Plus more
ELM327 USB Diagnostic Cable With Switch Connect to MS CAN bus and HS CAN bus Support for FOR-Scan

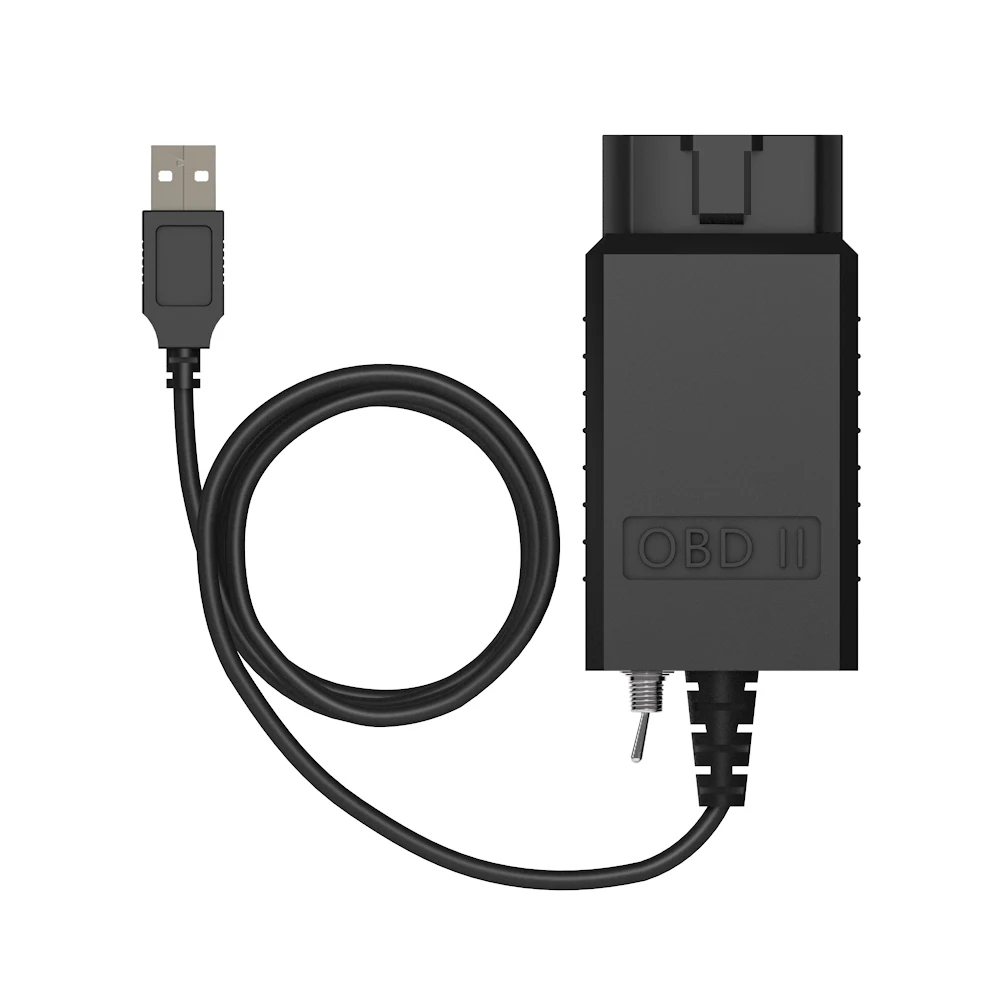

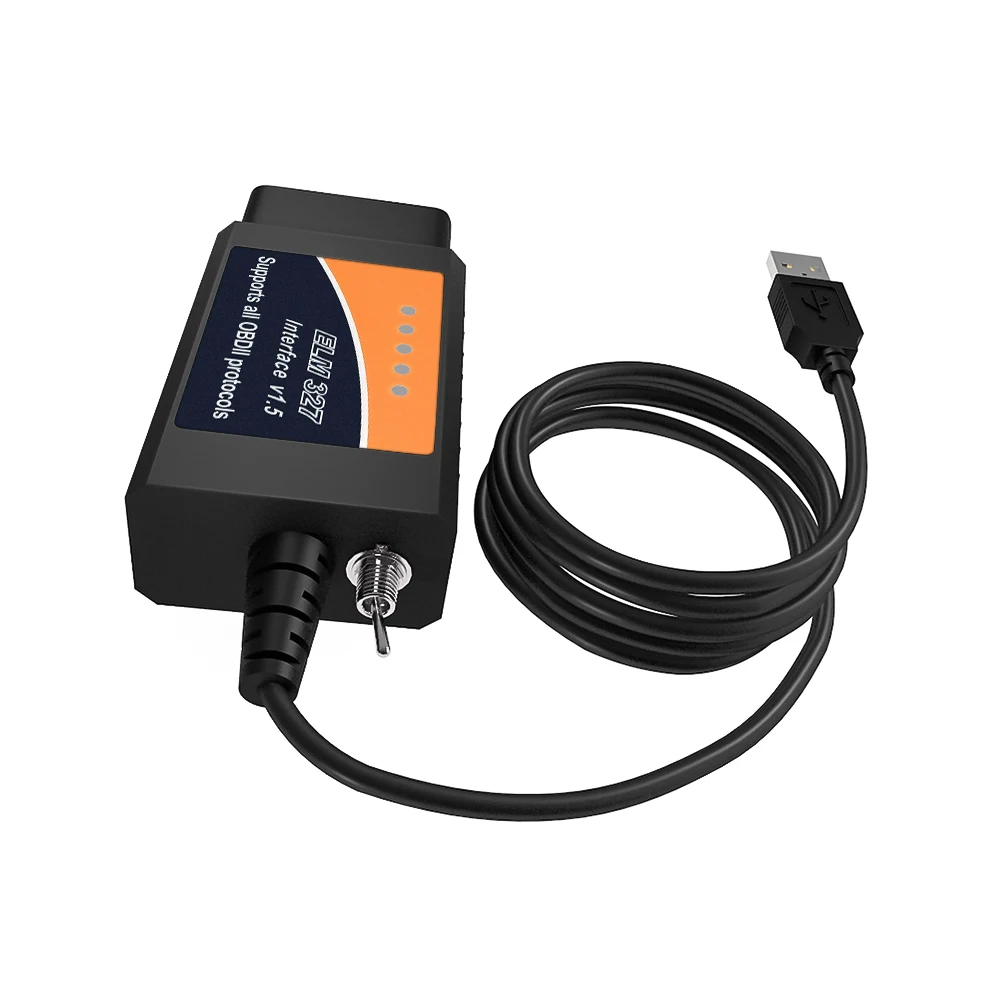

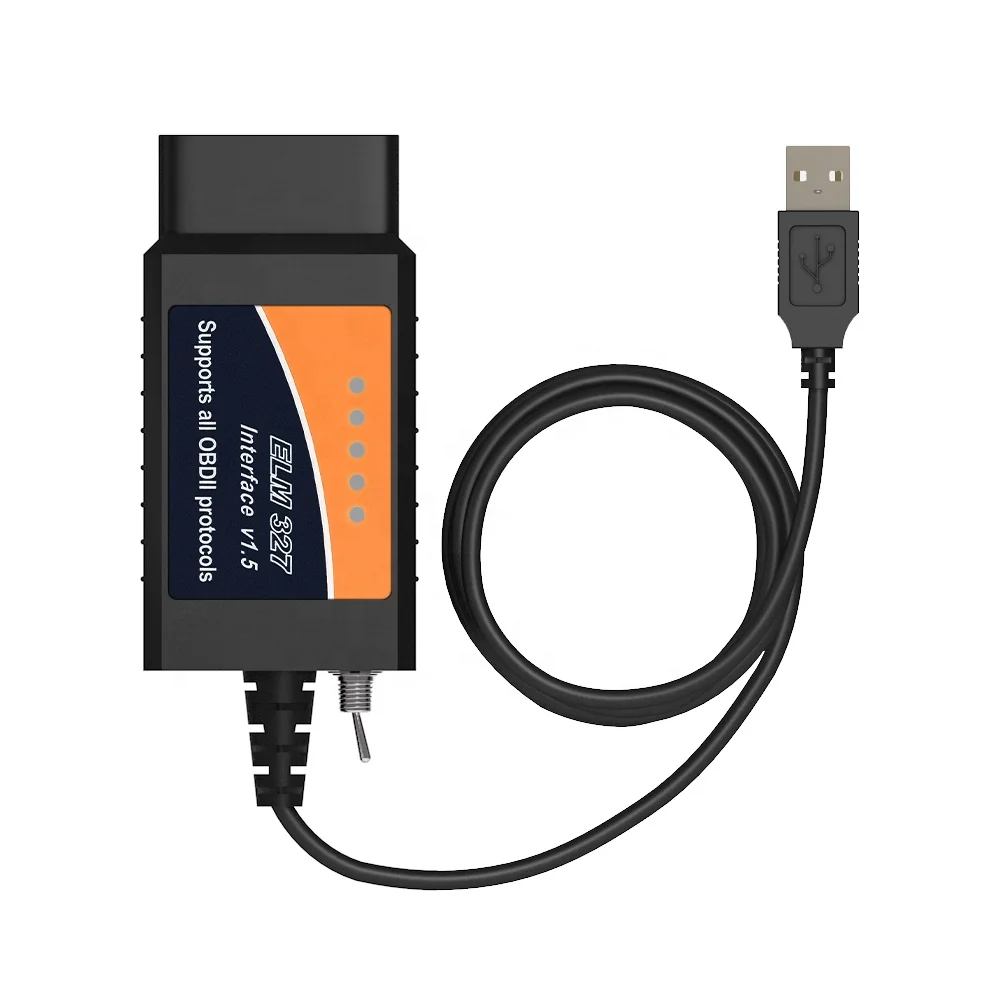

ELM327 USB Diagnostic Cable With Switch
Please note that many models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.
ELM327 supports HS CAN from the stock, because for HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.
Supported Vehicles:
Many vehicles that can be addressed using an ELM via an OBDII connector.

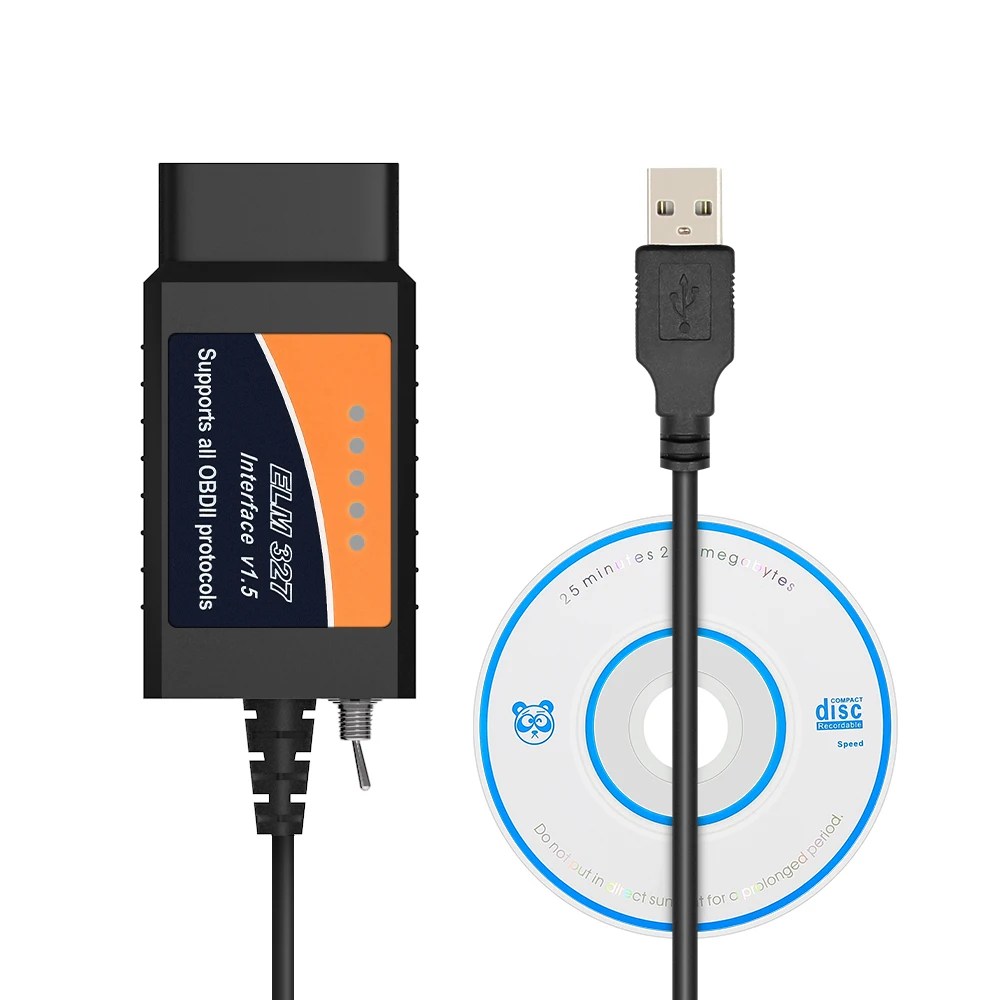

ELM327 USB Diagnostic Cable With Switch
