New LED BDM Frame Multi-function Car ECU Brush Writing Test Stand Support ECU Programmer tool

Multi-function car ECU brush test stand

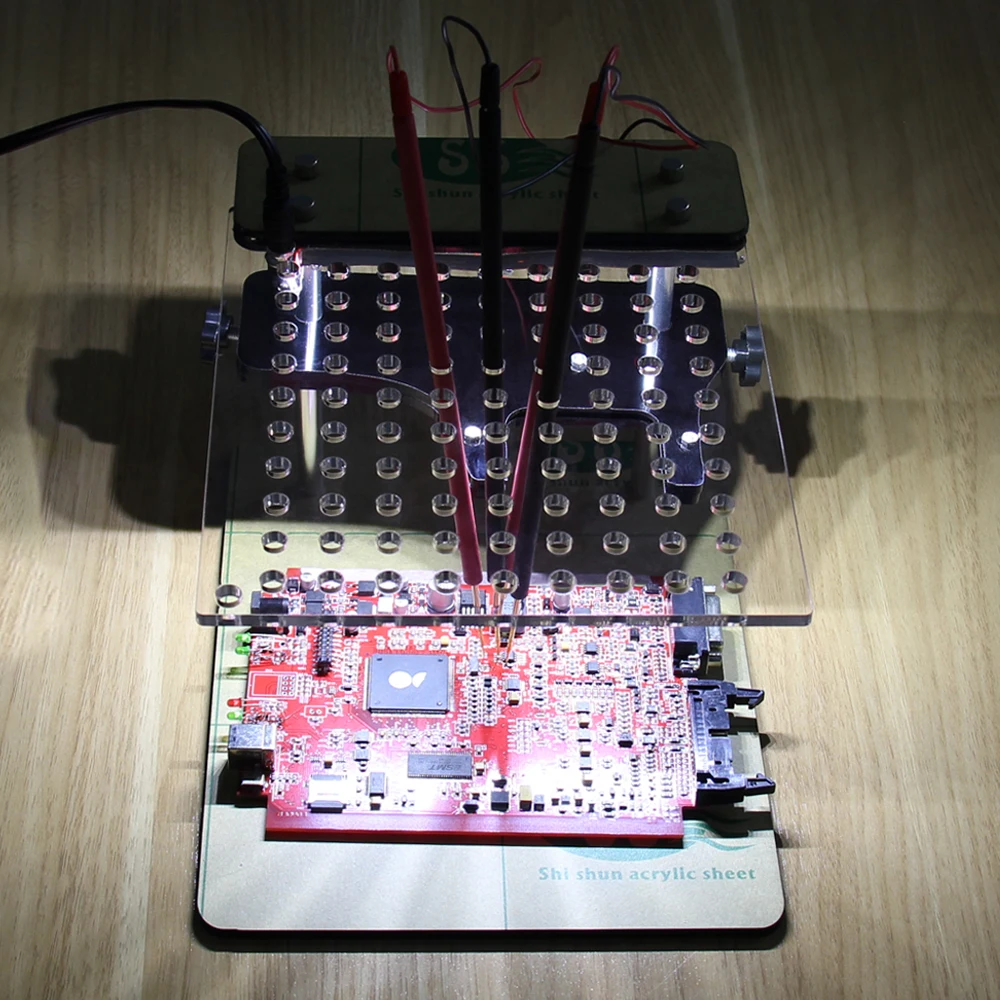

The upgraded version of the multi-function car ECU brush writing test stand can be installed with a quick programming adapter plate, which is convenient for the user to connect to the ECU's quick programming interface, and realize the ECU brush writing programming quickly and stably. It can be perfectly matched with mainstream devices such as KES

The upgraded version of the multi-function car ECU brush test stand function can be widely used in car ECU brush write data, tool modification upgrade programming, car key read and write programming, remote control programming, VVDl programming and other test functions.

New BDM FRAME Set Fit Original FGTECH

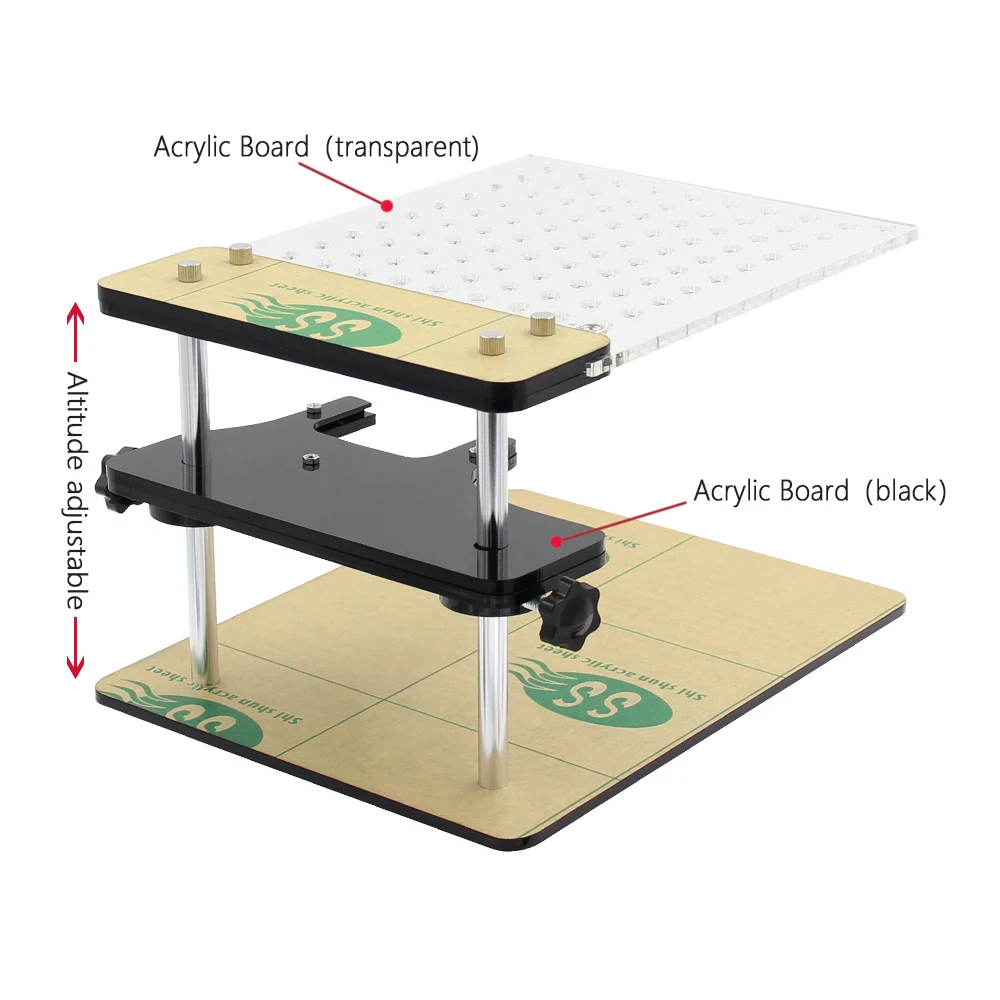

New BDM FRAME Set made from hight quality Plexiglass ,can use on BDM100 programmer , CMD,ETC. )

It works for fgtech and bdm100 programmer . ECU chip tool ,ECU tool ktm100

Product parameters

Product Name: Multi-function car ECU brush test stand

Product size: 248*193*151MM

Product weight: 830g

Probe weight: 49g (49*4)

Total probe length: 230mm

LED lamp voltage: DC 12V

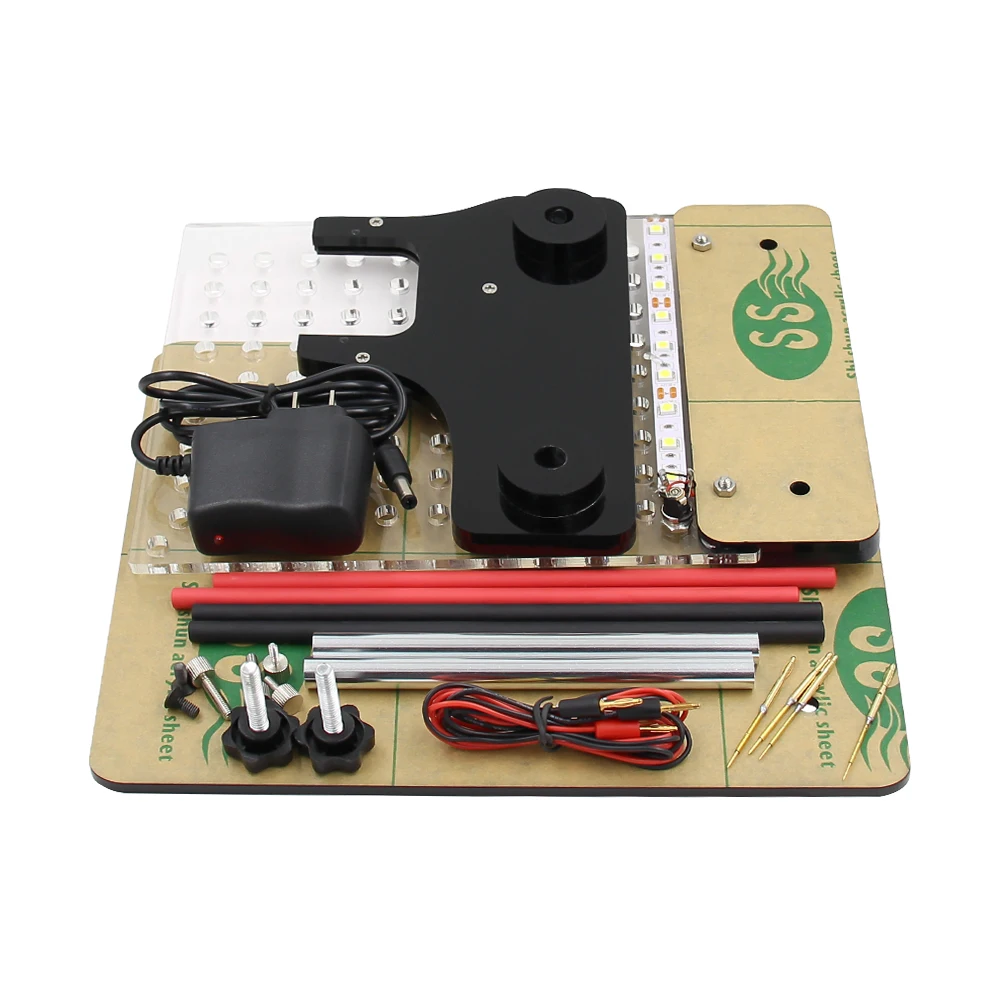

Standard configuration list

1. A main test stand (assembly)

2. 4 copper needles (two red and two black)

3. 4 connecting lines (two red and two black)

4. 4 probes (two fine needles and two thick needles)

5. Power adapter one (12V 500MA)

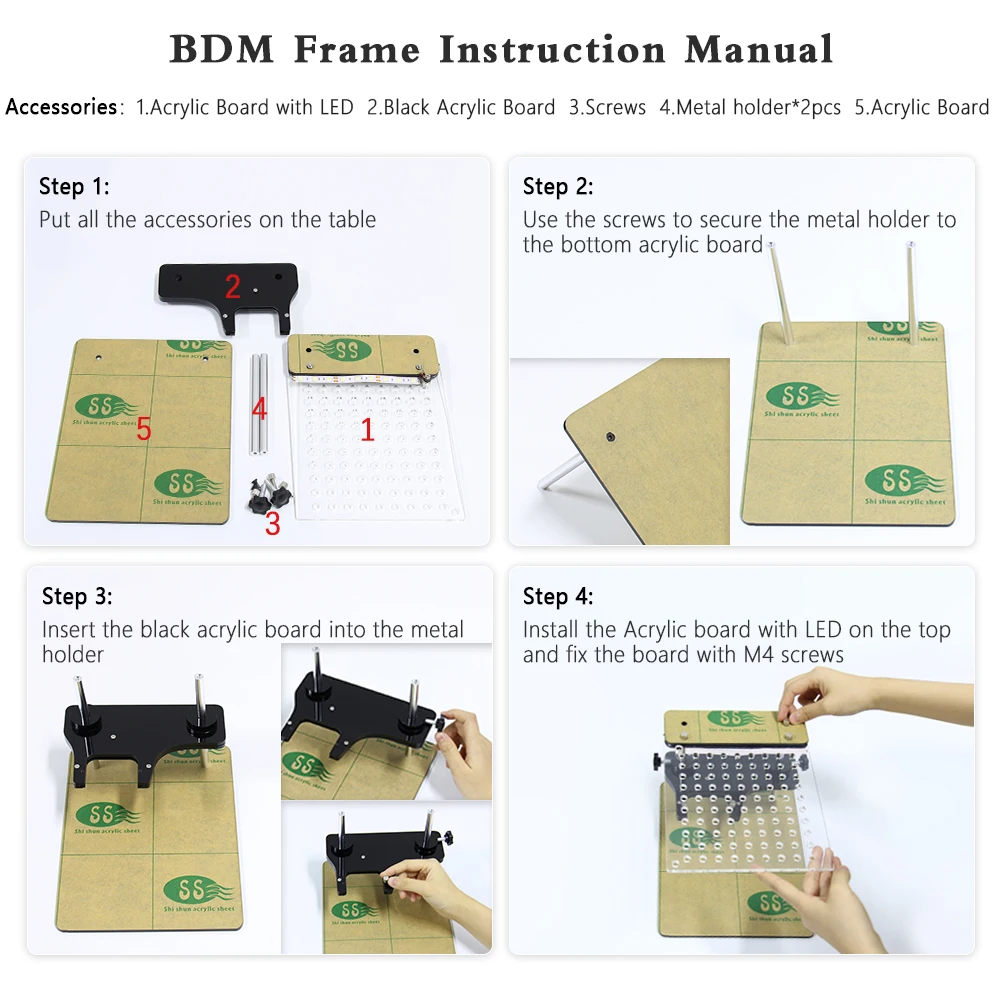

6. Installation instructions

Attention :this is only bdm frame , it use for ECU programmer tool. if you want the ecu tool , pls tell us , this product don't include k-tag product.

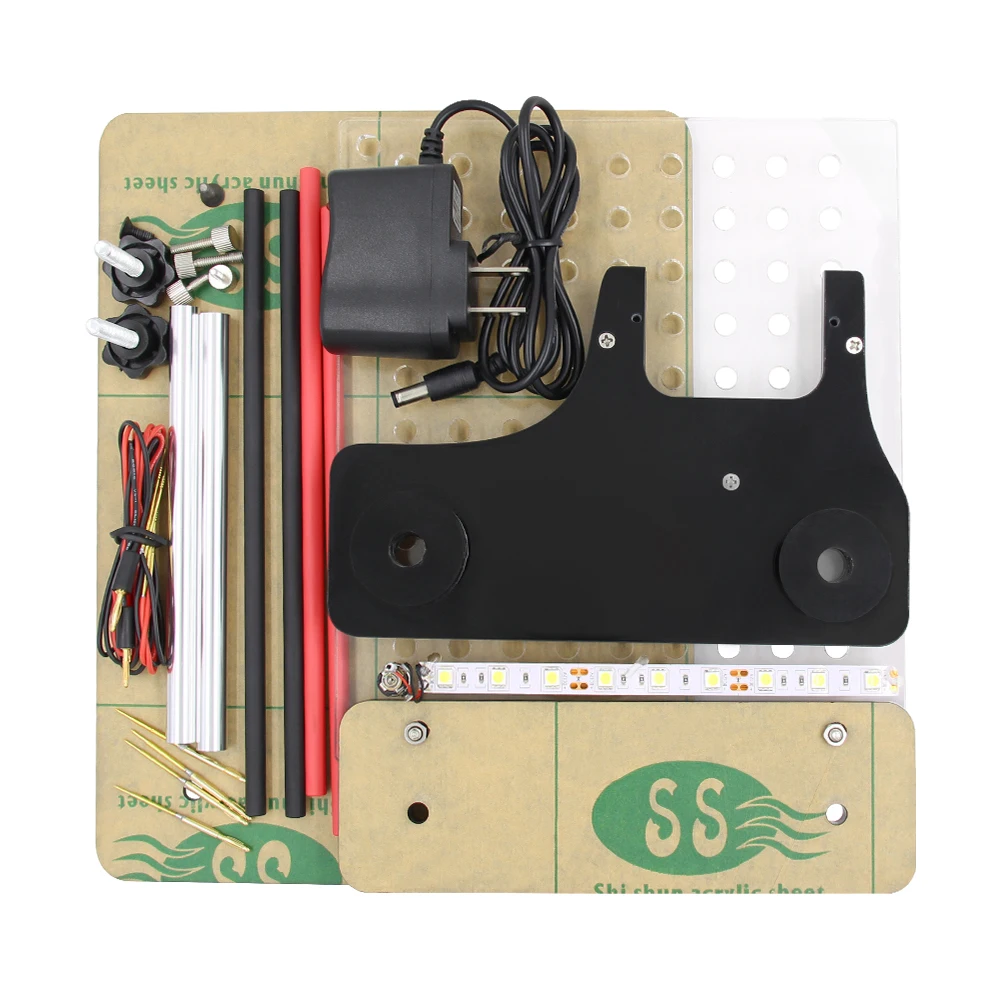

Package including:

1pc x BDM frame 1pc x Bdm frame with LED (Made by a Acrylic board) 4pc x Cable for Probes 4pc x Probes
